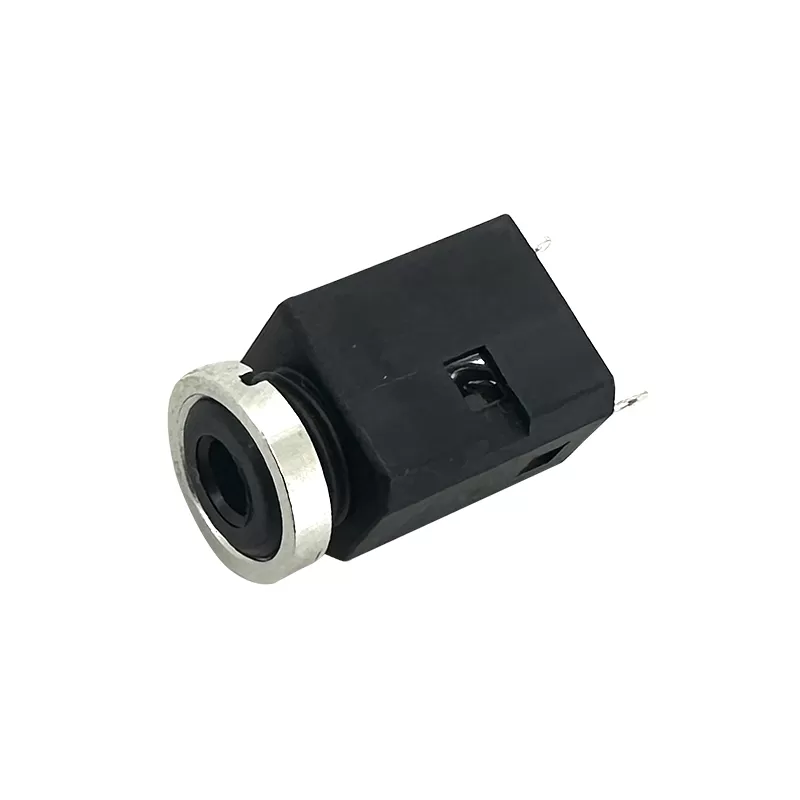

3.5mm Audio Jack：RHTAYG3.5-004

Series P/N: RHTAYG3.5-004

3.5mm phone jack audio connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of 3.5mm phone jack audio connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-Size: Relatively small in diameter, making it suitable for compact devices such as smartphones, laptops, tablets, MP3 players, and portable audio equipment.

-Versatility: Supports stereo audio signals (left and right channels) and can also carry mono audio or audio with an integrated microphone (TRRS - Tip-Ring-Ring-Sleeve).

-Durability: Designed for frequent insertion and removal cycles, making it durable for consumer electronics use.

-Compatibility: Widely adopted across a broad range of consumer electronics and professional audio equipment due to its standardized size and connection configuration.

Applications

1.Computers and Laptops

2.Automotive Applications

3.Professional Audio Equipment

4.Communication Devices

Specifications

Technical parameters:

Rated voltage:DC 30V

Rated current: 0.5A

Contact resistance:0.03Ω max

Insulation resistance:100MΩ (DC250V)

Withstand Voltage:500VAC
