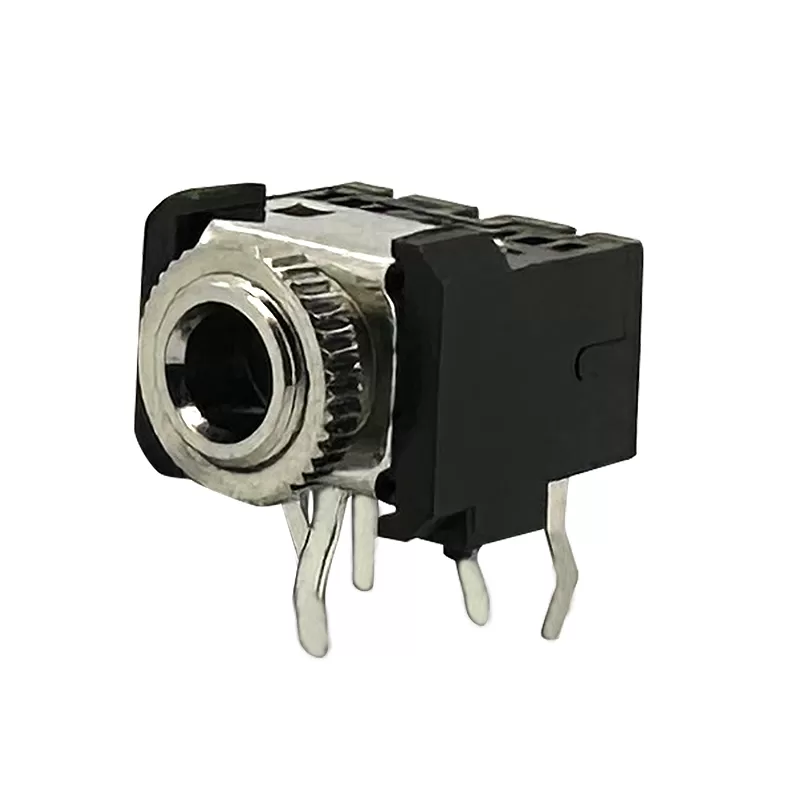

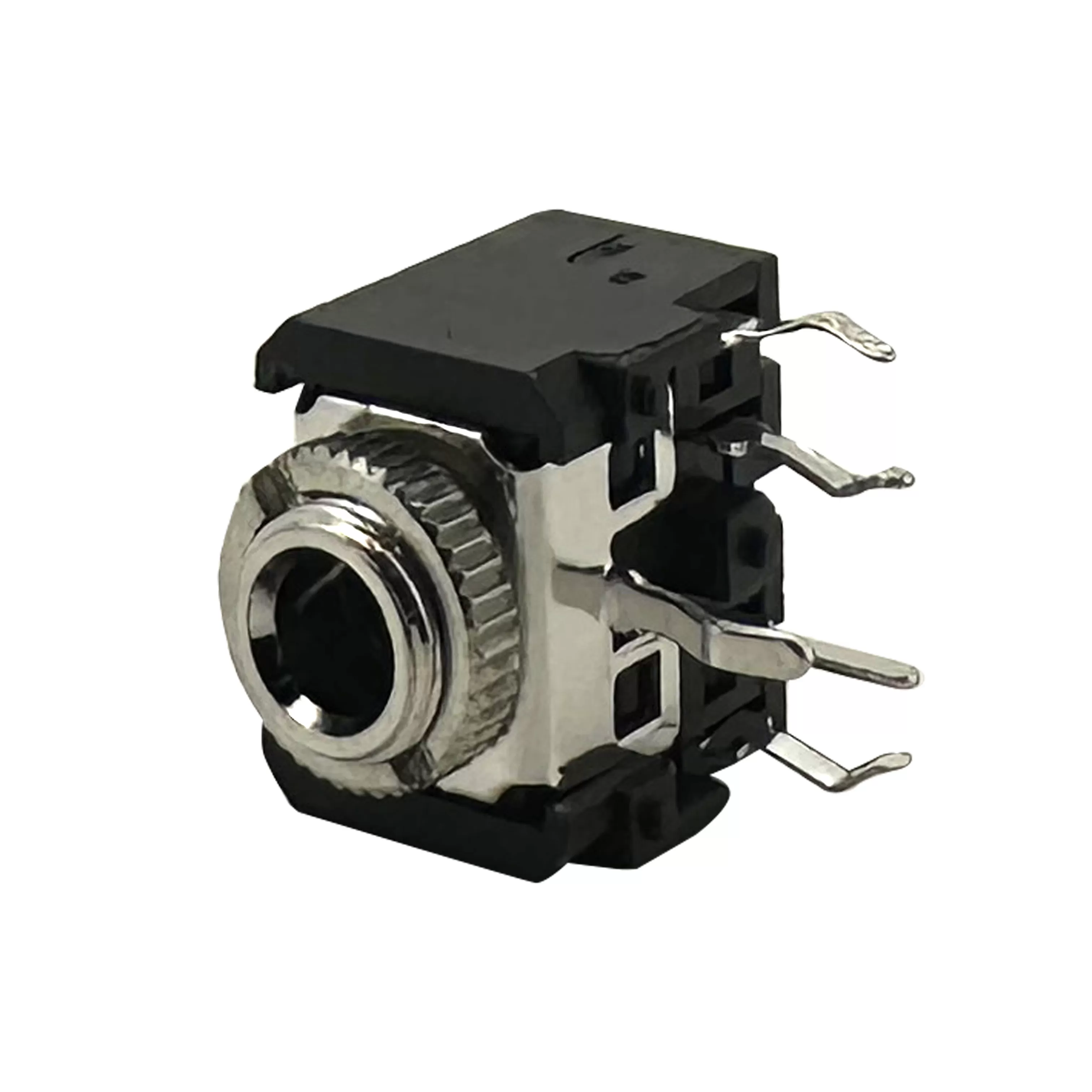

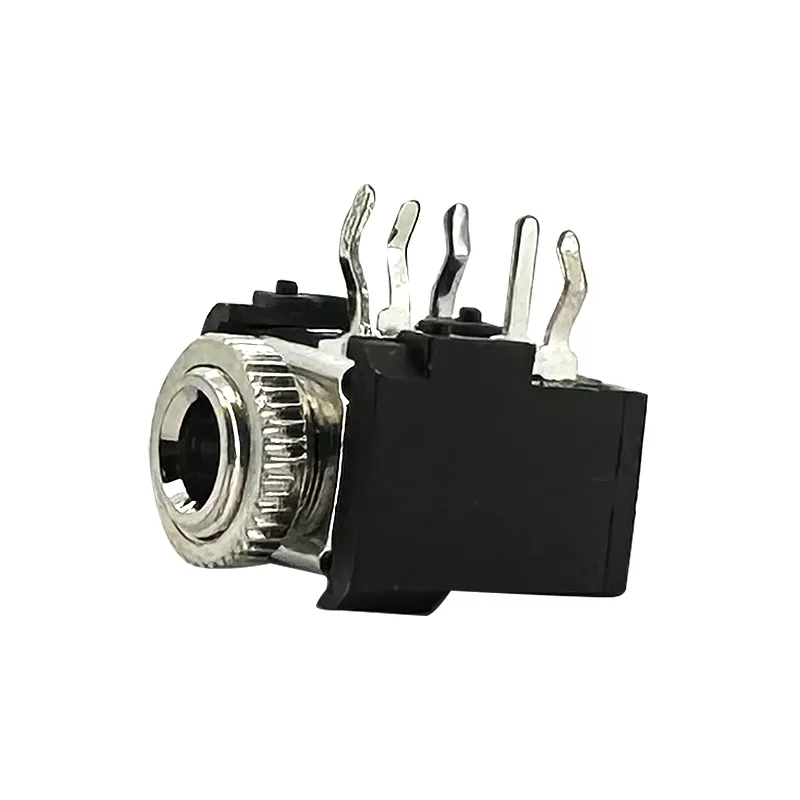

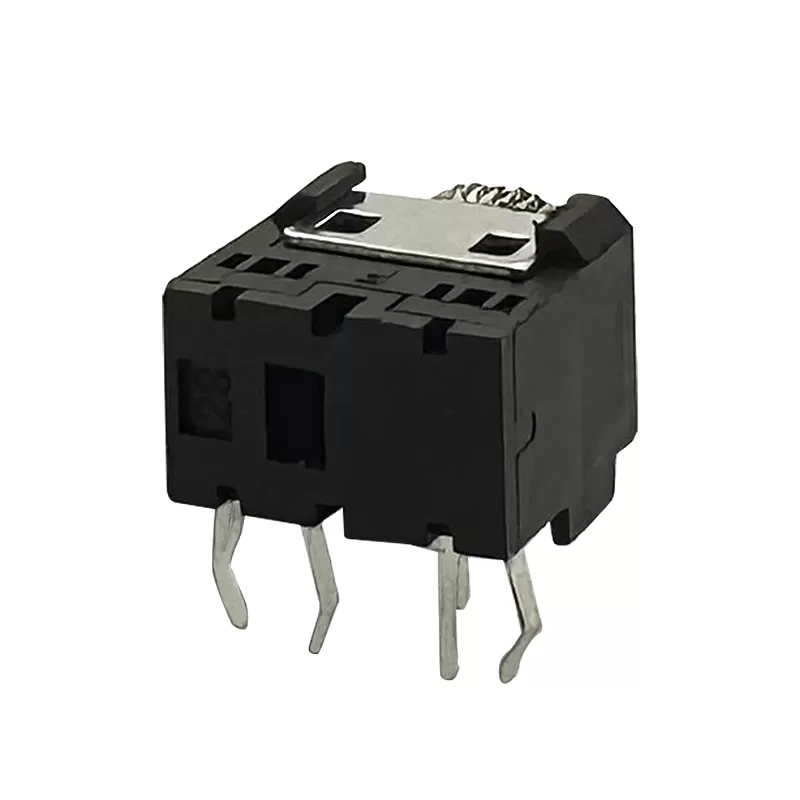

3.5mm Stereo Phone Jack:RHTAYSJ3.5-003A

Features

-Durability: Generally designed for repeated use, but can wear down over time, especially with frequent plugging and unplugging.

-Versatility: Used for headphones, microphones, and auxiliary audio connections.

-Size and Shape: The jack is 3.5mm in diameter, with a cylindrical shape.

-Polarity: It typically has three or four sections (conductors):

TRS: Tip, Ring, Sleeve (3.5mm stereo for left and right audio).

TRRS: Tip, Ring, Ring, Sleeve (includes a microphone channel).

Applications

1.Laptops and Computers

2.Portable Audio Players

3.Car Audio Systems

4.Home Audio Systems

Specifications

Technical parameters:

Rated voltage: DC 30 V

Rated current: 0.5 A

Contact resistance: 0.03Ω, max

Insulation resistance: 100MΩ, min

Pressure: AC500V (50Hz) / 1minute

Insertion Force :2-20 N

Life: 50000 times

Operating Temperature:-30ºC~+70ºC

Material:

Terminal 1 : Cold Rolled Steel

Terminal 2 : Copper Alloy

Terminal 3 : Copper Alloy

Terminal 10: Brass

Terminal 11: Brass

Bushing : Brass

Spring : Copper Alloy

Housing : PBT

Cover : PTB
