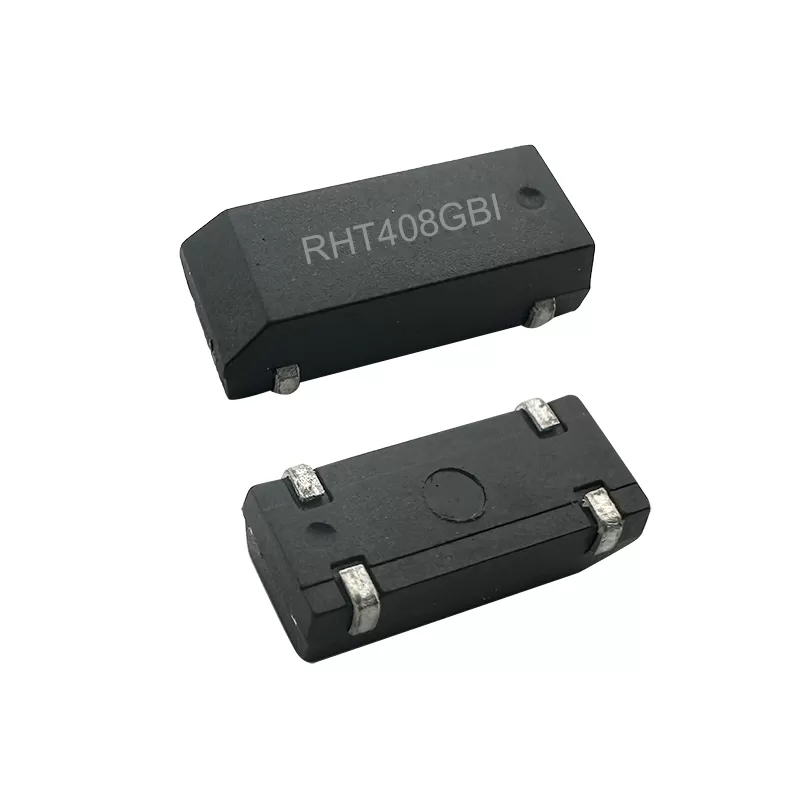

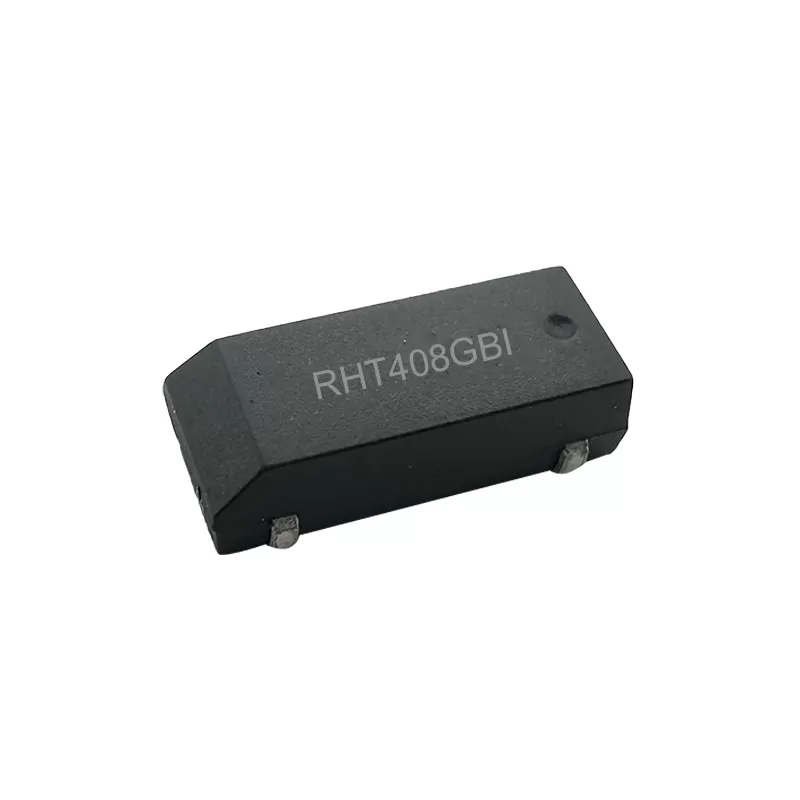

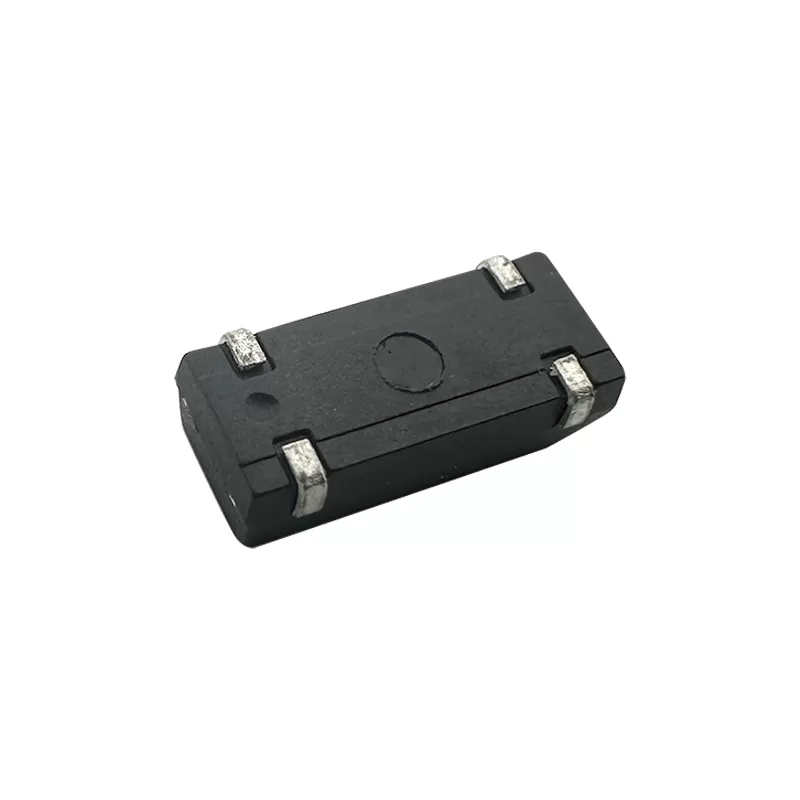

    32.768KHz Crystal Units 8.0x3.8x2.4mm SMD:RHTNYC306

    Series P/N: RHTNYC306

    32.768KHz Crystal units is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of  32.768KHz Crystal units. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -32.768 kHz is the standard frequency for real-time clock (RTC) applications, commonly used in embedded systems, clocks, and watches.

    -SMD (Surface-Mount Device): It’s designed for easy mounting directly onto a PCB (printed circuit board), suitable for automated assembly processes.

    -The drive level is the power supplied to the crystal to excite it to oscillate. It's generally low for 32.768 kHz crystals, often around 1 µW to 100 µW.

    -Typically, crystals have an aging rate of ±5 ppm/year or less, meaning the frequency may shift slightly over time due to factors like temperature and stress.


    Applications

    1.Real-Time Clocks

    2.Wearables and IoT Devices

    3.Automotive Electronics

    4.Communication Devices


    Specifications

    Dimensions(8.0x3.8x2.4mm)

    Nominal frequency range:32.768KHz

    Crystal cut:Fundamental [AT-cut]

    Storage temperature range:-55°C~+125°C

    Operating temperature range:-40°C~+85°C

    Turnover temperature:-25±5℃

    Parabolic coefficient:-0.04x10-6/℃2 Max.

    Frequency tolerance(at+25°C):±20x10-6.or specify

    Equivalent series resistance:50KΩ max.

    Load capacitance:12.5pF,or specify

    Shunt capacitance:0.9pF max.

    Level of drive:1.0μw max.

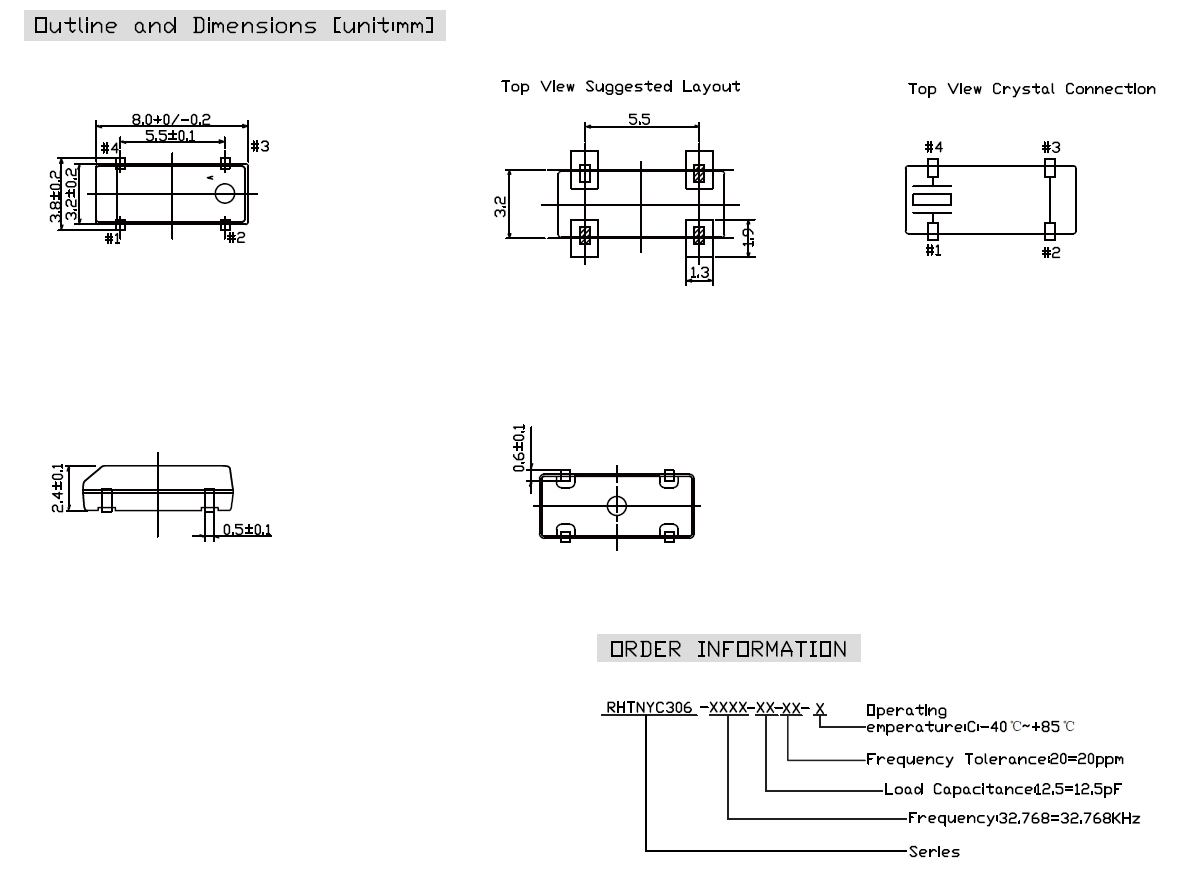

    Outline and Dimensions [unit:mm]
    32.768KHz Crystal Units 8.0x3.8x2.4mm SMD:RHTNYC-306
