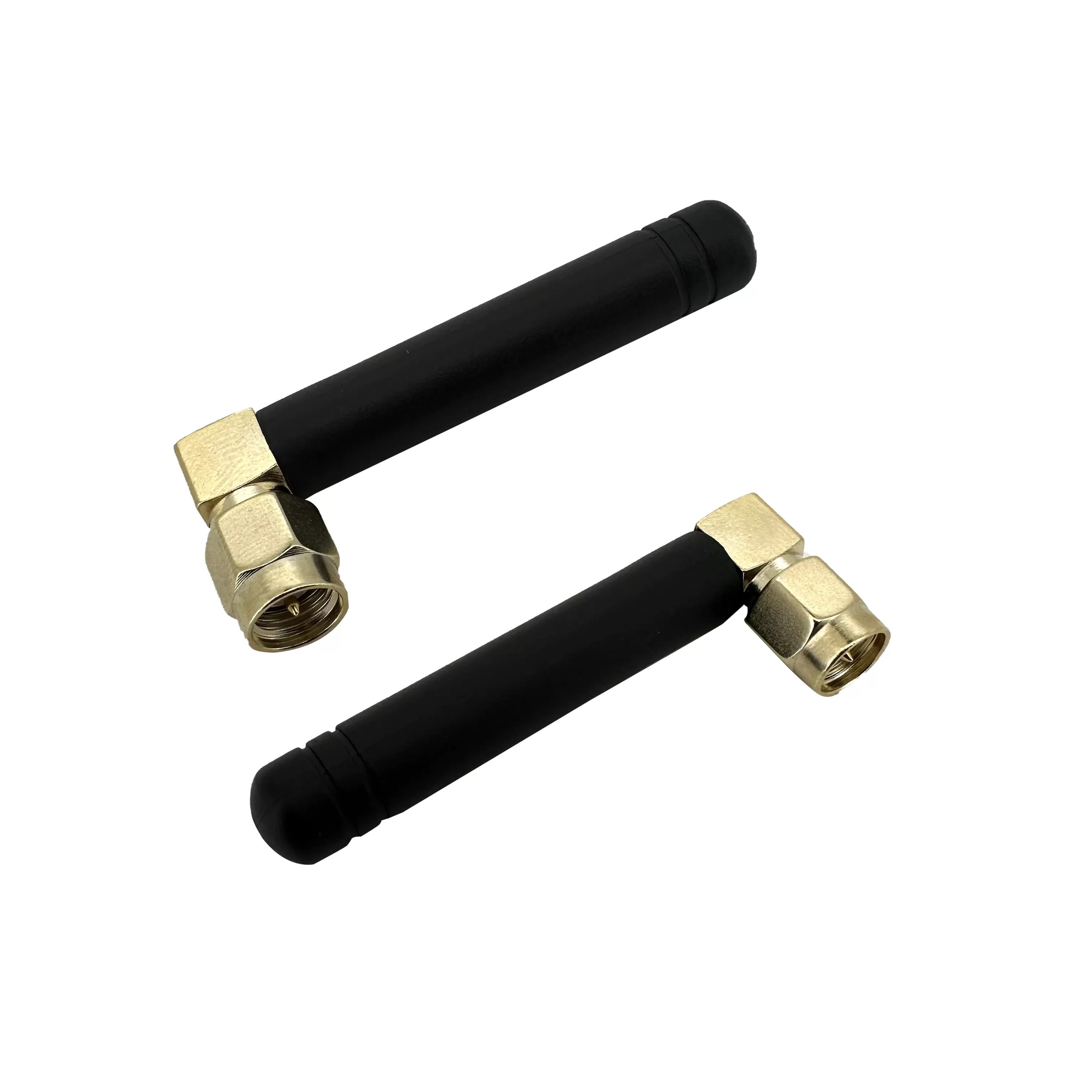

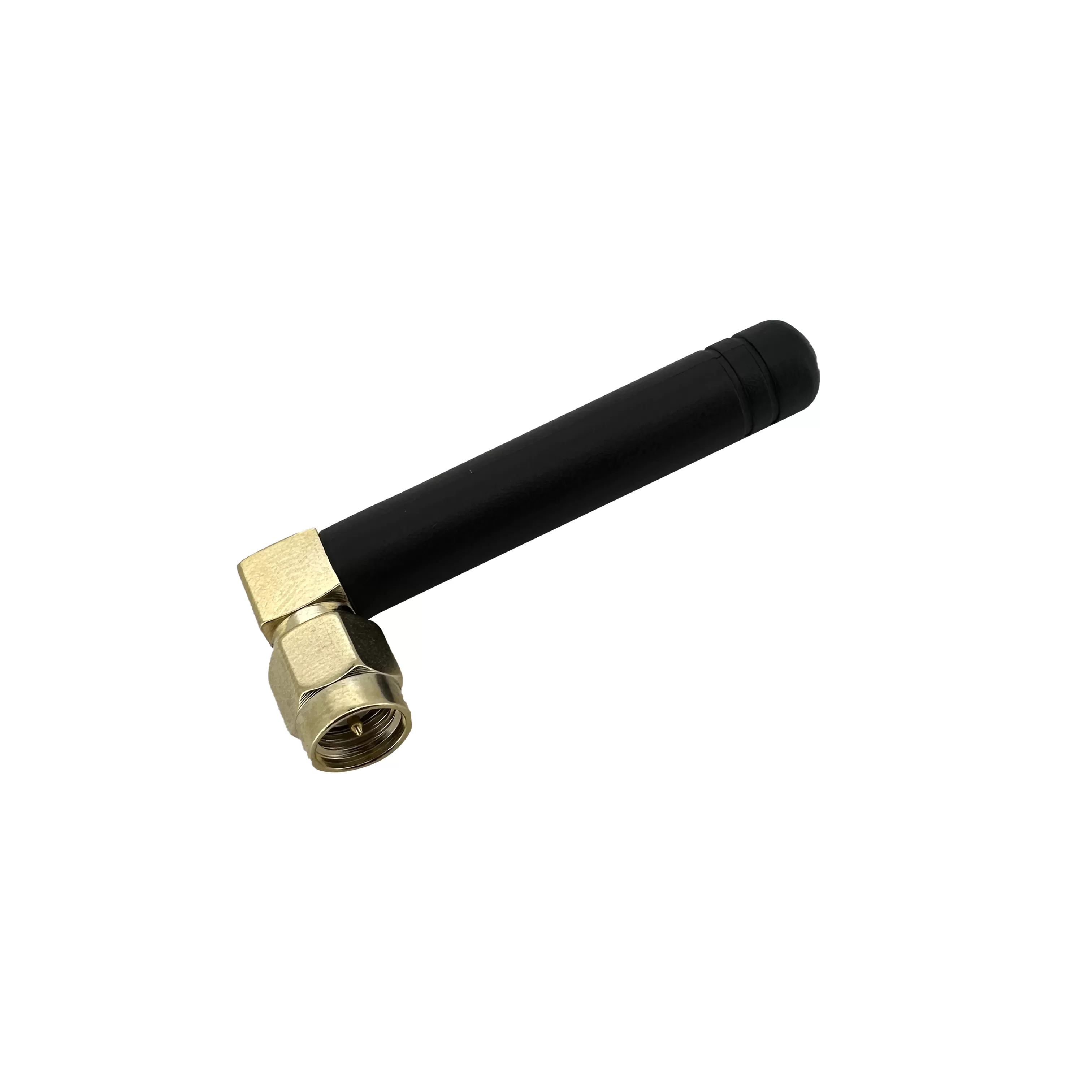

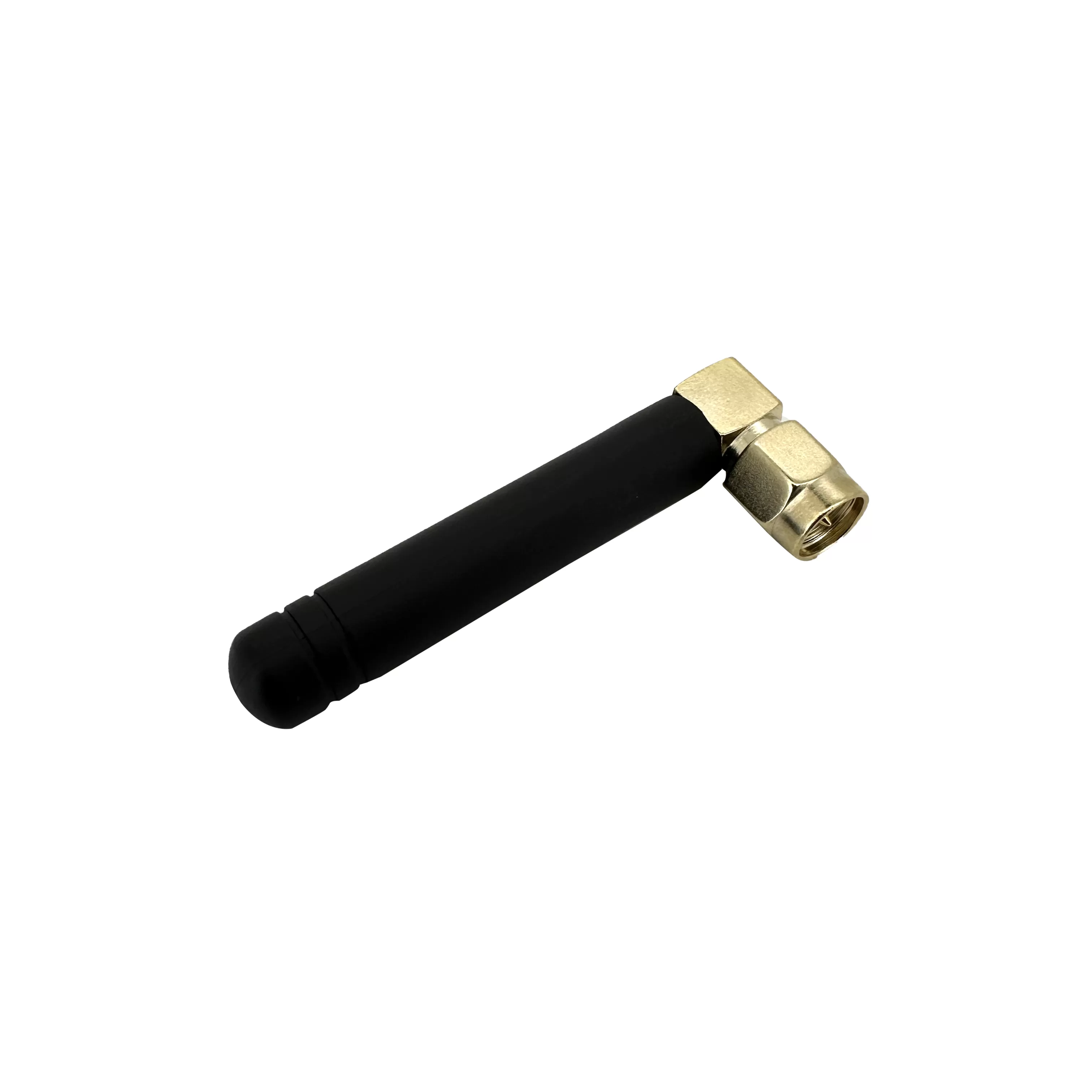

433Mhz Antenna:RHTAY3307

Series P/N: RHTAY3307

433/868/915MHz antennas is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of 433/868/915MHz antennas. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Frequency Band: Designed specifically for the 433MHz ISM (Industrial, Scientific, and Medical) band, which is widely used for short-range communication applications.

-Antenna Type: Often a simple monopole antenna or a dipole antenna designed to operate efficiently at the 433MHz frequency.

-Gain: Typically has a low to moderate gain suitable for short-range communication, providing adequate signal strength without excessive power consumption or interference.

-Omni-directional Radiation Pattern: Provides coverage in all directions horizontally, making it suitable for applications where signals need to be received from various angles.

Applications

1.Telemetry and Remote Control in Vehicles

2.Short-range Data Communication

3.Environmental Monitoring

4.Radio Frequency Identification (RFID)

Specifications

Frequency : 433±10MHz

Gain : 2dBi

Vswr : 2.0 Max.

Impedance : 50 Ω

Polarization : Vertical

Radiation : OMNIDIRECTIONAL
