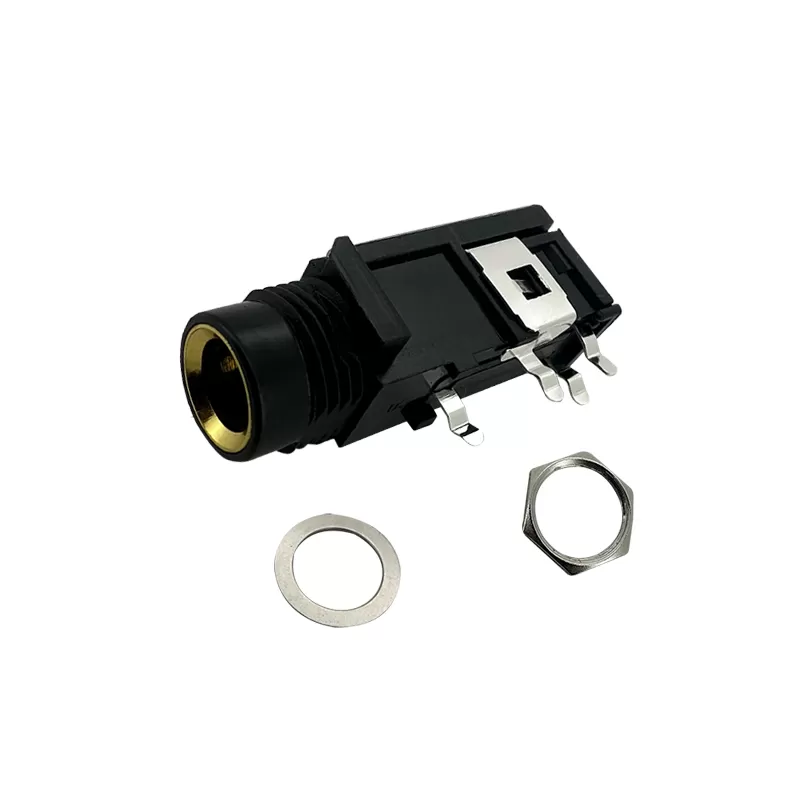

6.3mm Phone jack :RHTAYG6.3-008A

Series P/N:RHTAYG6.3-008A

6.3mm phone jack audio connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of 6.3mm phone jack audio connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Durability: Designed to withstand frequent plugging and unplugging without compromising signal integrity. Some jacks may feature robust construction and strain relief to prevent cable damage near the jack.

-Versatility: Supports a wide range of audio signals, from line-level signals to instrument-level signals, making it suitable for various professional and consumer audio applications.

-Color Coding: Often available in different colors (e.g., black, silver), particularly for stereo jacks, to indicate channel assignments (e.g., left, right, ground).

-Standardization: Widely adopted in the audio industry, ensuring compatibility across different brands and types of audio equipment equipped with 6.3mm phone jacks.

Applications

1.Musical Instruments

2.Amplifiers and Audio Interfaces

3.Headphones and Headphone Outputs

4.Mixing Consoles and Patch Bays

Specifications

6.3mm Phone jack

Technical parameters:

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ min at DC 500V

Dielectric Withstand voltage: AC 500V for one minute

Technical Documents
