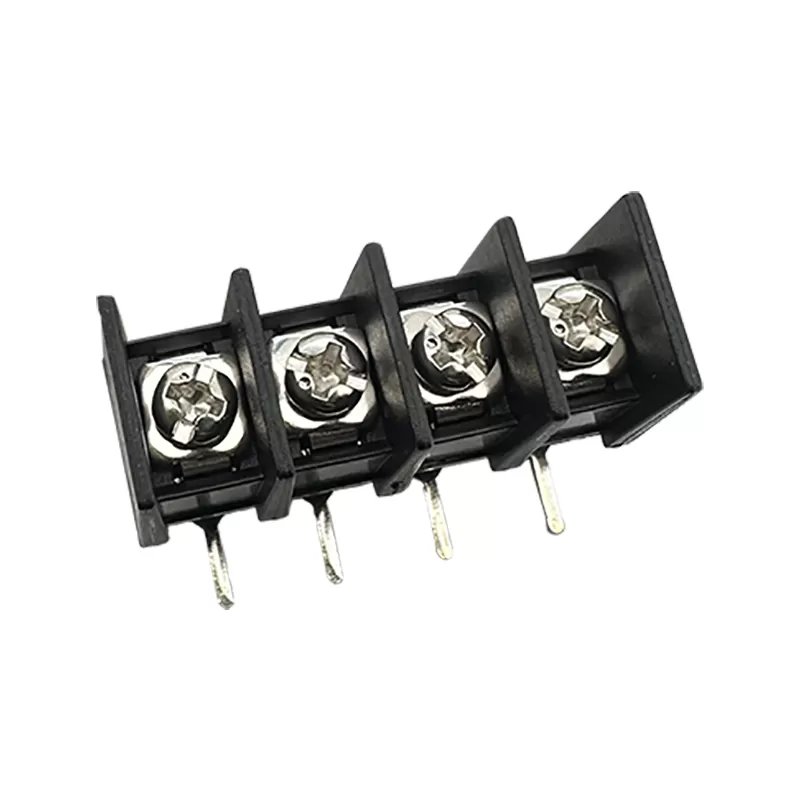

8.25mm without Mount Hole Barrier Terminal Block Right Angle Pin ：RHTBY5R-8.25

Series P/N: RHTBY5R-8.25

Barrier terminal blocks is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Barrier terminal blocks. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Material: Terminal blocks are typically made from materials such as nylon or thermoplastic for insulation and conductive parts made of materials like copper alloy or brass. This construction ensures durability and good electrical conductivity.

-Wire Size Compatibility: Specifies the range of wire sizes (usually in AWG or mm²) that can be accommodated by the terminal block. This ensures compatibility with various wiring needs, allowing for flexibility in wire selection.

-Right-Angle Pin Configuration: The right-angle pins allow the terminal block to be mounted at a right angle to the PCB (Printed Circuit Board). This configuration is useful for applications where space is limited or where a specific orientation of the terminal block is required.

-Mounting Style: Designed for PCB mounting, these terminal blocks typically do not have integrated mount holes but rely on surface mounting techniques such as through-hole soldering or surface mount soldering.

Applications

1.Printed Circuit Boards (PCBs)

2.Industrial Control Panels

3.Power Supplies and Distribution

4.Telecommunications Equipment

Specifications

Electrical

Voltage rating : 300V

Current rating : 15A

Contact Resistance: 20mΩ

Insulation Resistance: 500MΩ/DC500V

Withstanding Voltage: AC2000V/Min
