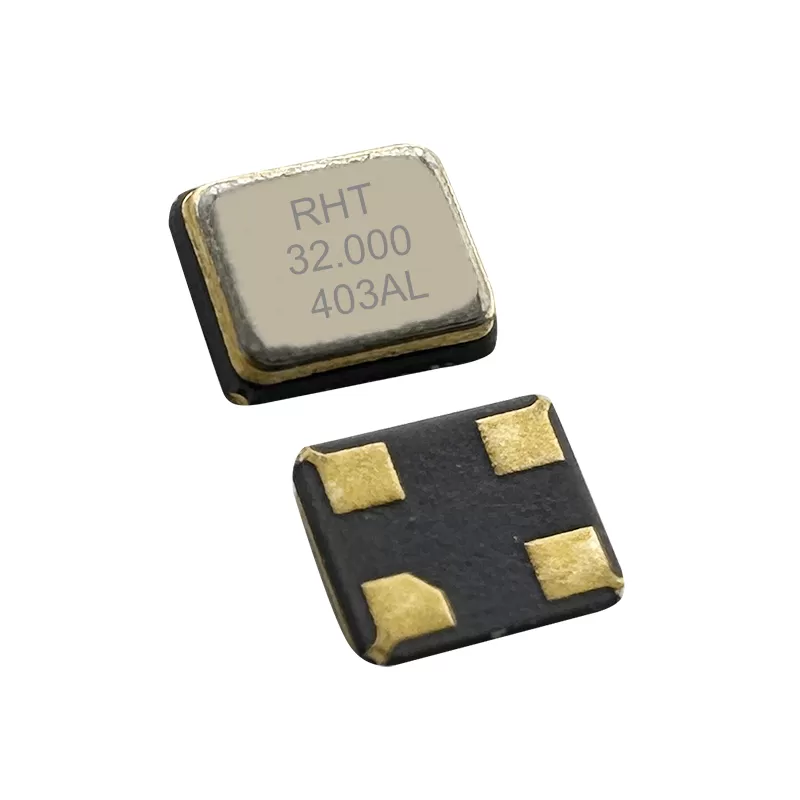

    Crystal Units Ceramic SMD 2.0x1.6x0.55mm:RHTNYC2016

    Series P/N:RHTNYC2016

    Crystal resonators is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of  Crystal resonators. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Temperature Stability: Often includes temperature-compensated cuts or materials to minimize frequency variations across temperature ranges, ensuring reliable operation in various environmental conditions.

    -Aging Characteristics: Exhibits low aging rates, ensuring long-term stability and reliable performance of frequency output over extended periods of use.

    -Shock and Vibration Resistance: Engineered to withstand mechanical stress and environmental factors encountered in various applications, ensuring durability and reliability.

    -Compatibility: Designed for easy surface mounting on PCBs, facilitating straightforward assembly and integration into electronic assemblies during manufacturing.


    Applications

    1.Mobile Devices

    2.Wireless Communication

    3.Consumer Electronics

    4.Automotive Electronics


    Specifications

    Ultra thin/Dimensions (2.0x1.6x0.55)

    Nominal frequency range:16.000-56.000 MHZ

    Storage temperature range:-40℃~+85℃

    Operating temperature range:-10℃~+60℃, -30℃~+85℃

    Frequency temperature characteristics(Ref. to +25°C):±10x10-6,±15x10-6

    Frequency tolerance(at +25C):±10x10-6

    Equivalent series resistance:Please Refer to the Following ESR Table

    Load capacitance:8pF, 12pF

    Shunt capacitance:5pF max.

    Level of drive:10μW (100μW max .)

    Outline and Dimensions [unit:mm]
    Crystal Units Ceramic SMD 2.0x1.6x0.55mm:RHTNYC-2016


    Technical Documents

    Please contact us for more information.Features
