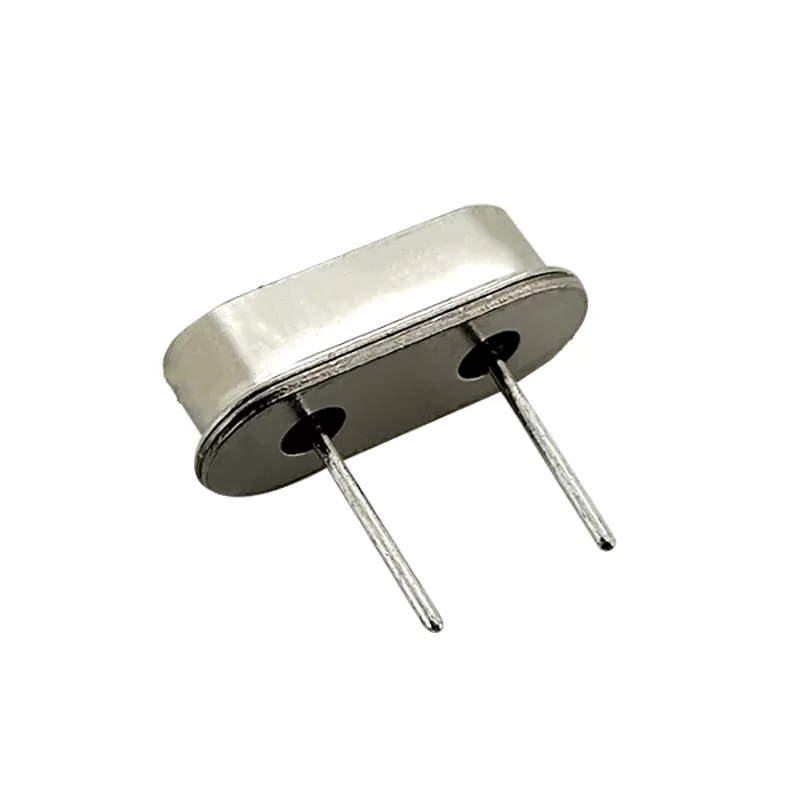

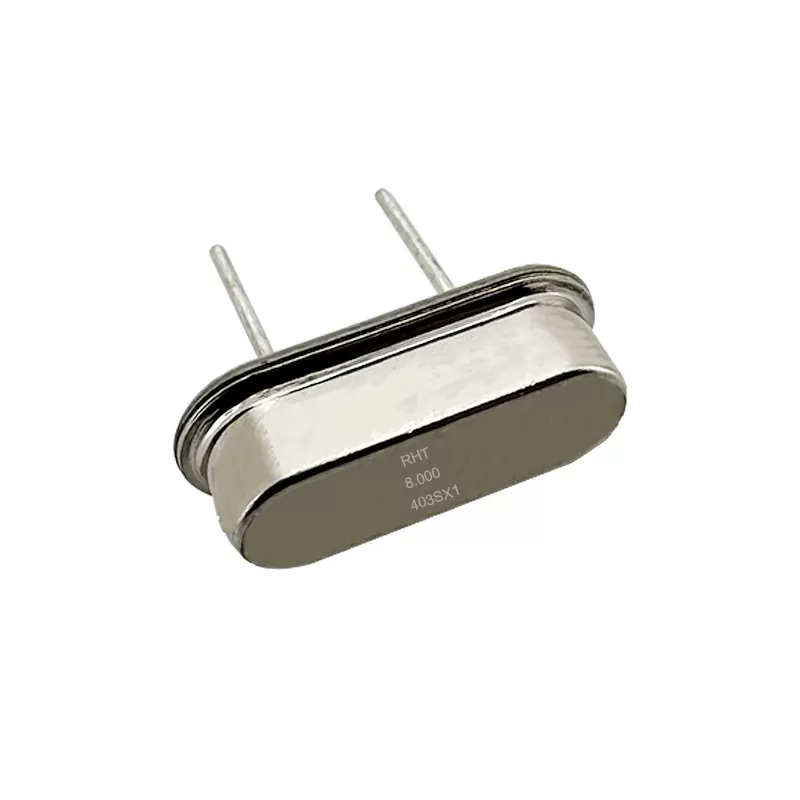

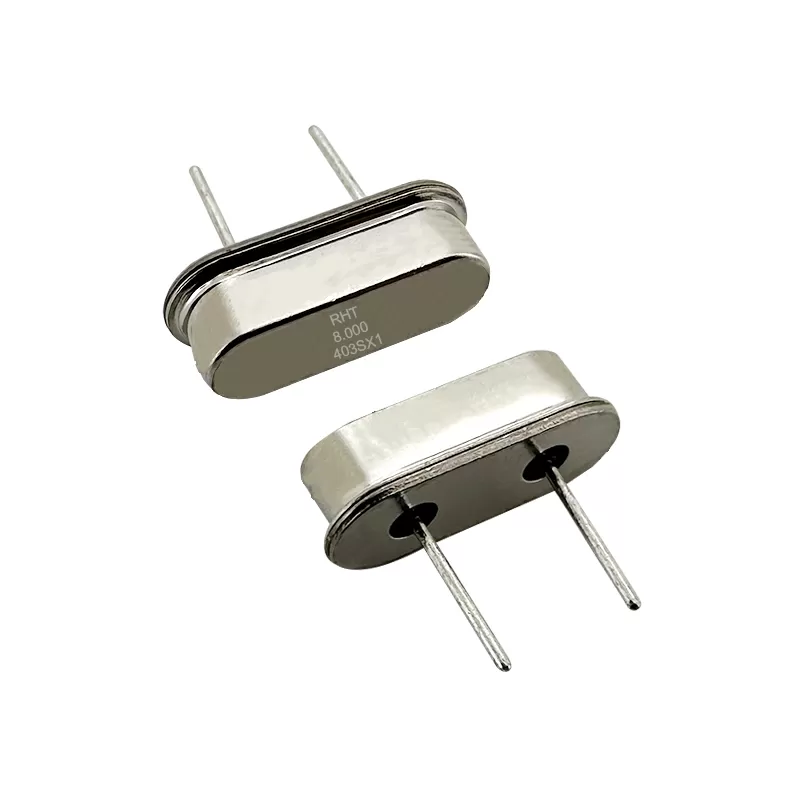

DIP Crystal Resonator:RHTNYC49S

Features

-Oscillation Frequency: Available in various standard frequencies depending on the application requirements, such as 4 MHz, 8 MHz, 12 MHz, etc.

-Stability: Provides stable oscillation with low frequency drift over temperature changes and aging, ensuring reliable performance over time.

-Accuracy: Offers high accuracy in frequency output, crucial for precise timing and synchronization in electronic circuits.

-Temperature Compensation: Some models include temperature-compensated cuts or materials to minimize frequency variations across temperature ranges.

Applications

1.Microcontrollers and Microprocessors

2.Real-Time Clocks (RTCs)

3.Communication Equipment

4.Consumer Electronics

Specifications

Dimensions (11.05x4.65x3.50)

Nominal frequency range:3.500~40.000 MHz,30.000~80.000 MHz

Crystal cut:Fundamental [AT-cut],3rd overtone [AT-cut]

Storage temperature range:-40°C~+85℃

Operating temperature range:-20°C-+70℃,-40℃~+85℃

Frequency temperature characteristics(Ref. to +25°C):±50x10^-6

Frequency tolerance(at +25°C)：±30x10-6

Equivalent series resistance：Please Refer to the Following ESR Table

Load capacitance：series, 16pF, 20pF, 30pF

Shunt capacitance：5pF max.

Level of drive：10μW (100μW max.)

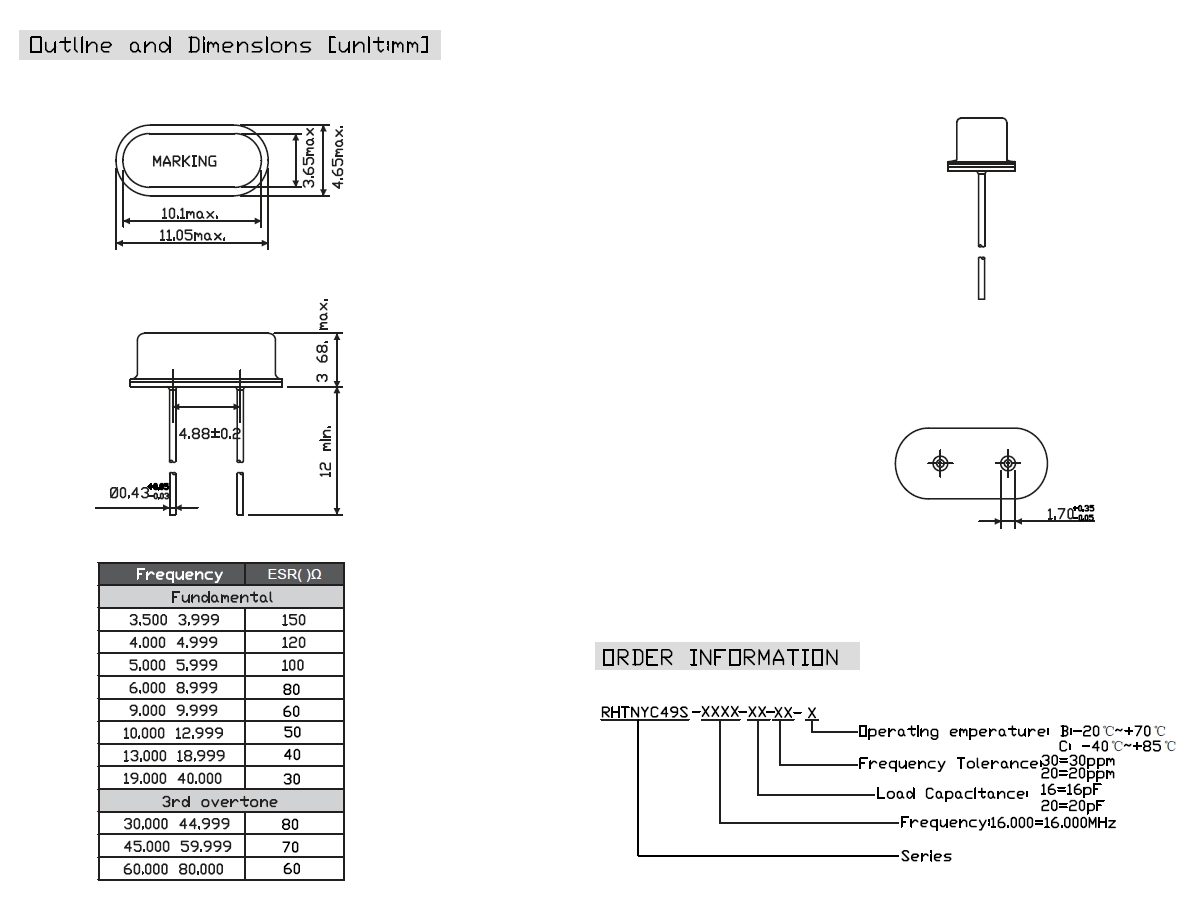

Outline and Dimensions [unit:mm]

Technical Documents

Please contact us for more information.
