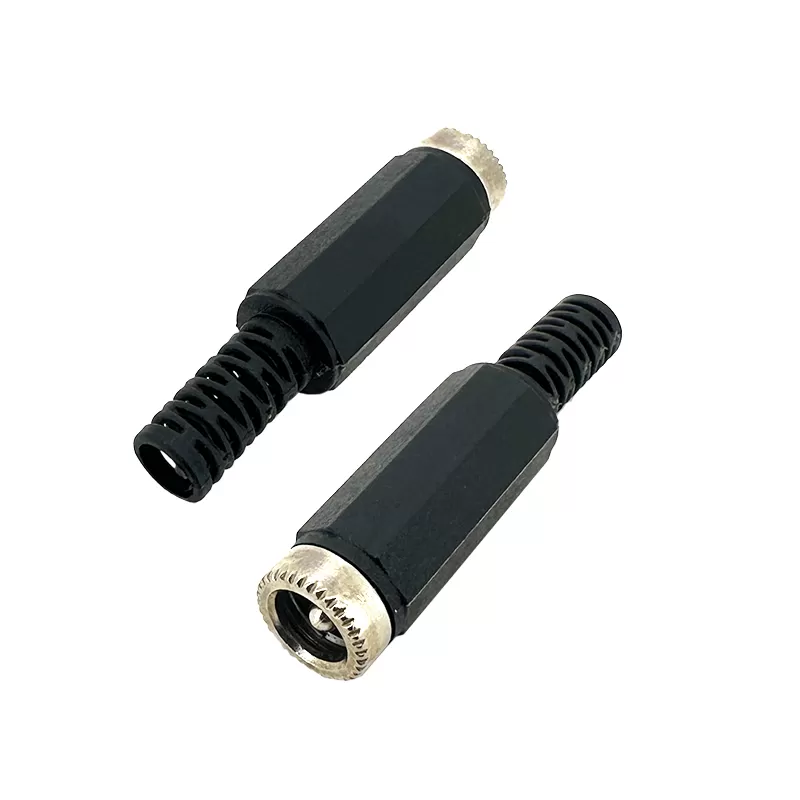

DC Power Plug Couplings:RHTAYCP-03
DC power PLUG is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DC power PLUG. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Current Rating: Commonly 1A to 10A, suitable for low to moderate power applications
-Contact Resistance: Low resistance to ensure minimal power loss
-Insulation Resistance: High resistance for reliable insulation and safety
-Coupling Mechanism: Available in push-in, screw-lock, bayonet, or threaded locking for secure connections
Applications
1.Consumer Electronics
2.Industrial & Automation Systems
3.Automotive & Electric Vehicles (EVs)
4.Medical & Healthcare Equipment
Specifications
Material:
1 BRASS (NICKEL)
2 ABS (WHITE)
3 P-BRONZE
4 PLASTIC TIBE
5 P-E (BLACK)
Technical parameters:
Rated Load: DC 30V 1.0A
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC500V(50Hz) 1min
Operating Temperature: -30ºC ~ 70ºC
Actuating Force: 3~20N
Life:5000Time
Technical Documents
Please contact us for more information.
