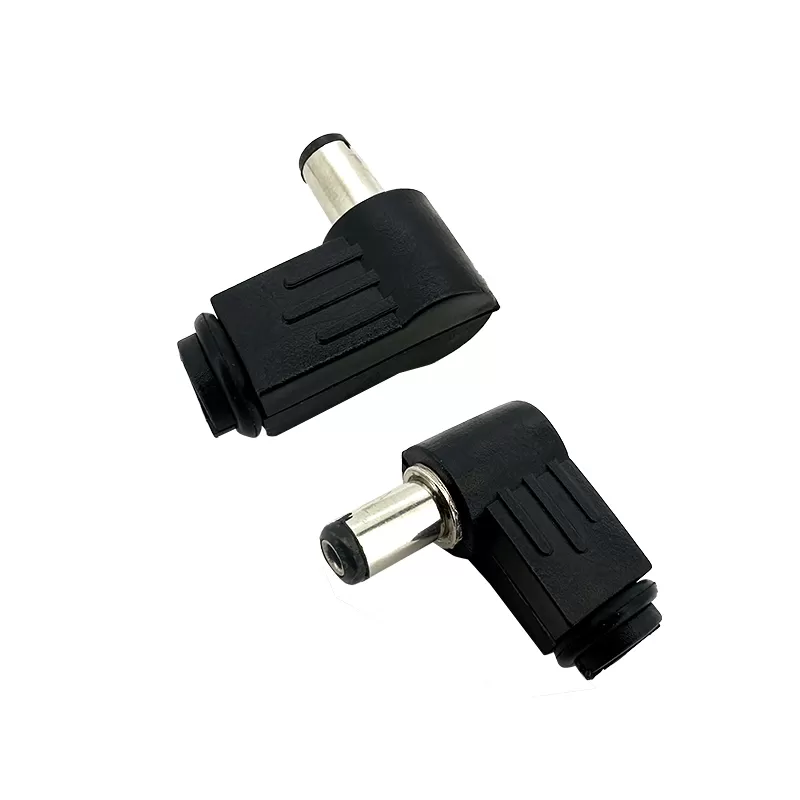

DC Power Plug :RHTAYCP-04

Features

-Design and Configuration:

Barrel Shape: Most DC power plugs have a cylindrical or barrel-shaped design with a central pin or socket for transmitting power.

Variety of Sizes: Available in various sizes and diameters (e.g., 5.5mm x 2.1mm, 3.5mm x 1.35mm), allowing compatibility with different devices and power requirements.

Polarity: Typically designed with a polarity convention (center positive or center negative) to ensure proper connection to devices without damaging them.

-Compatibility:

Standardization: Follows industry standards to ensure compatibility across different devices, power supplies, and electronic equipment.

Applications: Used in a wide range of consumer electronics, including routers, modems, CCTV cameras, LED lighting, audio equipment, and portable electronic devices.

-Power Ratings:

Voltage and Current Rating: Designed to handle specific voltage and current ratings, typically ranging from low voltage (e.g., 5V, 12V) to higher voltages depending on the application.

Amperage Capacity: Capable of carrying different levels of current, ensuring efficient power delivery without overheating or damage.

-Durability and Construction:

Materials: Constructed from durable materials such as plastic, metal (usually nickel-plated), or a combination to withstand wear and tear.

Reliability: Engineered for reliability and long-term use, providing stable electrical connections even under varying environmental conditions.

Applications

1.Automotive Electronics

2.Renewable Energy Systems

3.Security and Surveillance

4.Electronic Hobbyist Projects

Specifications

DC Power Plug  (1.0mm / 1.35mm / 2.1mm / 2.5mm)

Technical parameters:

Housing Material: PBT or PA66

Center Pin Material: Brass

Rated Load: DC 30V 1.0A

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥100MΩ

Withstand Voltage: AC500V(50Hz) 1min

Operating Temperature: -30ºC ~ 70ºC

Actuating Force: 3~20N

Life:5000Time

Technical Documents

Please contact us for more information.
