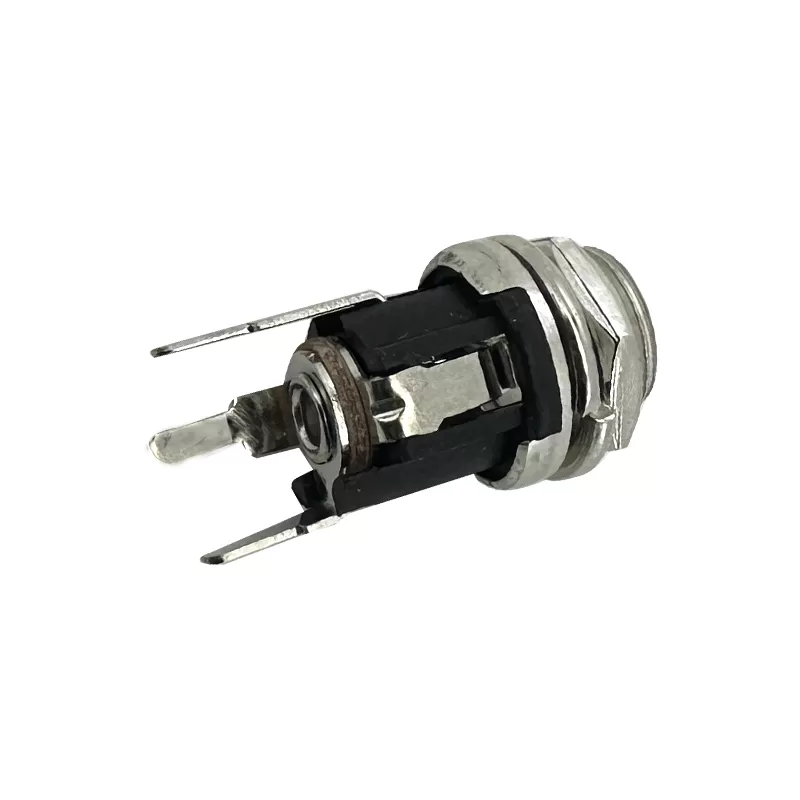

DC Power Connector：RHTAYC-025A
DIP DC power connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DIP DC power connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Polarity Protection: Many connectors are designed to prevent reverse polarity, ensuring safe connections.
-Variety of Sizes: Available in different sizes and current ratings to accommodate various applications.
-Locking Mechanisms: Some connectors have locking features to prevent accidental disconnection.
-Durability: Made from robust materials to withstand wear, environmental conditions, and mechanical stress.
Applications
1.LED Lighting
2.Medical Devices
3.Robotics
4.Home Appliances
Specifications
Rated Load: DC 30V 0.5A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
