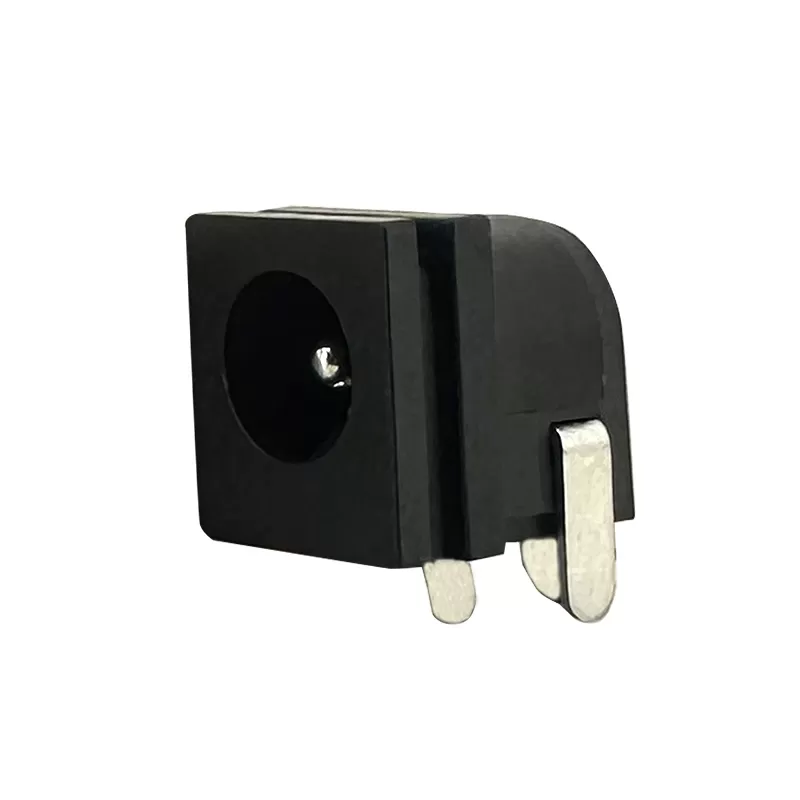

DC Power Jack Connector:RHTAYC-013
DIP DC power connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DIP DC power connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Voltage Rating: Designed to handle specific voltage levels, commonly ranging from 5V to 30V or more.
-Current Rating: Capable of supporting certain current levels, typically ranging from 1A to 5A or higher, depending on the design.
-Polarity: Usually have a standard polarity configuration, often with a center pin (positive) and outer shell (negative) for easy connection.
-Size and Form Factor: Available in various sizes (e.g., 2.1mm, 2.5mm, etc.) to fit different devices and applications.
Applications
1.Voltage Rating
2.Polarity
3.Size and Form Factor
4.Mounting Options
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
