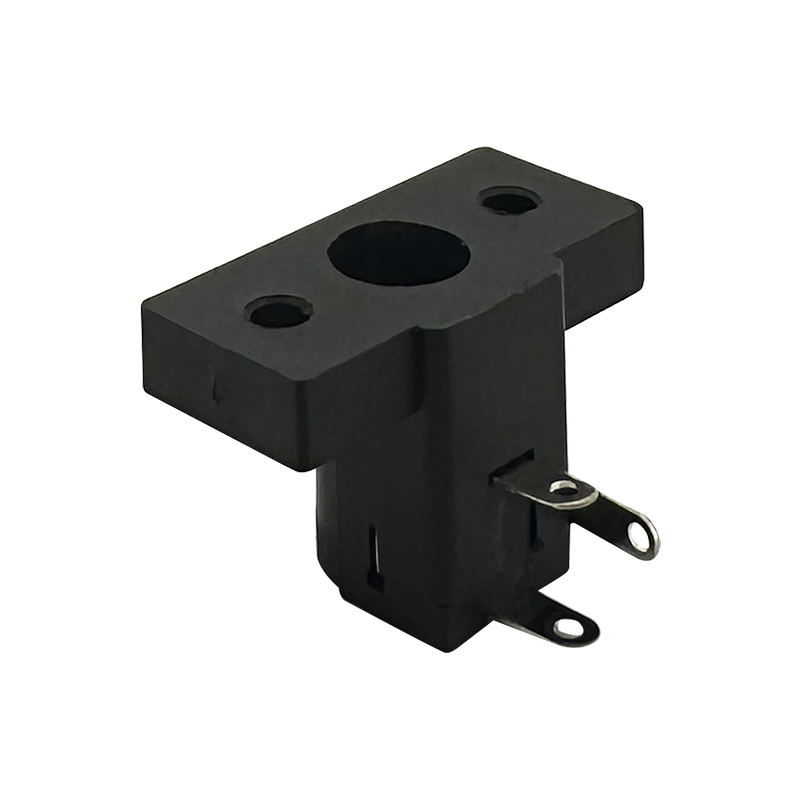

DC POWER Jack DIP:RHTAYC-031
DIP DC power connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DIP DC power connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-The DIP configuration features two rows of pins that pass through the circuit board, making it ideal for mounting on the surface of a PCB.
-The through-hole design provides a solid and reliable electrical connection, ensuring mechanical stability and long-term performance.
- It supports various voltage inputs like 5V, 9V, 12V, and 24V to accommodate different power supply requirements.
-Typically, the center pin is connected to the positive voltage, providing a steady DC current to the device.
Applications
1.Consumer Electronics
2.DIY Electronics & Prototyping
3.Battery-Powered Devices
4.Medical Devices
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
