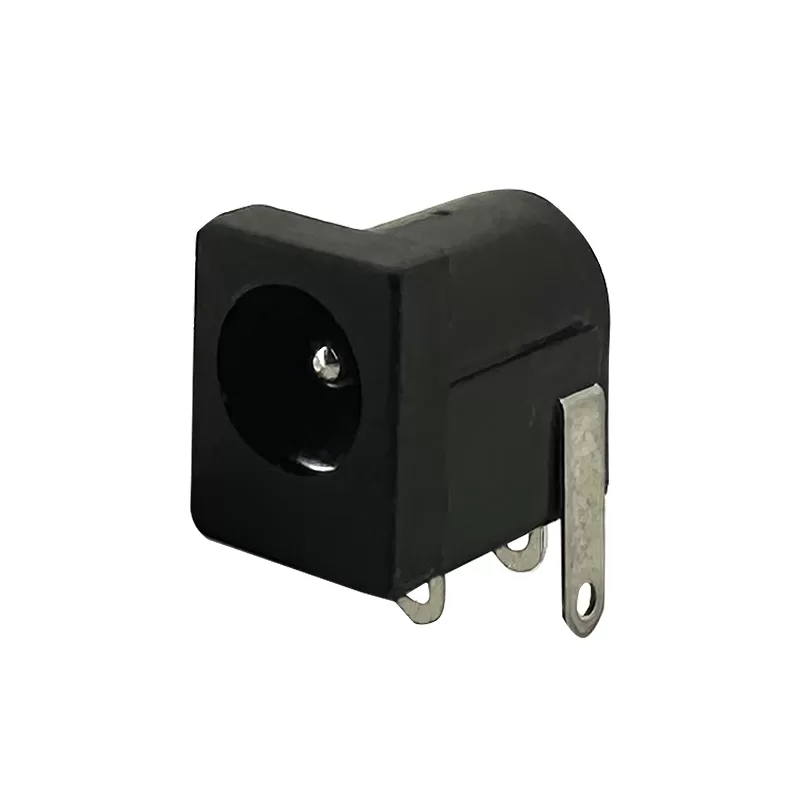

DC Power Jack ：RHTAYC-005A

Series P/N: RHTAYC-005A

DIP DC power connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of DIP DC power connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Material and Durability: High-quality DIP DC power jacks are typically constructed from durable materials such as metal or high-temperature plastics. This ensures resistance to mechanical stress and environmental factors, prolonging their operational lifespan.

-Ease of Assembly: They are designed for manual or automated insertion and soldering processes during PCB assembly. This ease of assembly contributes to efficient manufacturing and reduced production costs.

-Mounting Style: They are intended for through-hole mounting, meaning they are soldered into plated holes on the PCB. This mounting method provides a secure mechanical and electrical connection, suitable for applications where durability and stability are crucial.

-Connector Type: DIP DC power jacks typically feature a barrel-type connector with a cylindrical or rectangular shape. This connector design allows for easy insertion and removal of power plugs from external adapters or power supplies.

Applications

1.Consumer Electronics

2.Computer Peripherals

3.Telecommunications

4.Industrial Equipment

Specifications

Rated Load: DC 30V 0.5A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles
