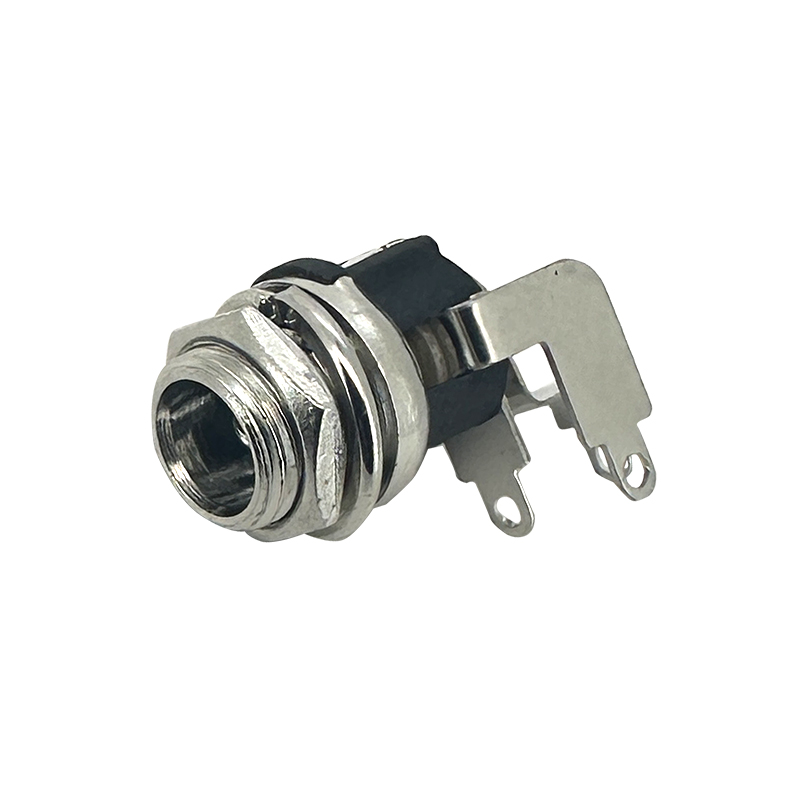

DC Power Jack Right angle DIP:RHTAYC-025F

Series P/N:RHTAYC-025F

DIP DC power connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of DIP DC power connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Package Type: The right-angle DIP package style features a rectangular body with two rows of pins extending from the bottom at a right angle (90-degree angle). This design allows the connector to be mounted flush against the edge or surface of the PCB, optimizing space in compact electronic designs.

-Mounting Style: Designed for through-hole mounting, these jacks are soldered directly onto the PCB. This mounting method provides a secure mechanical and electrical connection, suitable for applications where reliability and durability are critical.

-Connector Type: Right-angle DIP DC power jacks typically feature a barrel-type connector with a cylindrical or rectangular shape. This connector design accommodates standard power plugs from external adapters or power supplies, ensuring a secure electrical connection.

-Polarity Markings: Like other DC power connectors, right-angle DIP jacks are often marked with polarity indicators (center-positive or center-negative). These markings ensure correct alignment with the power supply, preventing potential damage to the connected device due to reversed polarity.

Applications

1.Consumer Electronics

2.Telecommunications Equipment

3.Industrial Electronics

4.Automotive Electronics

Specifications

Rated Load: DC 30V 0.5A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles
