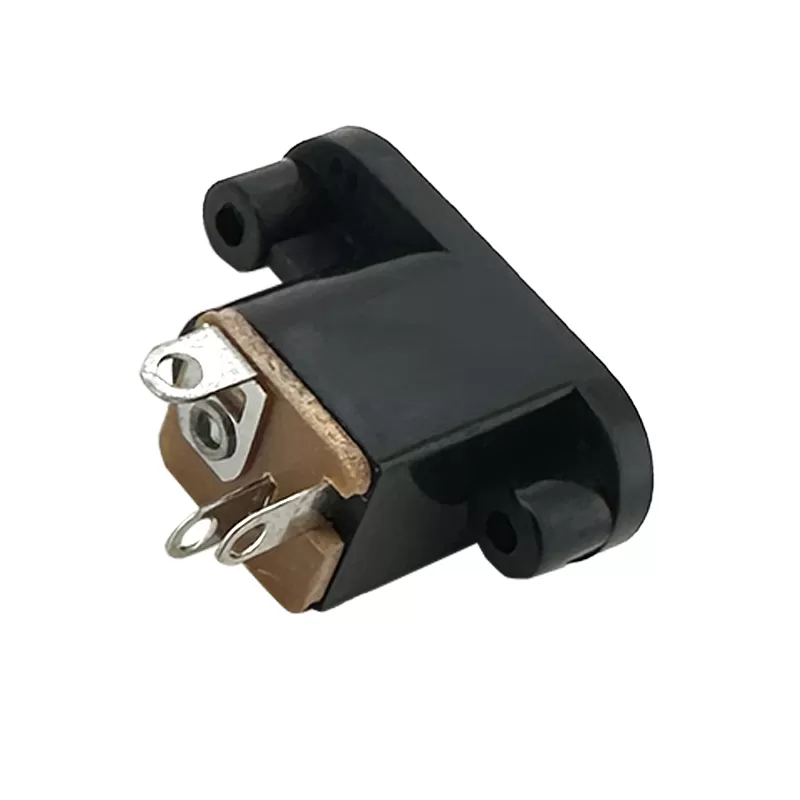

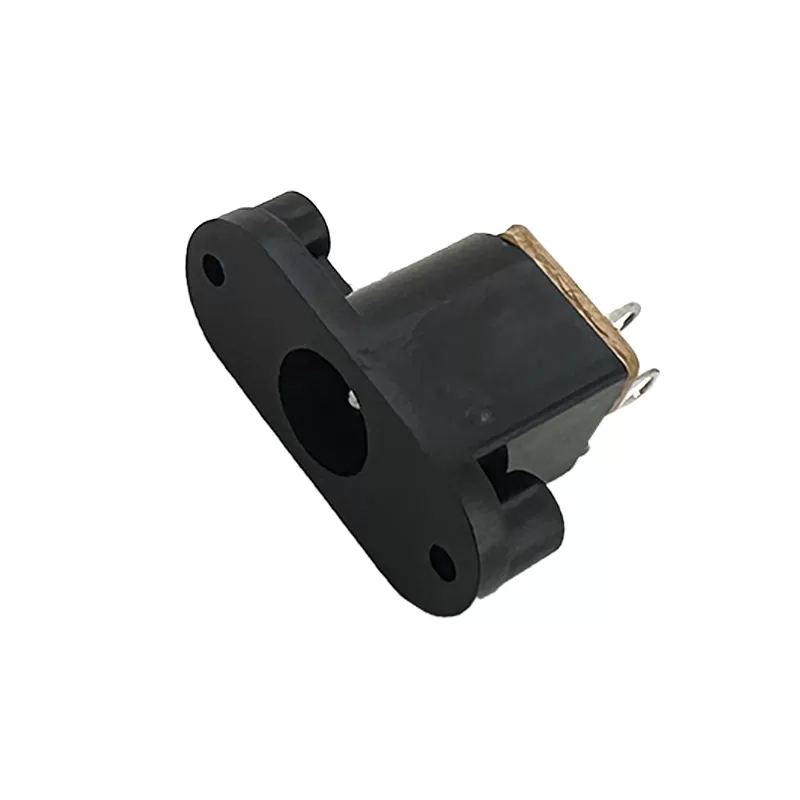

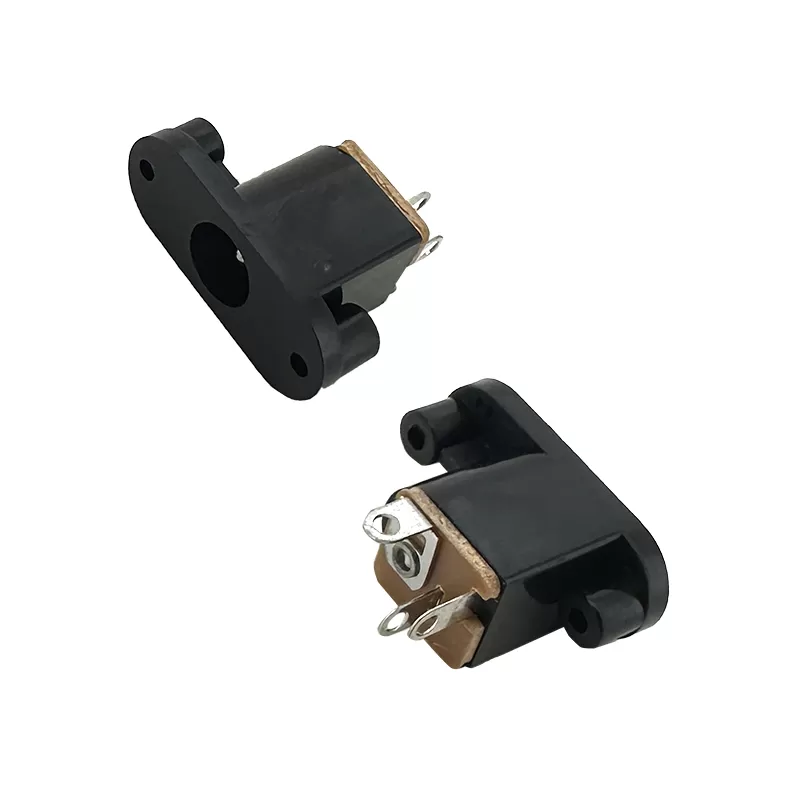

DC Power Jack：RHTAYC-007
DIP DC power connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of DIP DC power connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Contact Resistance: Low resistance for efficient power transfer.
-Barrel Size Options: Common sizes include 2.1mm and 2.5mm inner diameter.
-Housing Material: Made from plastic or metal for insulation and durability.
-Waterproof Options: Available with IP67/IP68 ratings for outdoor and industrial applications.
Applications
1.Renewable Energy & Power Systems
2.Industrial & Embedded Systems
3.Automotive & Transportation
4.LED Lighting
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
