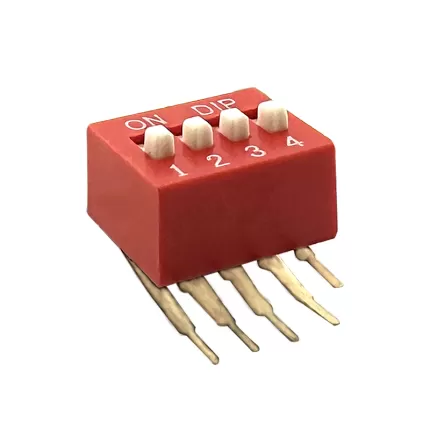

SPST Standard Right angle Recessed Type dip switch 1~12pins:RHTGYAR

Series P/N: RHTGYAR

DIP switches is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of DIP switches. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-Configuration: SPST means each switch within the DIP package can connect one input to one output.

-Package Type: Standard DIP switches are usually housed in a rectangular plastic package with a row of pins on either side for through-hole mounting on a PCB (Printed Circuit Board).

-Right Angle Recessed Type: This refers to the orientation and design of the switch. "Right angle" means the pins are mounted perpendicular to the body of the switch, suitable for through-hole PCB mounting. "Recessed" indicates that the switch body may be slightly inset or protected by the housing, which can help prevent accidental actuation.

-Number of Pins: DIP switches typically range from 1 to 12 pins. Each pin corresponds to a separate switch contact.

Applications

1.Electronic Devices Configuration

2.PCB Prototyping and Development

3.Embedded Systems

4.Consumer Electronics

Specifications

SPST Standard Right angle Recessed Type dip switch 1~12pins

Material:

Cover: PBT plastic (red or blue)

Base: PBT plastic (black)

Operator: POM plastic (white)
