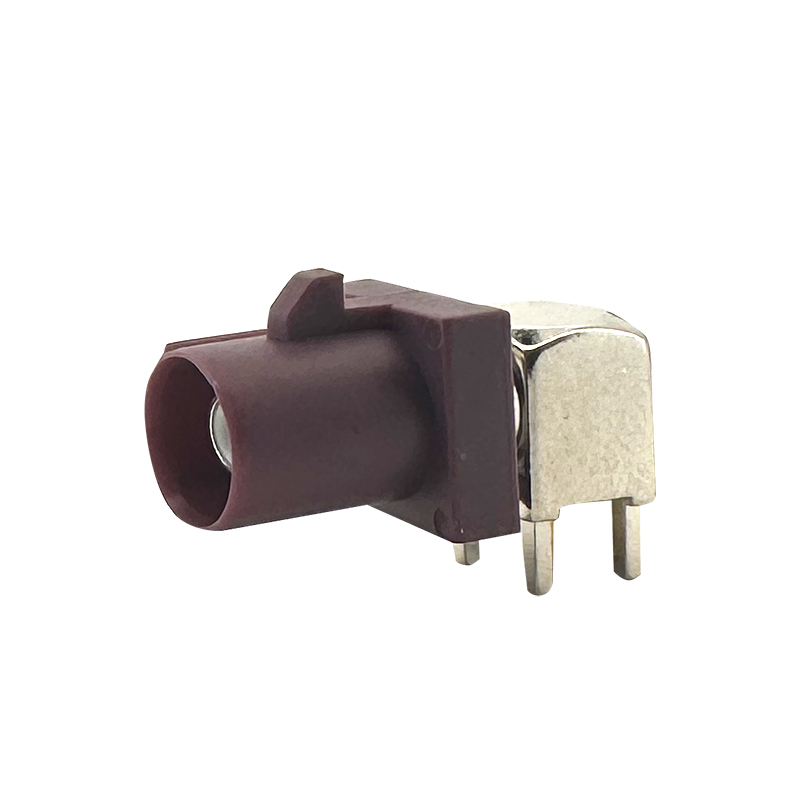

    FAKRA Male B type RG316/RG174 :RHTAYAK003B

    FAKRA Male B type RG316/RG174 :RHTAYAK003B

    Series P/N:RHTAYAK003B

    FAKRA CONNECTORS is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of FAKRA CONNECTORS. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Male Connector: This connector features a male pin that mates with a female socket, typically used to create secure and reliable RF connections.

    -Low Loss: Both RG316 and RG174 cables offer low-loss transmission, which is crucial for high-frequency applications like automotive infotainment, GPS systems, or telecommunication devices.

    -Impedance Matching (50 Ohms): The connector and cables maintain a characteristic impedance of 50 ohms, which is optimal for many RF applications, ensuring efficient signal transfer and preventing signal reflection.

    -Broad Frequency Range: FAKRA connectors, when paired with RG316 or RG174 cables, are suitable for a wide range of high-frequency applications, with a frequency range typically extending up to several GHz, depending on the specific system and usage.


    Applications

    1.Automotive Applications

    2.Telecommunications

    3.GPS and Satellite Systems

    4.Broadcasting and Media Equipment


    Specifications

    Impedance: 50 Ω

    Frequency Range: DC-4 GHz

    Voltage Rating:335 volts

    VSWR: 1.3 Max. Dielectric

    Withstanding Voltage: 1000 volts rms

    Insulation Resistance: 4000 MΩ Min.

    Temperature Range: -40°C to +85°C


    Technical Documents

    Please contact us for more information.
