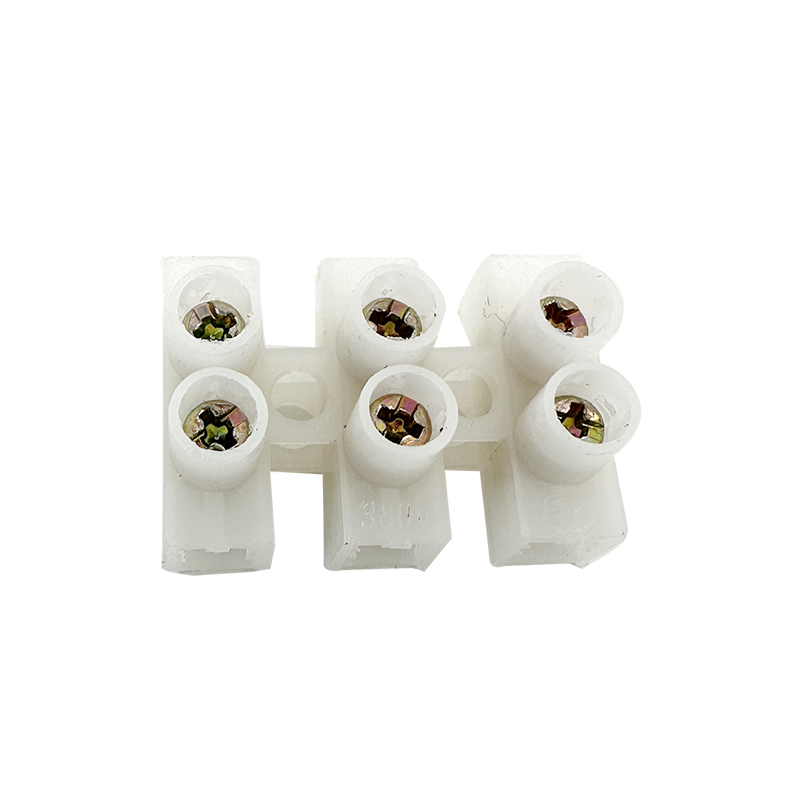

Terminal block Strips：RHTBY10

Series P/N:RHTBY10

Feed Through Terminal Blocks and Box is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Feed Through Terminal Blocks and Box. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Modular Design: Terminal block strips consist of multiple individual terminal blocks (often called positions or poles) that are linked together in a strip format. This modular design allows for flexibility in creating various configurations depending on the application requirements.

-Pitch Size: Refers to the center-to-center distance between adjacent terminal blocks within the strip. Common pitch sizes include 5.0mm, 7.5mm, 9.5mm, etc., accommodating different wire sizes and current ratings.

-Number of Positions: Specifies the number of terminals or connections available in the strip. Terminal block strips can range from a few positions to dozens or more, offering scalability and versatility in wiring setups.

-Material: Typically constructed from durable materials such as nylon, thermoplastic, or ceramic for insulation, with conductive parts made of metals like brass or tin-plated brass. This construction ensures good electrical conductivity, durability, and resistance to environmental factors.

Applications

1.Control Panels and Industrial Automation

2.Power Distribution

3.Telecommunications and Networking

4.Renewable Energy Systems

Specifications

Feed Through Terminal Block

Material

Base:With 1.2mm elevated base

Housing material: PA66, UL94V-2

erminal material: Cladded copper strips, Zn plated

Screws: Steel
