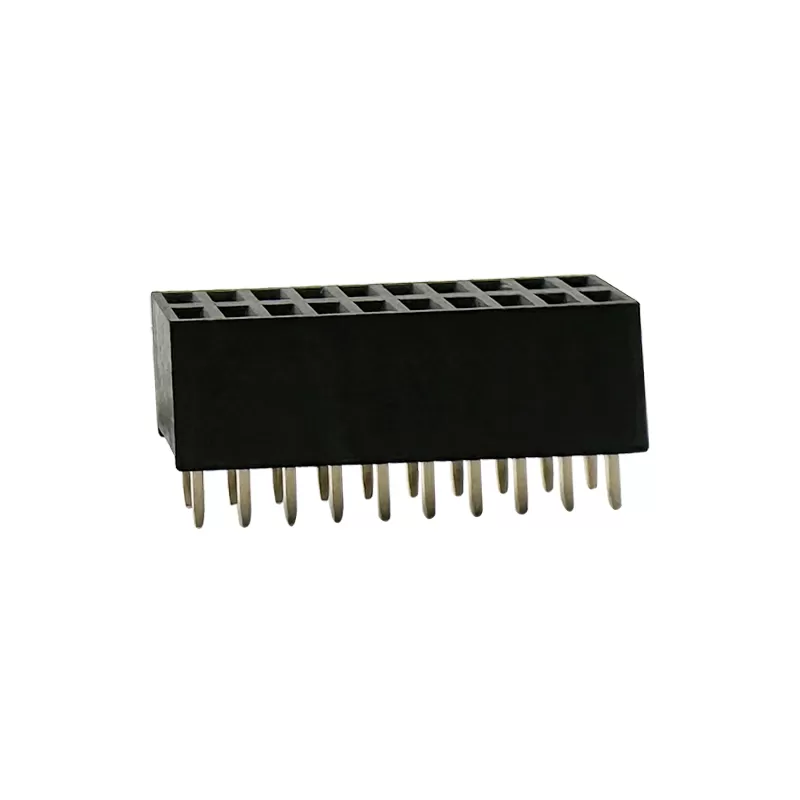

    1.0mm Pitch Female Header Connector Height 2.0mm :RHTAY08F-2.0

    Series P/N:RHTAY08F-2.0

    Female header connectors  is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of Female header connectors. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Height: 2.0mm height profile, indicating the overall vertical dimension from the PCB surface to the top of the connector.

    - Number of Contacts: Available with various numbers of contacts (pins) depending on the specific model and application requirements.

    -Mounting Style: Typically available in through-hole mount (THT) configuration, where the connector is inserted into plated holes on the PCB and soldered in place.

    -Materials: Generally made from materials like phosphor bronze for the contacts and plastic (often glass-filled nylon) for the housing, providing good electrical conductivity and mechanical strength.


    Applications

    1.Development and Prototyping

    2. Consumer Electronics

    3. Computing Devices

    4.Telecommunications


    Specifications

    1.00mm Pitch Female Header Connector Height 2.0mm

    Order Information

    RHTAY08F-2.0-2-XX-S-B

    Height: 2.0mm

    1-Single layer   2-Double layer

    XX-Total pin number  (No.of 2~100pin)

    S-Straight Pin  T-SMT Pin

    Material:B=PA6T  C=LCP

    Material:

    Housing: PA6T or LCP UL94V-0

    Contacts: Phosphor Bronze

    Plating: Au or Sn over 50u" Ni

    Electrical Characteristics:

    Current Rating: 0.75 AMP

    Withstanding Voltage: 500V AC/DC

    Insulator Resistance: 1000MΩ Min

    Contact Resistance: 30mΩ Max

    Operating Temperature: -40ºC~+105ºC


    Technical Documents

    Please contact us for more information.
