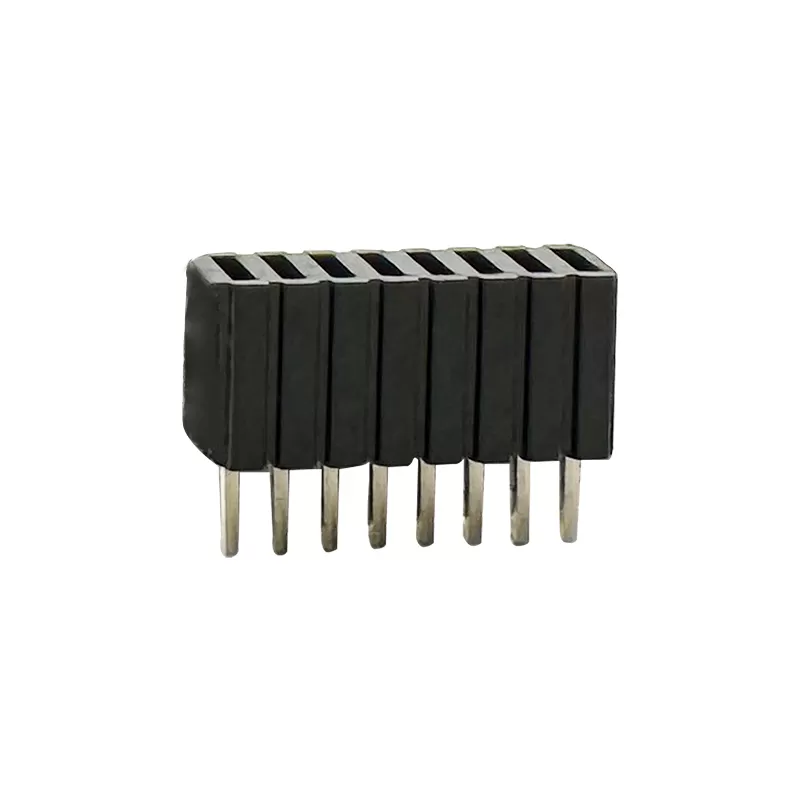

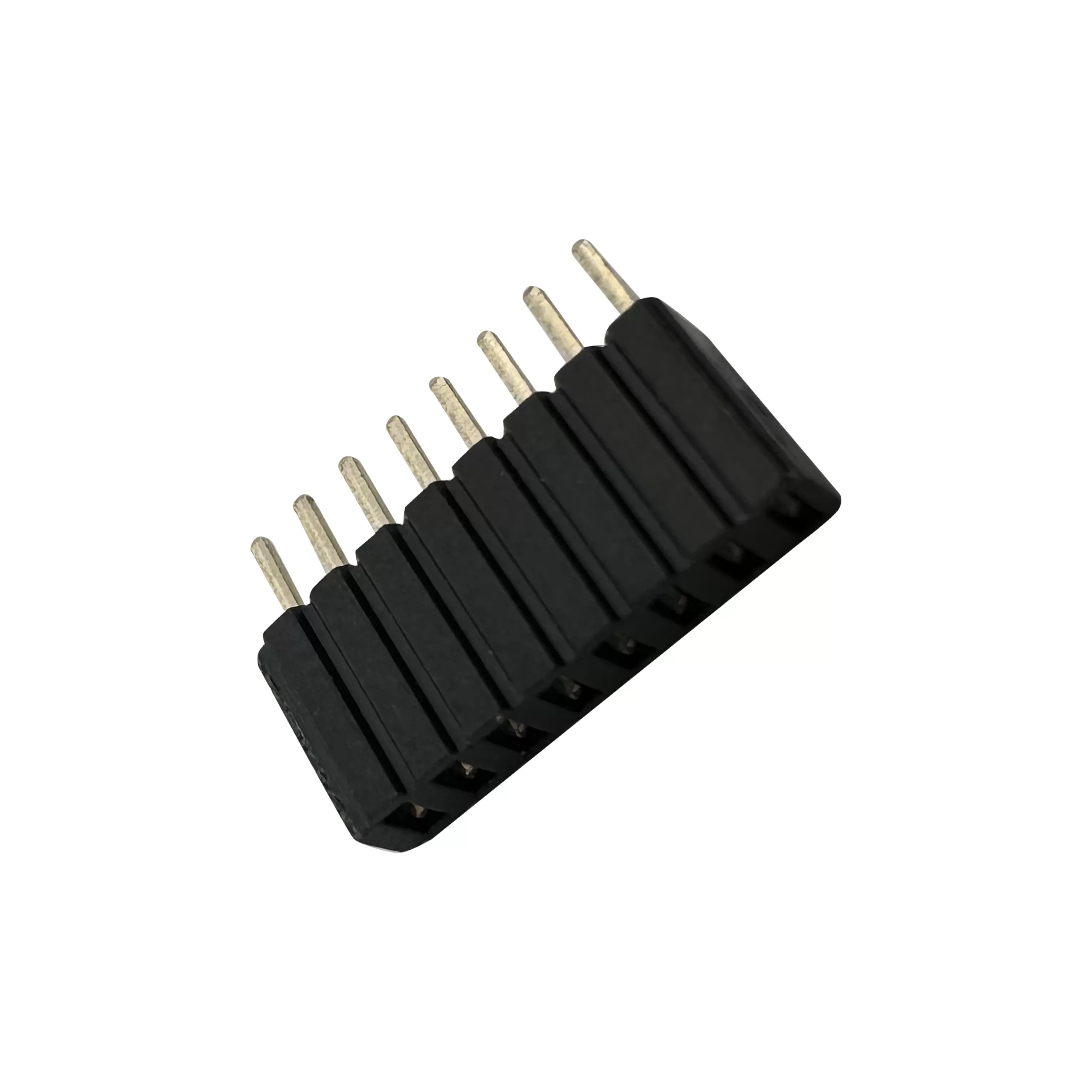

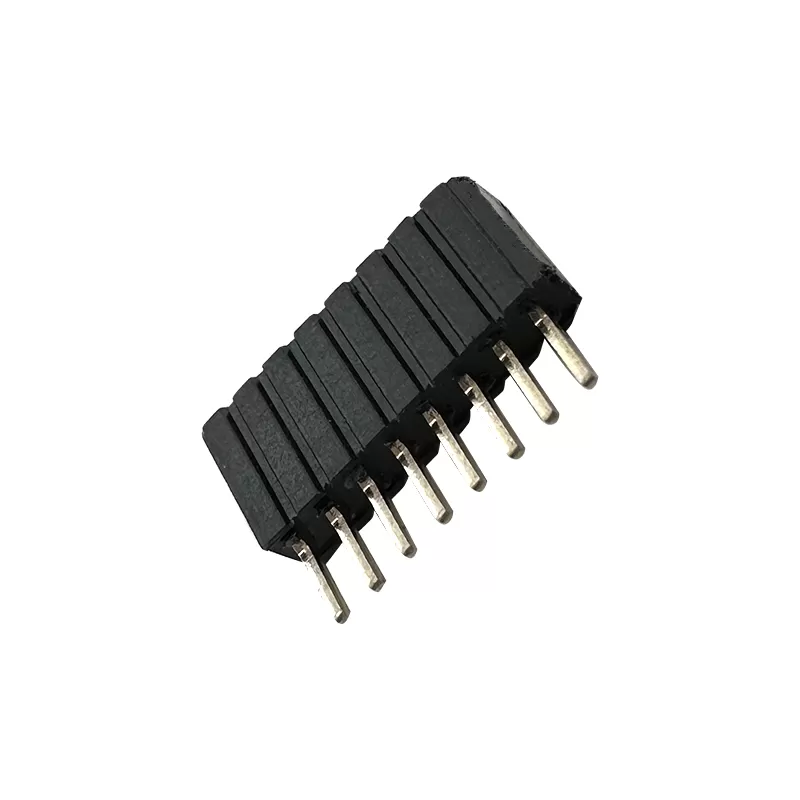

1.27x2.54mm Pitch Female Header Connector Height 4.6mm :RHTAY08D-4.6

Series P/N: RHTAY08D-4.6

Female header connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Female header connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

- Number of Positions:Available in various configurations with different numbers of positions (pins), typically ranging from single-row configurations to multiple rows and higher pin counts. This versatility supports diverse connectivity options in electronic designs.

- Contact Material:Contacts are usually made from materials such as phosphor bronze or copper alloy, ensuring good electrical conductivity and mechanical strength.

- Contact Plating:Contacts may be plated with materials like gold or tin to enhance corrosion resistance, ensure reliable electrical connections, and improve solderability.

- Insulator Material:The connector body is typically made from high-temperature plastic materials such as PBT (polybutylene terephthalate) or Nylon, providing mechanical durability and resistance to environmental factors.

Applications

1. PCB Connectivity

2. Embedded Systems

3. Consumer Electronics

4. Telecommunications Equipment

Specifications

1.27x2.54mm Pitch Female Header Connector,Height: 4.6mm

Order Information

RHTAY08D-4.6-2-XX-S-B

Height: 4.6mm

2-Double layer

XX-Total pin number (No.of 2~80pin)
