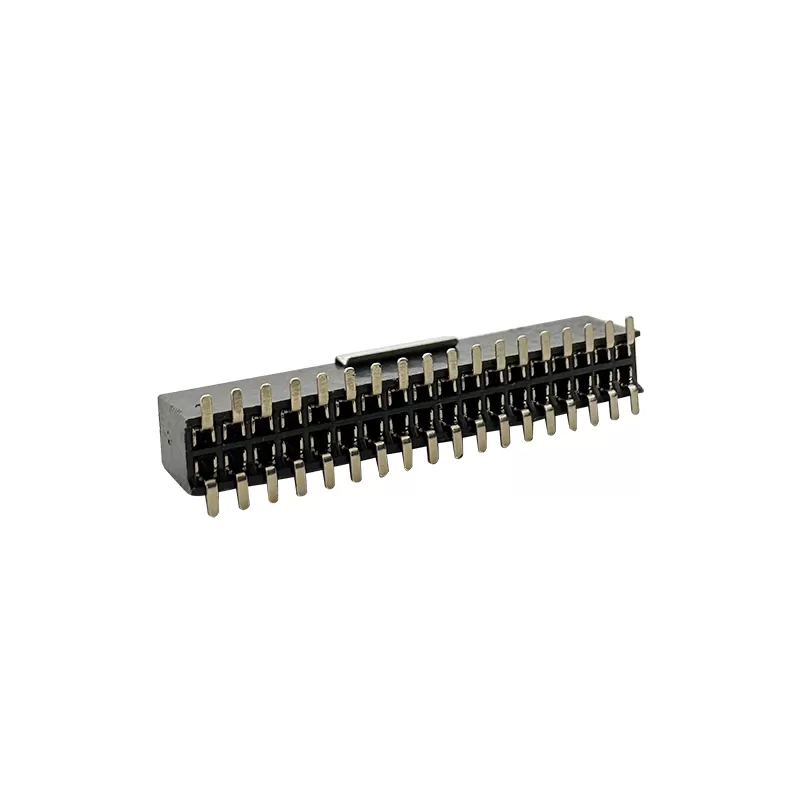

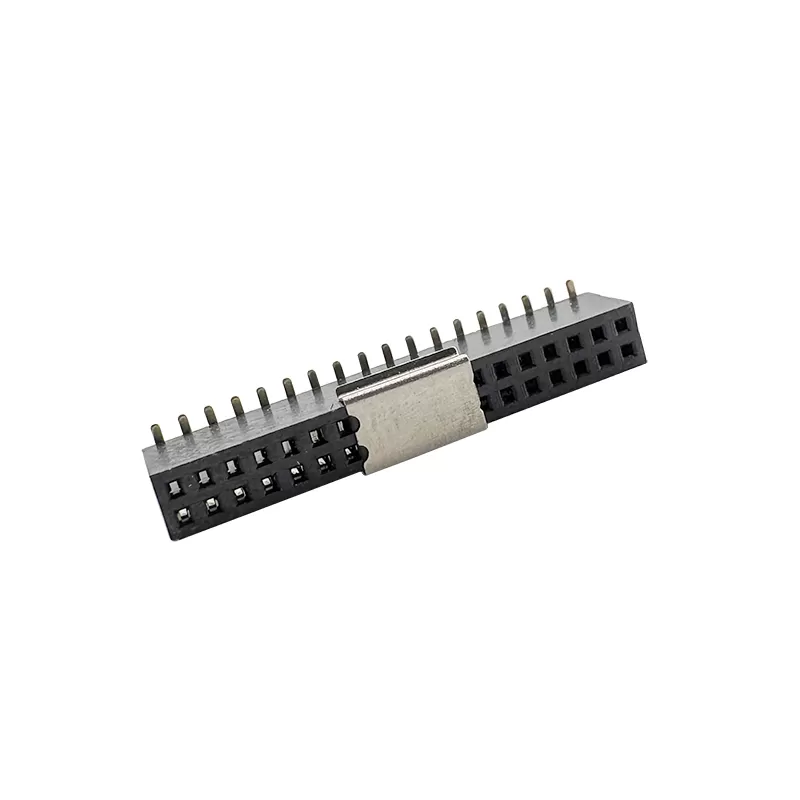

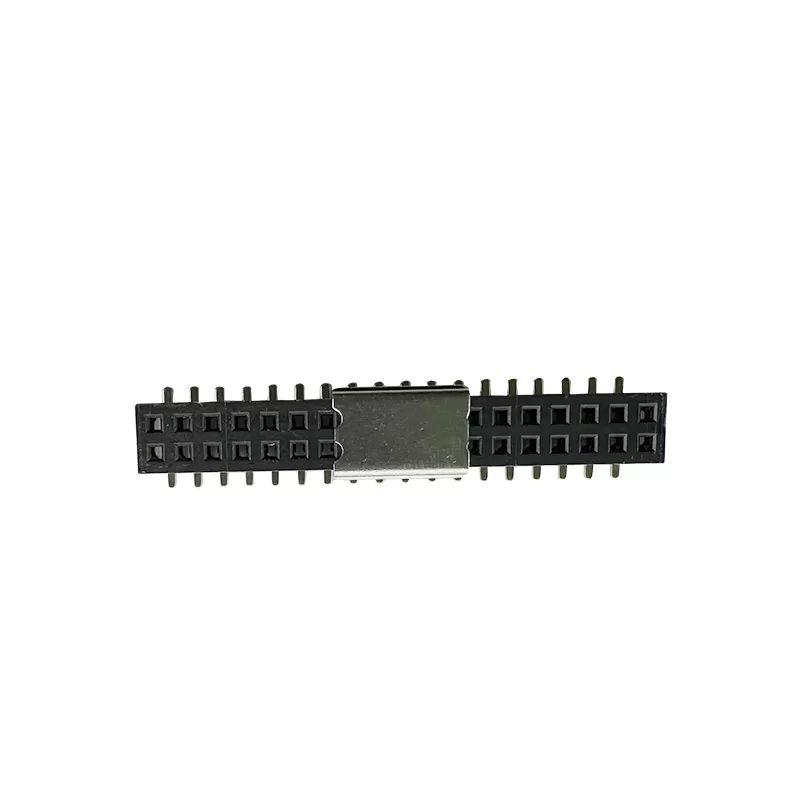

1.27mm Pitch Female Header Connector Height 2.0mm :RHTAY08C-2.0

Series P/N:RHTAY08C-2.0

Female header connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Female header connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch: 1.27mm pitch, which refers to the center-to-center distance between adjacent contacts. This pitch size allows for higher contact density compared to larger pitch connectors, making it suitable for applications where space-saving is essential.

-Connector Type: Female header connector, designed to receive male pin headers or other mating connectors. It provides a secure and reliable electrical connection between PCBs (Printed Circuit Boards) or between PCB and external components.

-Height: 2.0mm height, which refers to the vertical dimension of the connector from the PCB surface to the top of the connector body. This low profile is beneficial for applications where board stacking or space constraints are considerations.

-Number of Contacts: Available in various configurations with different numbers of contacts (typically ranging from 2 to 40 contacts or more), allowing flexibility in design and application requirements.

Applications

1. Embedded Systems

2. Consumer Electronics

3. Automotive Electronics

4. Medical Devices

Specifications

1.27mm Pitch Female Header Connector Height 2.0mm

Order Information

RHTAY08C-2.0-2-XX-S-B

Height: 2.0mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 2~100pin)
