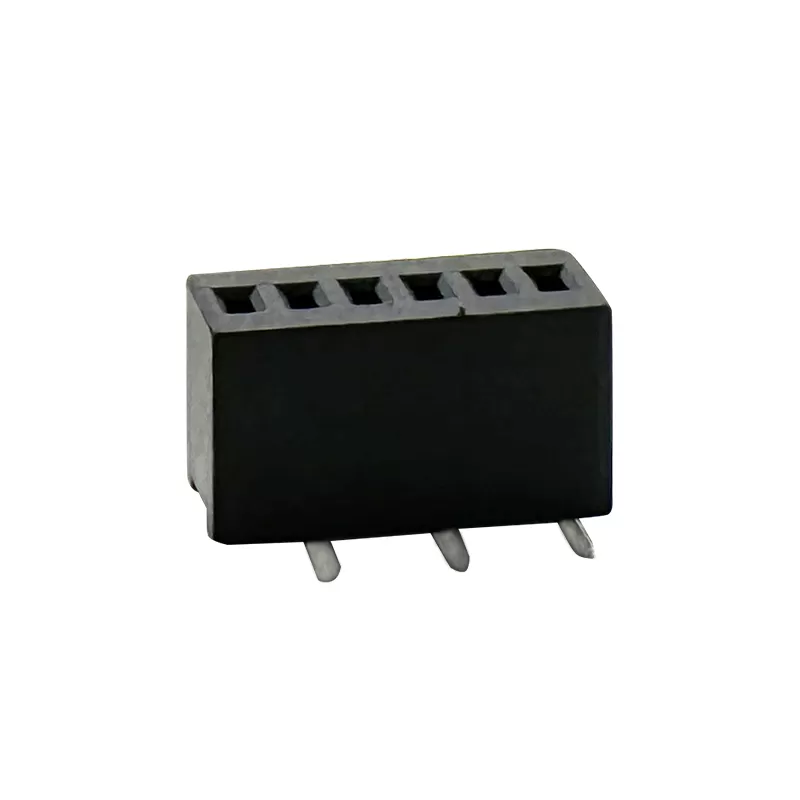

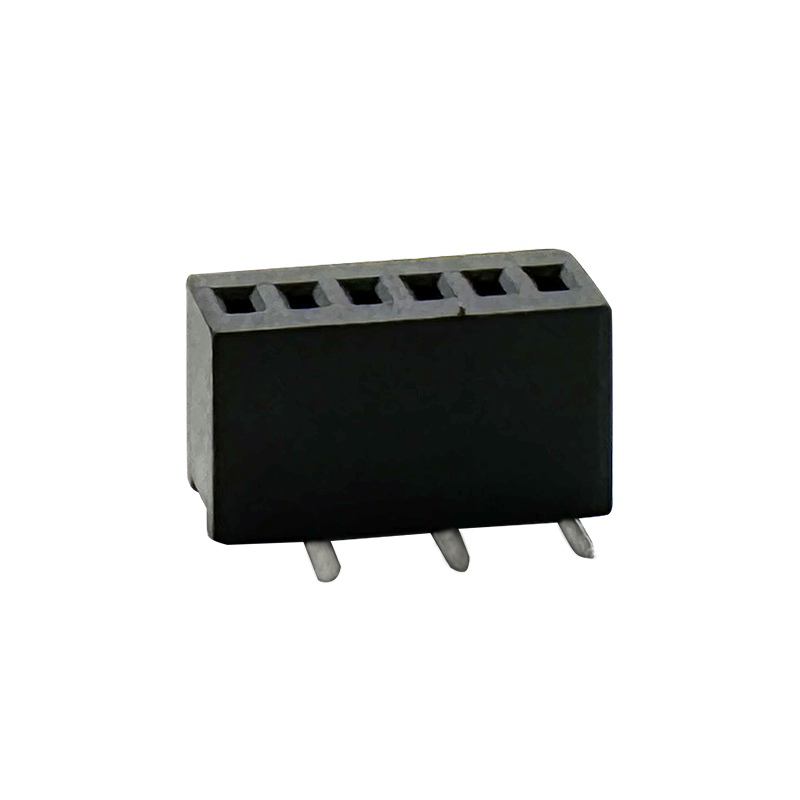

1.27mm Pitch Female Header Connector Height 5.7mm:RHTAY08C-5.7

Series P/N:RHTAY08C-5.7

Female header connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Female header connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch:1.27mm (0.05 inches) pitch, which refers to the distance between the centerlines of adjacent contacts. This pitch size is common in applications where a compact form factor is required.

-Height:5.7mm height from the base to the top of the connector. The increased height compared to standard connectors can accommodate components or provide additional clearance for PCBs or other elements.

-Number of Positions: Available in various configurations with different numbers of positions (pins), typically ranging from a few positions to multiple rows and higher pin counts. This flexibility allows for versatile connectivity options.

-Contact Material: Usually made from materials such as phosphor bronze or copper alloy, providing good electrical conductivity and mechanical strength.

Applications

1. Industrial Automation

2. Medical Devices

3. Automotive Electronics

4. Test and Measurement Instruments

Specifications

1.27mm Pitch Female Header Connector Height 5.7mm

Order Information

RHTAY08C-5.7-1-XX-T1-L1xL2-N-B-R

Height: 5.7mm

1-Single layer

XX-Total pin number (No.of 1~50pin)
