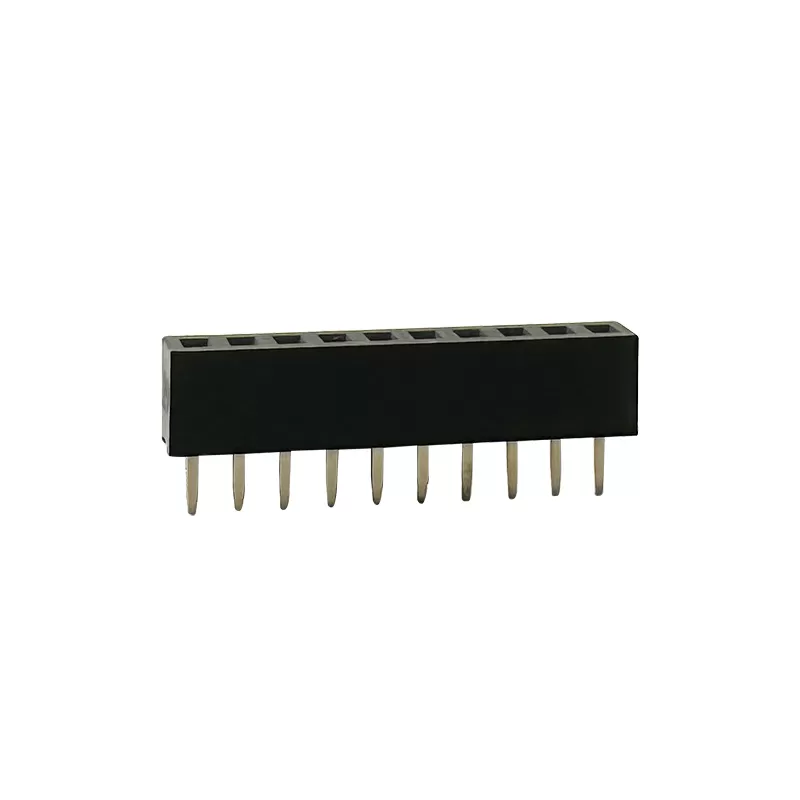

2.0mm Pitch Female Header Connector Height 4.3mm:RHTAY08B-4.3

Series P/N:RHTAY08B-4.3

Female header connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Female header connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch: The pitch refers to the distance between adjacent pins or contacts. In this case, it is 2.0mm, which is the standard spacing for this type of connector.

-Number of Contacts: Female header connectors come in various configurations with different numbers of contacts (pins). These can range from single-row configurations with a few pins to dual-row configurations with many pins, depending on the specific application requirements.

-Height: The height of 4.3mm specifies how much vertical space the connector occupies on a PCB when soldered or mounted. This height provides adequate clearance and mechanical stability for applications where slightly taller connectors are needed.

-Connector Type: It is a female header connector, meaning it has receptacles or sockets that accept male pins or headers. This configuration allows for easy mating and unmating of connections, making it suitable for board-to-board or board-to-wire applications.

Applications

1.Printed Circuit Board (PCB) Interconnections

2. Industrial Applications

3. Consumer Electronics

4.Telecommunications

Specifications

2.0mm Pitch Female Header Connector Height 4.3mm

Order Information

RHTAY08B-4.3-1-XX-S-B

Height: 4.3mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 2~80pin)
