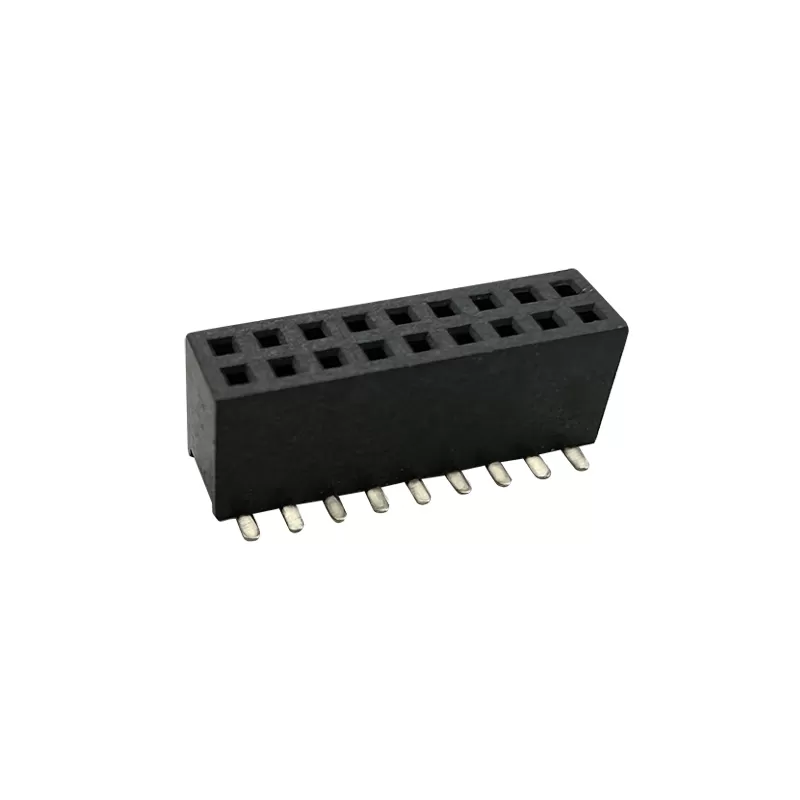

2.54mm Pitch Female Header Connector Height 3.5mm:RHTAY08-3.5

Series P/N:RHTAY08-3.5

Female header connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Female header connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

- Termination Style: Designed for through-hole soldering on a PCB. This method involves inserting the pins through holes in the PCB and soldering them to the copper pads on the opposite side of the board, providing a strong and stable connection.

- Housing Material: The housing is usually made from durable thermoplastics such as PBT (Polybutylene Terephthalate) or Nylon, offering mechanical strength and resistance to heat, chemicals, and environmental factors.

- Height and Length: The dimensions of the connector, including pin height and overall length, are chosen based on specific application requirements, ensuring adequate clearance and stability when mounted on the PCB.

- Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications. These ratings are critical for safe and reliable operation.

Applications

1.Networking Equipment

2. Industrial Automation

3. Test and Measurement Instruments

4. Telecommunications Equipment

Specifications

2.54mm Pitch 3.5mm Height Female Header Connector

Order Information

RHTAY08-3.5-1-XX-S

Height: 3.5mm

1-Single layer 2-Double layer

XX-Total pin number (No.of 1~80pin)
