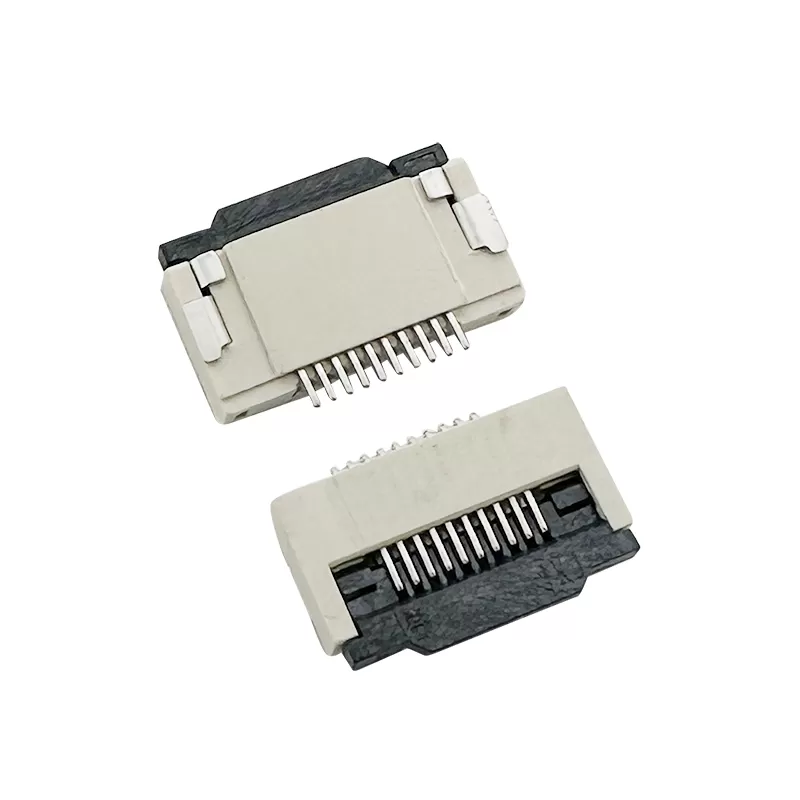

0.5mm back flip SMT H1.0mm dual contacts FPC/FFC connectors :RHTAY42J-1.0

Features

-Surface Mount Technology (SMT): They are meant for surface mount assembly, where they can be directly soldered onto the surface of a printed circuit board (PCB). This is a common method in modern electronics manufacturing.

-Height (H): The connectors have a height of 1.0mm, which refers to their profile or how much they protrude from the PCB when mounted. This low profile is advantageous for compact electronic designs.

-Dual Contacts: These connectors feature dual contacts per connection point. This redundancy can improve reliability by providing multiple electrical paths, which can be especially useful in applications requiring robustness against vibration or mechanical stress.

-Compatibility: They are designed for use with flexible printed circuits (FPC) or flat flexible cables (FFC), which are thin and lightweight, making them suitable for applications where space and weight are critical factors.

Applications

1. Industrial Equipment

2. Networking and Communication Devices

3. LED Lighting

4. Robotics and Automation:

Specifications

0.5mm back flip SMT H1.0mm dual contacts 4-60P FPC/FFC connectors

Order Information

RHTAY42J-1.0-XX-T-R

XX-No.of 04 ~ 60pin

T-SMT Pin

Packing:R-Reel   T-Tube

Material

Housing:LCP, UL94V-0

Terminal:Phosphor bronze ,Gold/Tin

Cover:LCP, UL94V-0

Solder:Phosphor bronze ,Tin

Electrical

Voltage rating: 50 V

Insulation resistance: 500 MΩ.Min.

Contact resistance: 30 mΩ.Max.

Mechanical

Temp. Range:   -25 ° C ~ + 85 ° C

Technical Documents

Please contact us for more information.
