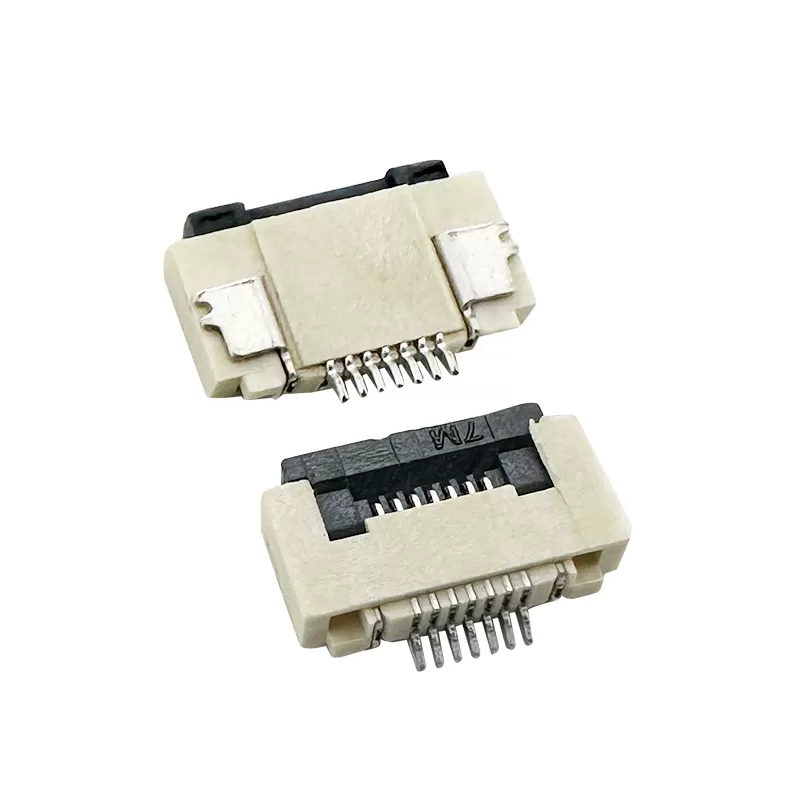

0.5mm hinged lock SMT H2.0mm bottom contacts FPC/FFC connector :RHTAY42G-2.0

Series P/N: RHTAY42G-2.0

FFC/FPC connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of FFC/FPC connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Environmental Considerations: Depending on the model and manufacturer specifications, these connectors may offer additional features such as waterproof or dustproof capabilities, enhancing their suitability for outdoor and harsh environment applications.

-Ease of Use: The hinged lock mechanism simplifies the assembly and disassembly process of FPC/FFC, making these connectors user-friendly during installation and maintenance. This feature ensures ease of use while maintaining a secure and stable connection.

-Durability and Reliability: Constructed from durable materials such as high-grade plastics and metal alloys, these connectors are designed to withstand mechanical stress, vibrations, and temperature variations common in their application environments. This ensures long-term reliability and operational stability.

-Electrical Performance: They offer excellent electrical performance with low contact resistance and sufficient insulation resistance to maintain signal integrity and prevent electrical leakage. This is crucial for ensuring stable operation and reliable data transmission in electronic devices and systems.

Applications

1. LED Lighting

2. Testing and Measurement Equipment

3. Military and Aerospace

4. Renewable Energy

Specifications

0.5mm hinged lock SMT H2.0mm bottom contacts 6-60P FPC/FFC connector

Order Information

RHTAY42G-2.0-XX-T-R

XX-No.of 06 ~ 60pin

T-SMT Pin

Packing: R-Reel T-Tube
