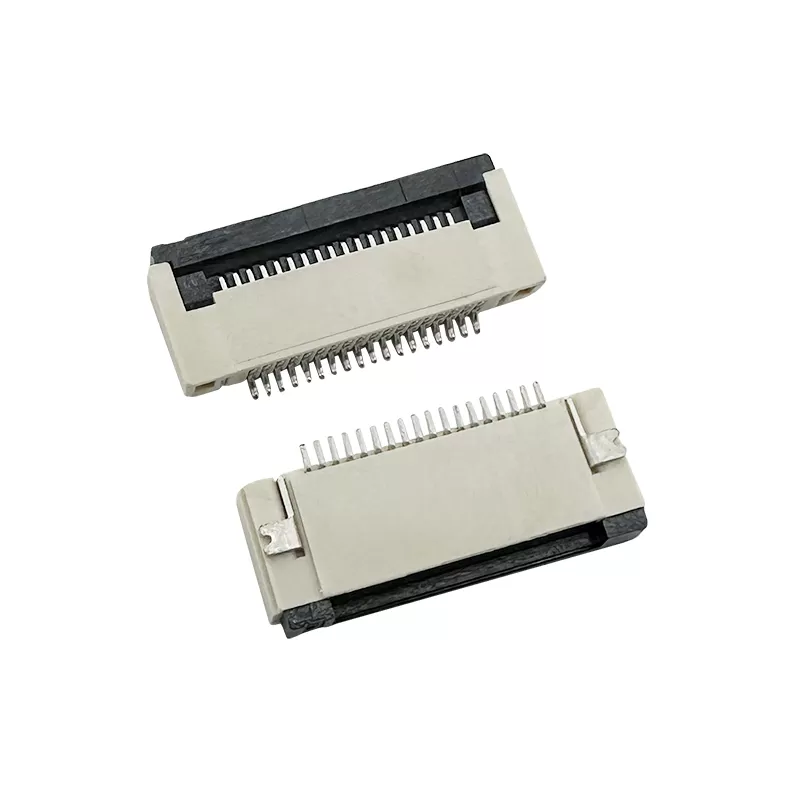

0.5mm ZIF SMT H1.2mm bottom contacts FPC/FFC connector :RHTAY42X-1.2

Series P/N: RHTAY42X-1.2

FFC/FPC connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of FFC/FPC connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch and Size: The connectors have a pitch (distance between adjacent contacts) of 0.5mm, suitable for applications requiring fine pitch connections. The overall height (H) is approximately 1.2mm, providing sufficient clearance for the flexible circuits and ensuring compatibility with standard PCB layouts.

-ZIF Mechanism: These connectors feature a Zero Insertion Force (ZIF) mechanism, which allows for insertion and removal of the flexible circuits without applying significant force. This minimizes the risk of damaging the circuits during assembly or maintenance, making them ideal for applications where frequent connection/disconnection is necessary.

-Bottom/Upper Contact Design: These connectors can have both bottom and upper contacts, where the contact points are located on both the underside and top side of the connector. This dual contact design facilitates versatile connectivity options, enabling direct contact with the PCB pads on either side for optimized electrical performance and reliable signal transmission.

-Surface Mount Technology (SMT): Designed for surface mount assembly, these connectors are soldered directly onto the surface of a PCB. This allows for efficient and automated assembly processes, ensuring secure mechanical attachment to the board and minimizing assembly time and costs.

Applications

1. Telecommunications

2. LED Lighting

3. Testing and Measurement Equipmentity

4. Military and Aerospace

Specifications

0.5mm ZIF SMT H1.2mm bottom contacts 4-60P FPC/FFC connector

Order Information

RHTAY42X-1.2-XX-T-L-R

XX-No.of 04 ~ 60pin

Height: 1.2mm

T-SMT Pin
