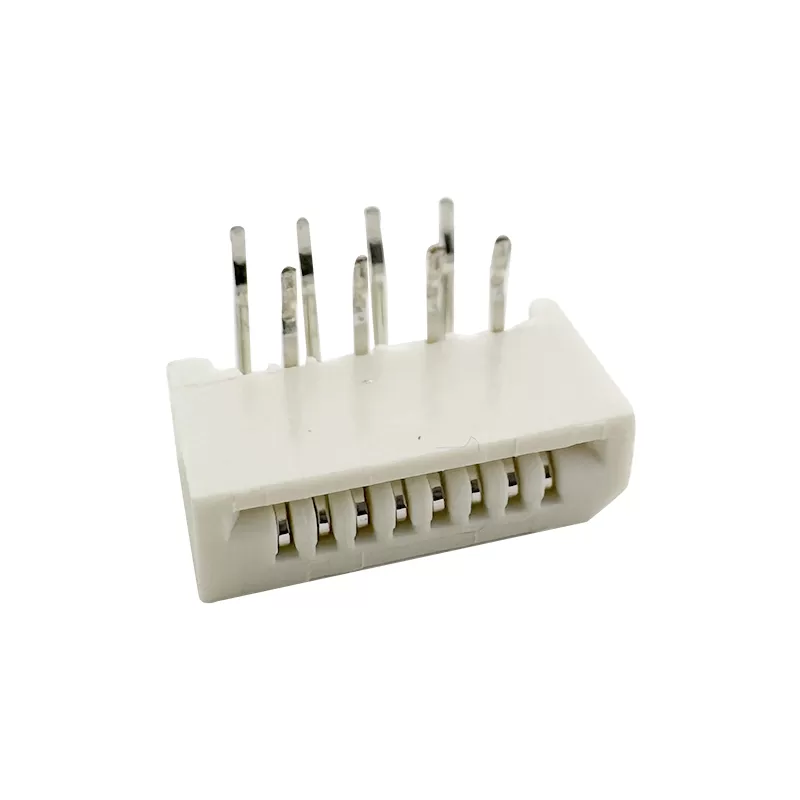

1.0mm Single Contact NO-ZIF Type H5.5mm FFC FPC Connectors :RHTAY40

Features

-Pitch: 1.0mm pitch, indicating the center-to-center distance between adjacent contacts.

-Connector Type: FPC (Flexible Printed Circuit) / FFC (Flat Flexible Cable) connectors designed with a NO-ZIF (Non-Zero Insertion Force) type, meaning they do not utilize a Zero Insertion Force mechanism for connecting FPC/FFC.

-Height: H5.5mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

-Mounting Style: These connectors are typically available in surface mount technology (SMT) configuration, allowing for direct placement on the surface of a PCB (Printed Circuit Board).

Applications

1. Industrial Equipment

2. Telecommunications

3. Consumer Electronics

4. Handheld Devices and Wearables

Specifications

1.0mm Single Contact NO-ZIF Type H5.5mm FFC FPC Connectors

Order Information

RHTAY40-XX-S-P-T

XX-No.of 04 ~ 30pin

S-Straight Pin   R-Right Angle Pin   T-SMT Pin

P-Positive needle   A-Anti-needle

R-Reel Packing   T-Tube Packing

Material:

Housing: PBT UL94V-0

Contact:  Phosphor Bronze

Plating: Tin Plated Over Nickel

Electrical Characteristics:

Voltage rating: 50 VAC

Current rating: 0.5 AMP

Dielectric Withstandingf Voltage: 500 VAC R.M.S.

Insulation resistance: 500m ohm Min

Contact resistance: 30m ohm. max.

Temperature range: -40℃ To +105℃

Technical Documents

Please contact us for more information.
