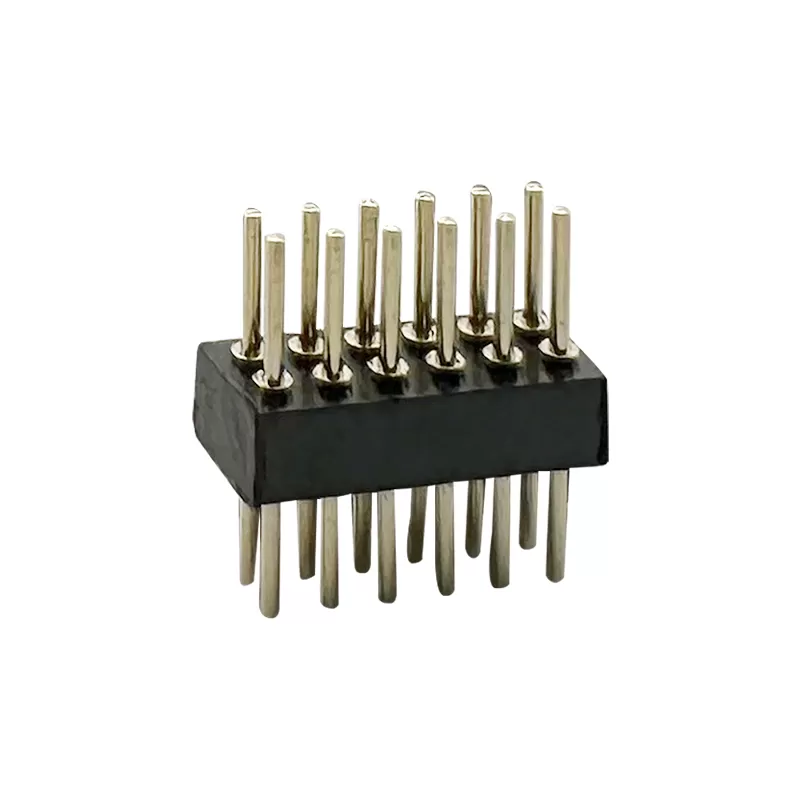

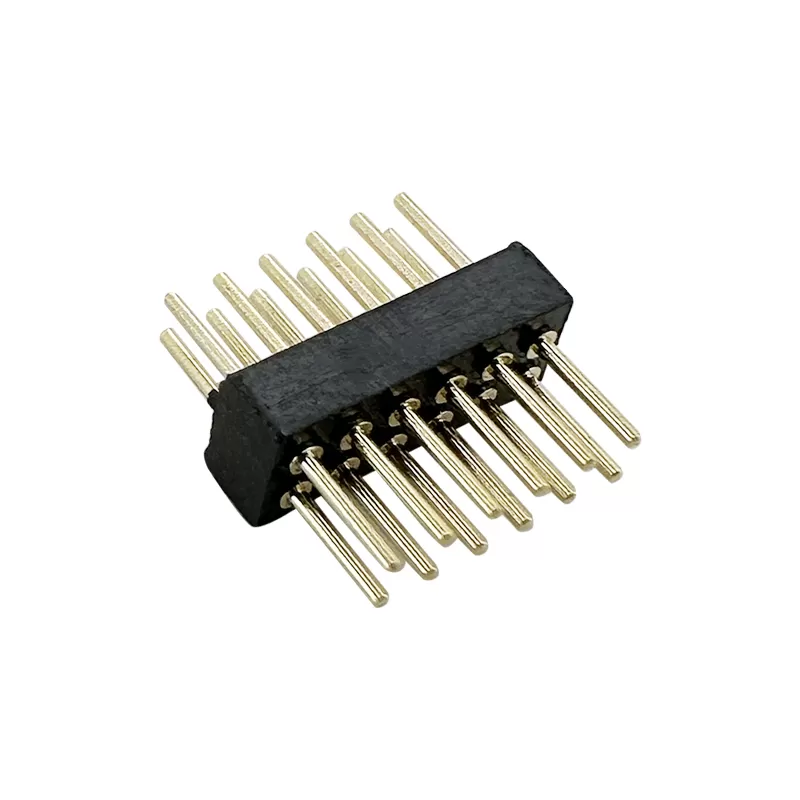

1.27mm IC Swiss Round Pin Header Connector:RHTAY09XC

Series P/N: RHTAY09XC

IC socket & PLCC socket & ZIF socket connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of IC socket & PLCC socket & ZIF socket connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pin Design: Round or cylindrical pins that ensure reliable electrical contact and mechanical stability when inserted into a mating female connector or socket.

-Material: Constructed from materials such as brass or phosphor bronze for the pins, with a plastic or thermoplastic housing. These materials are chosen for their durability, electrical conductivity, and resistance to heat and chemicals.

-Current Rating: Capable of handling different current ratings based on the pin size and configuration, ensuring reliable electrical performance.

-Mounting Style: Can be mounted directly onto the PCB through holes (THM) or soldered onto pads (SMT), providing secure attachment and stability.

Applications

1.Development Boards and Prototyping

2.Computer and Peripherals

3.Industrial Control Systems

4.Telecommunications and Networking Equipment

Specifications

1.27x1.27mm IC Swiss Round Pin Header Connector

Order Information

RHTAY09XC-2.2-1-XX-S

Height:2.2mm,1.9mm
