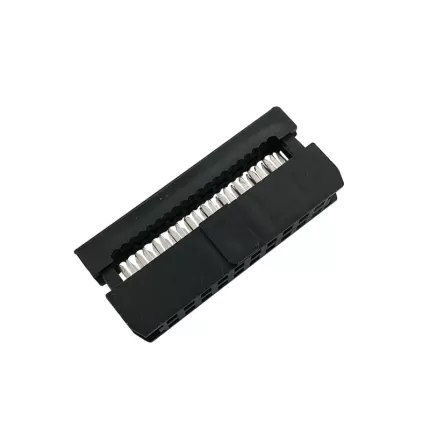

2.0mm Pitch IDC Socket Connector:RHTAY04B

Series P/N:RHTAY04B

IDC connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of IDC connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch: The pitch of 2.0mm refers to the distance between the centerlines of adjacent contacts (pins). This standard pitch ensures compatibility with other connectors and components designed for 2.0mm pitch spacing.

-Connector Type: IDC socket connectors consist of rows of sockets or receptacles designed to accept male ribbon cable connectors with insulation displacement contacts. They establish electrical connections between ribbon cables and PCBs (Printed Circuit Boards) or between PCBs and external components.

-Insulation Displacement Contact (IDC) Technology: IDC connectors feature contacts that pierce through the insulation of flat ribbon cables when inserted, establishing a gas-tight connection. This eliminates the need for stripping insulation from individual wires, simplifying assembly and reducing potential points of failure.

-Material and Construction:

Contacts: Made from phosphor bronze or beryllium copper for good electrical conductivity and durability. They are designed to pierce through the insulation of ribbon cables without damaging the conductors.

Housing: Made from high-temperature thermoplastics or thermoset plastics that provide mechanical strength, durability, and resistance to heat and chemicals.

Applications

1.Telecommunications Equipment

2.Computing Devices

3.Consumer Electronics

4.Automotive Electronics

Specifications

2.0mm Pitch IDC Socket Connector

Order Information:

RHTAY04B-XX-B

XX-No.of 06~80pin

Color: B=Black G=Gray L=Blue

Material:
