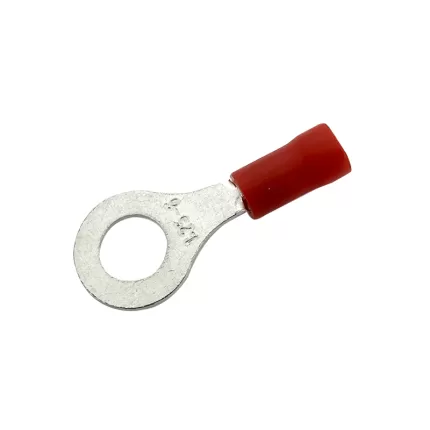

INSULATED RING TERMINALS:RHTHY01101

Series P/N:RHTHY01101

Non-insulated terminals is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Non-insulated terminals. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Crimp Type: The metal ring of the terminal is designed for crimping onto the stripped end of a wire. This crimp connection ensures a secure and stable electrical connection, minimizing resistance and ensuring reliable conductivity.

-Color Coding: Some insulated ring terminals may feature color-coded insulation sleeves. Color coding helps in identifying the wire size or the electrical circuit to which the terminal belongs, facilitating easier installation and maintenance.

-Material: Insulated ring terminals are often made from materials such as copper or brass for the metal ring, and the insulation sleeve is typically made from PVC (Polyvinyl Chloride), nylon, or heat-shrinkable materials. These materials provide good conductivity for the electrical connection while offering insulation to prevent short circuits or electrical shocks.

-Insulation: The insulation sleeve surrounds the crimped portion of the terminal where the wire is inserted and crimped. This insulation prevents the terminal from coming into contact with other terminals or conductive surfaces, thereby reducing the risk of electrical hazards.

Applications

1.Automotive and Marine Wiring

2.Electrical Panels and Control Cabinets

3.Industrial Machinery and Equipment

4.Power Distribution Systems

Specifications

INSULATED RING TERMINALS

Wire Range 22-16

Stud Size 1/4"

Color Red

Technical Documents

Please contact us for more information.Features
