INSULATED RING TERMINALS:RHTHY01113

Series P/N:RHTHY01113

Insulated terminals is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Insulated terminals. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Crimp Type: The metal ring of the terminal is designed for crimping onto the stripped end of a wire. This crimp connection ensures a secure and stable electrical connection, minimizing resistance and ensuring reliable conductivity.

-Color Coding: Some insulated ring terminals may feature color-coded insulation sleeves. Color coding helps in identifying the wire size or the electrical circuit to which the terminal belongs, facilitating easier installation and maintenance.

-Temperature Rating: Insulated ring terminals are designed to withstand a range of temperatures depending on the materials used for insulation. This ensures reliable performance in various environmental conditions, including high-temperature applications.

-Voltage Rating: Specifies the maximum voltage that the insulated ring terminal is rated for, ensuring safe operation within specified electrical parameters.

Applications

1.Telecommunications

2.Home Electrical Wiring

3.Industrial Machinery and Equipment

4.Power Distribution Systems

Specifications

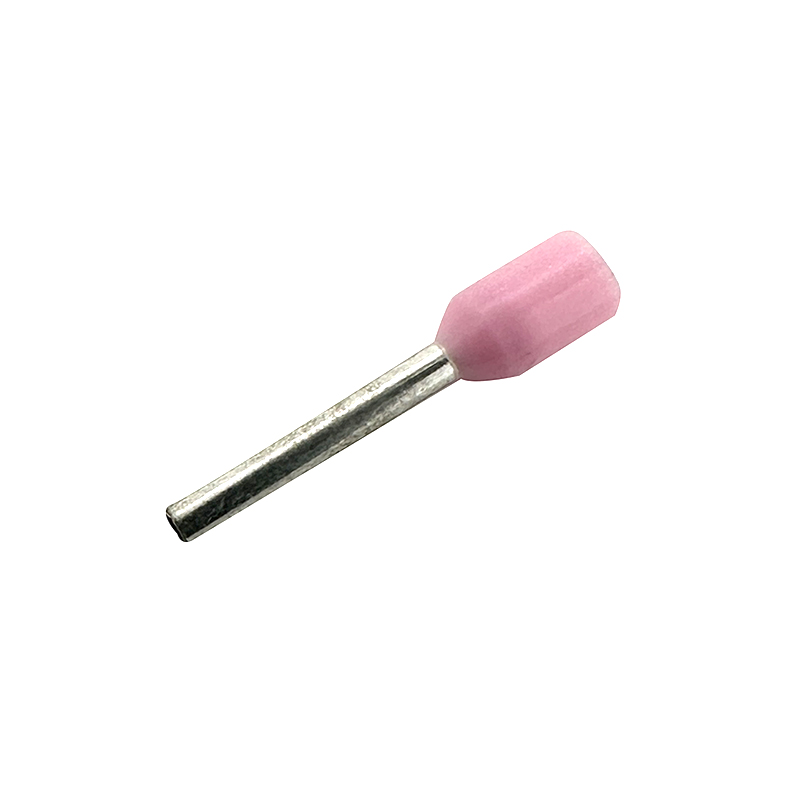

WIRE FERRULES

Wire Ferrules are used to provide a reliable wire contact for terminal block connections. They are crimped onto the wires using our 84-194-1 crimp tool.

Voltage Rating: 300V

Temperature Rating: 105°C

Connector Material: Copper

Insulation Material: Nylon

Technical Documents

Please contact us for more information.Features
