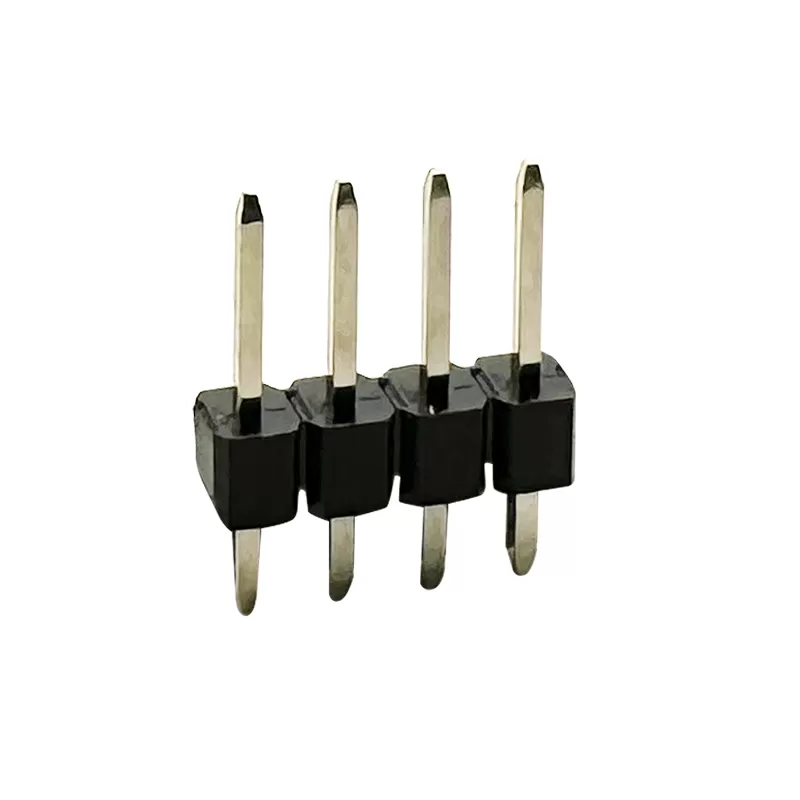

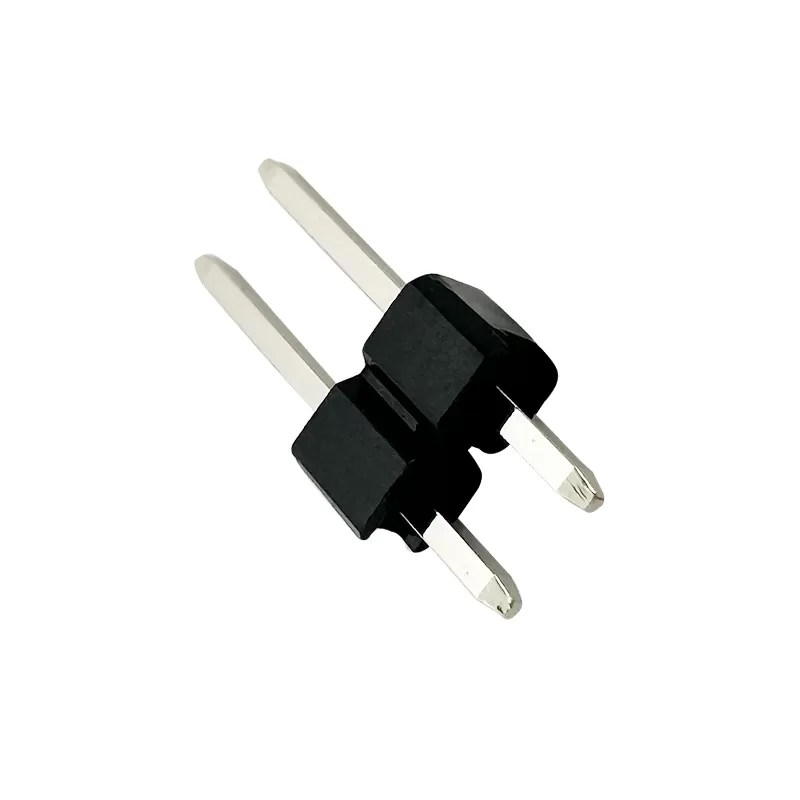

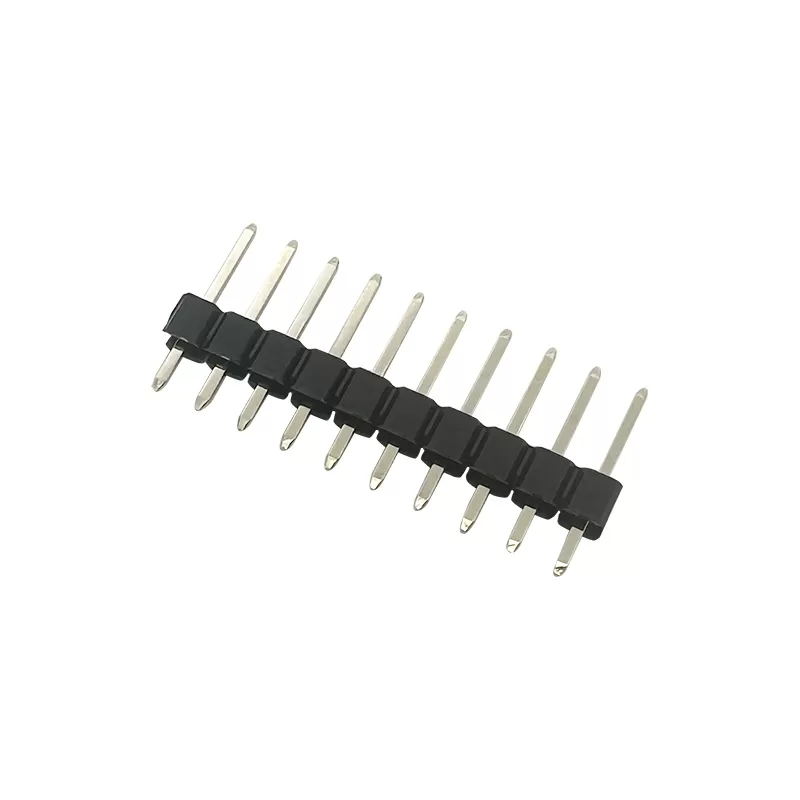

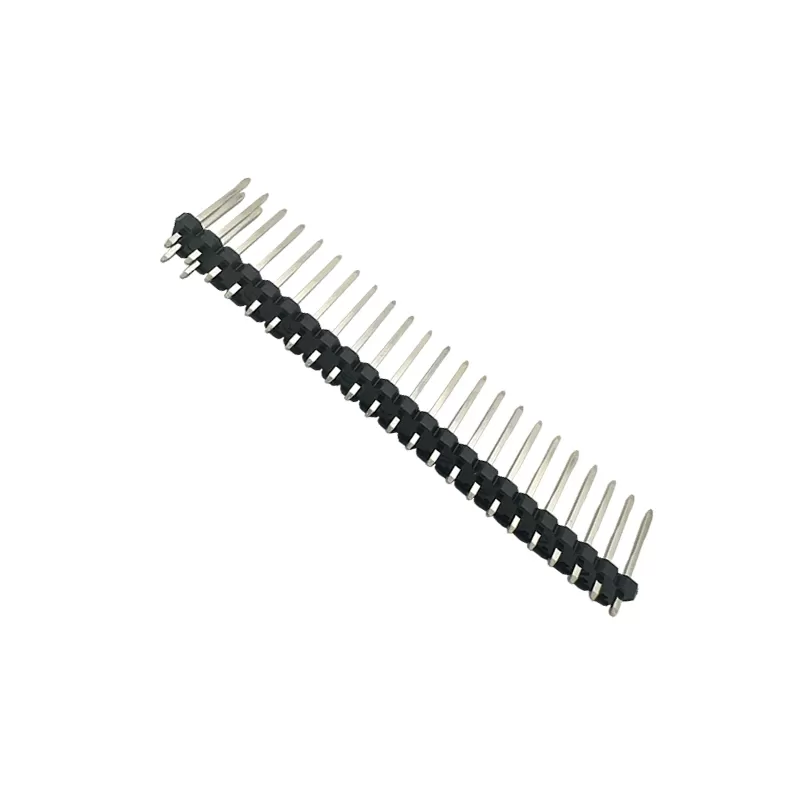

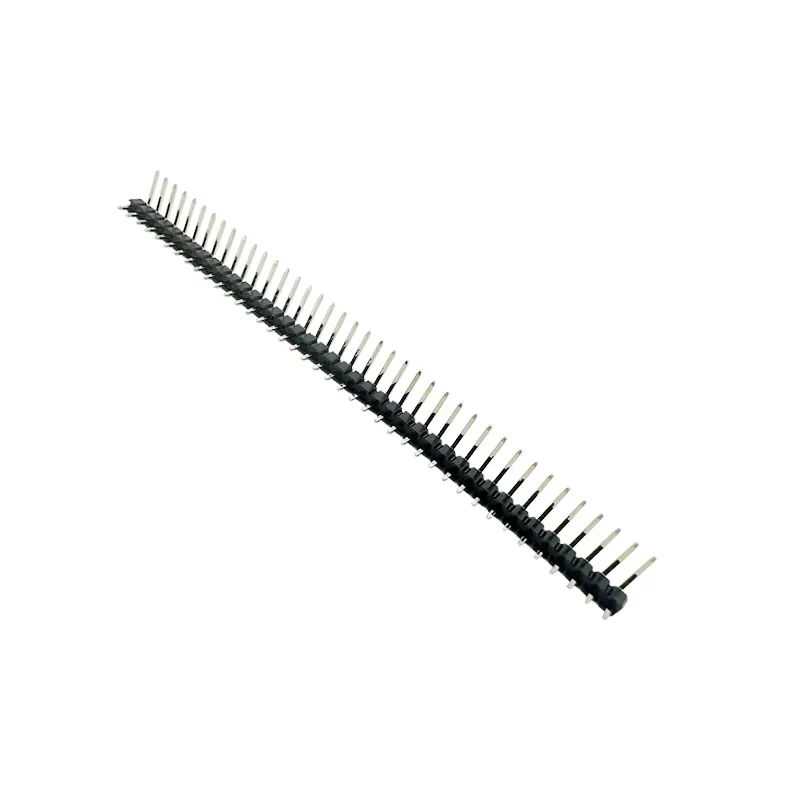

2.54mm Pitch Male Pin Header Connector :RHTAY07

Series P/N: RHTAY07

Male pin header connetors & Mini jumper connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Male pin header connetors & Mini jumper connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Number of Pins: Available in various configurations, ranging from single-row headers with a few pins to multi-row headers with numerous pins. The number of pins depends on the specific application requirements, accommodating different levels of connectivity.

-Connector Type: Male pin headers consist of rows of pins that extend from a plastic housing. These pins are designed to mate with corresponding female headers, sockets, or other components, providing a reliable electrical connection.

-Pin Material: Typically made from high-quality materials such as phosphor bronze or brass with tin or gold plating. These materials ensure good electrical conductivity, corrosion resistance, and durability.

-Housing Material: The housing is usually made from durable plastic materials that provide mechanical strength and insulation between adjacent pins.

Applications

1. Consumer Electronics

2. Telecommunications and Networking

3. Automotive Electronics

4. Test and Measurement Equipment

Specifications

2.54mm Pitch Pin Header Connector

Order Information

RHTAY07

Plastics Height:1.50mm、1.70mm、2.00mm、2.50mm

1-Single layer 2-Double layer
