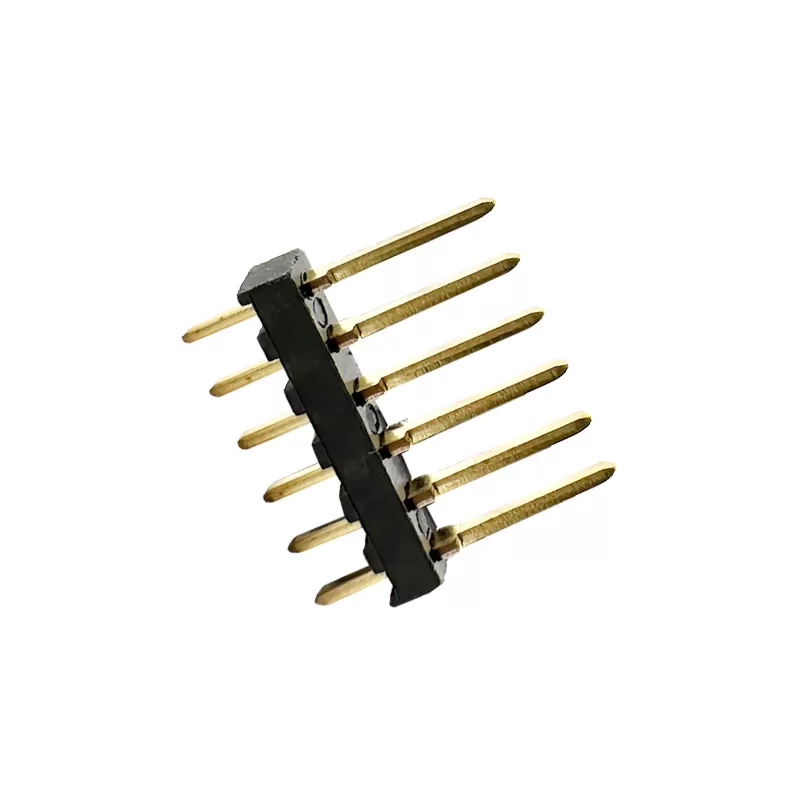

    3.96mm Pitch Pin Header Connector:RHTAY3.96D

    Series P/N: RHTAY3.96D

    Male pin header connetors & Mini jumper connectors  is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of Male pin header connetors & Mini jumper connectors. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -The larger pitch allows for larger gauge wires and more space between pins, making it ideal for higher current and robust electrical performance.

    -The male pin header features pins that protrude outward and are typically inserted into female socket connectors or PCB through-holes.

    -The pins are designed to offer strong mechanical connection, allowing for both permanent and removable connections.

    -The robust design ensures that the connector can withstand physical stresses, vibrations, and temperature fluctuations, making it suitable for demanding environments.


    Applications

    1. Power Distribution Systems

    2. Automotive Electronics

    3. Industrial Control Systems

    4. Consumer Electronics


    Specifications

    3.96mm Pitch Pin Header Connector

    Order Information

    RHTAY3.96D-1-XX-S-L1*L2*L3-SN

    3.96D-3.96mm pitch pin haeder

    1-Single layer

    XX-Total pin number  (No.of 1~30pin)

    S-Straight Pin  R1-Right Angle Pin  T-SMT Pin

    SIZE:L1*L2*L3

    Plating:G0=Gold Flash  G1=1u" Gold   G10=10u" Gold   G15=15u" Gold   G30=30u" Gold    SN=Tin

    Material:

    Standard:LCP

    Contact: Brass

    Insulator:Polyester,UL94V-0

    Electrical Characteristics:

    Rated Current:            5AMP

    Contact Resistance:    20mΩ Max

    Withstand Voltage:     500V  AC/DC

    Insulator Resistance: 1000MΩ Min

    Mechanical

    Operating Temperature: -40°C~+105°C

    Max.Processing Temp:230°C for 30-60

                seconds (260°C for 5 seconds)


    Technical Documents

    Please contact us for more information.
