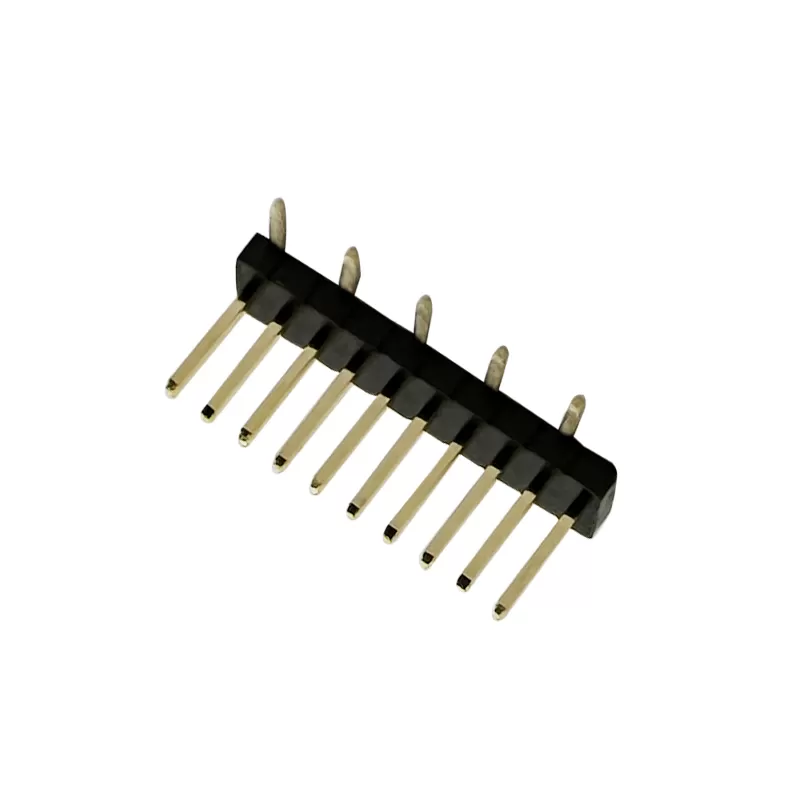

    5.08mm Pitch Pin Header Connector:RHTAY07M

    Series P/N: RHTAY07M

    Male pin header connetors & Mini jumper connectors  is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of Male pin header connetors & Mini jumper connectors. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -The 5.08mm pitch ensures that the pins are spaced further apart than smaller pitch connectors. This provides more room for larger gauge wires and higher current capacity, making it suitable for high-power applications.

    -The larger spacing makes it easier to work with when you need to make robust connections in high-current circuits or when using thicker wires.

    -The wider spacing allows for better heat dissipation, which is essential for managing high current.

    -The 5.08mm pitch pin header typically features male pins that extend outward and are designed to mate with female sockets or PCB through-holes.


    Applications

    1. Industrial Control Systems

    2. Power Supply Systems

    3. Automotive Electronics

    4. Consumer Electronics


    Specifications

    5.08mm Pitch Pin Header Connector

    Order Information

    207M-5.08mm pitch pin haeder

    Plastics height:2.50mm or 3.00mm

    1-Single layer

    XX-Total pin number  (No.of 1~20pin)

    S-Straight Pin  R-Right Angle Pin  T-SMT Pin

    SIZE:L1*L2*L3

    Plating:G0=Gold Flash  G1=1u" Gold   G10=10u" Gold   G15=15u" Gold   G30=30u" Gold    SN=Tin

    Material:

    Standard:LCP

    Contact: Brass

    Insulator:Polyester,UL94V-0

    Electrical Characteristics:

    Rated Current:            7AMP

    Contact Resistance:    20mΩ Max

    Withstand Voltage:     1000V  AC/DC

    Insulator Resistance: 1000MΩ Min

    Mechanical

    Operating Temperature: -40°C~+105°C

    Max.Processing Temp:230°C for 30-60

                seconds (260°C for 5 seconds)


    Technical Documents

    Please contact us for more information.
