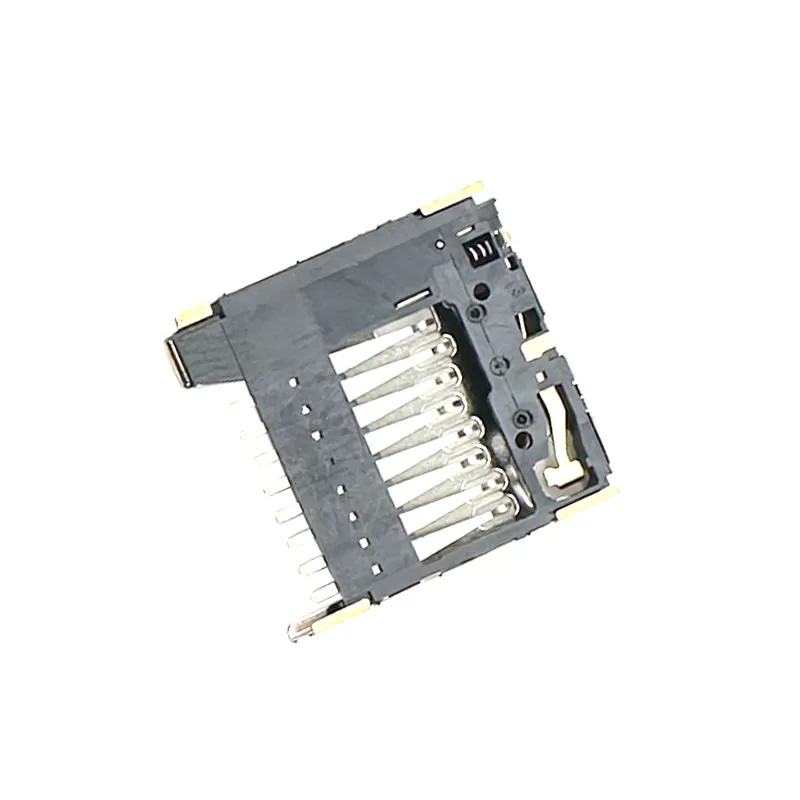

Micro SD card connector push push,H1.28mm,with CD pin:RHTAYD113

Series P/N:RHTAYD113

Memory card connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Memory card connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-Height: Specifically designed with a low profile height of 1.28mm, making it suitable for compact electronic devices where space is limited.

-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.

-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

Applications

1.Embedded Systems and IoT Devices

2.Automotive Applications

3.Consumer Electronics

4.Medical and Healthcare Devices

Specifications

Micro SD card connector push push,H1.28mm,with CD pin

Material:

Insulator:High Temperature Thermoplastic LCP SZ6505,UL94V-0,Black.

Contact:Berylliun Copper (7035-TM06,T=0.15mm),

Plated 80u" min Ni overall plated 1u" min Au over Ni on solder area.
