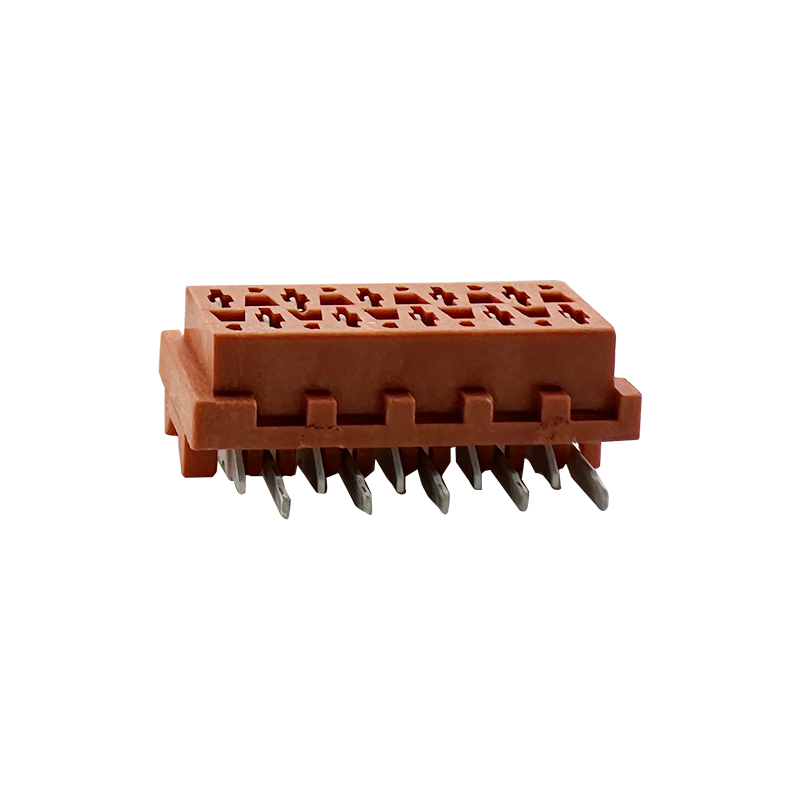

Micro Match Connector Female SMT:RHTAY04G

Features

-Connector Type: Micro-Match Connector Female SMT.

-Design: Compact and low-profile design suitable for surface-mounting directly onto PCBs (Printed Circuit Boards), saving board space and facilitating automated assembly processes.

-Termination Type: Surface-Mount Technology (SMT), allowing for direct placement and soldering onto PCB pads without the need for through-holes.

-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may be available depending on the specific model.

Applications

1.Automotive Electronics

2.Industrial Equipment

3.Telecommunication Devices

4.Medical and Laboratory Equipment

Specifications

Micro Match Connector Female SMT

Order Information:

RHTAY04G-XX-R-口-C-R

XX-No.of 04~26pin

Color: R=Red  B=Black

Material:NONE=PA9T E=PA46

Packing: TC=Cap+Tube   C-R=Cap+Reel

Material:

Housing: PA46/PA9T UL94V-0

Contacts: Phosphor bronze

Plating:Sn over 50u" nickel

Electrical Characteristics:

Current Rating: 1.0 AMP

Voltage Rating: 230V AC/DC

Withstand voltage:500V AC/Minute

Contact Resistance: 20m Ohm max.

Insulator Resistance: 1000M Ohm min.

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.
