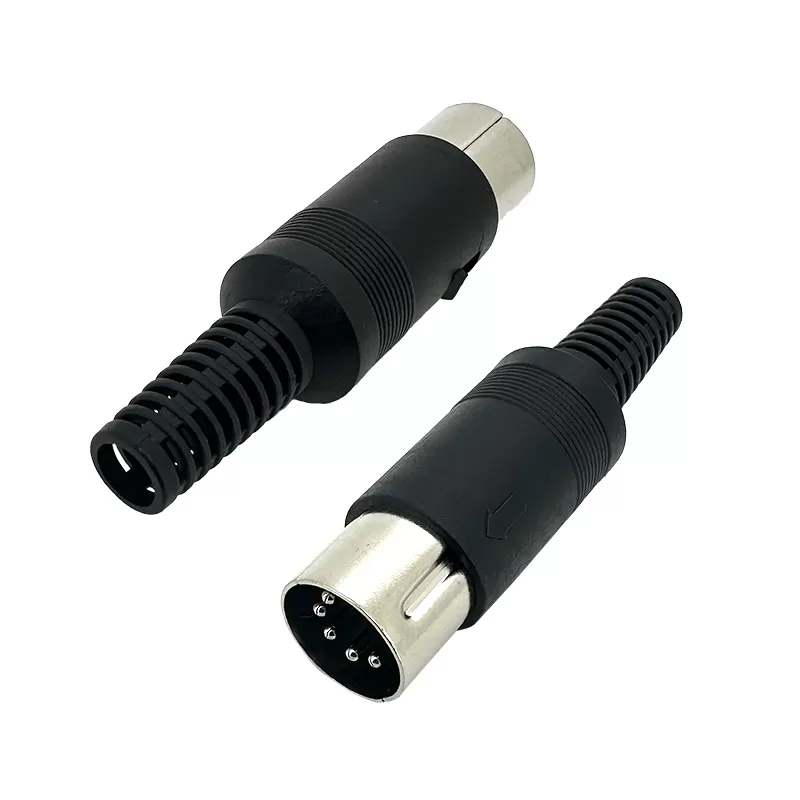

    Din Plug Connector :RHTAYB95

    Din Plug Connector :RHTAYB95

    Series P/N: RHTAYB95

    Mini din connectors*Din connectors is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of Mini din connectors*Din connectors. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Termination Type: DIN plugs may have solder cup, crimp, or PCB mount terminations, depending on the application and installation requirements. This versatility allows for easy integration into different electronic designs.

    -Locking Mechanism: Many DIN plugs feature a locking mechanism that secures the plug in place once inserted into the corresponding DIN socket. This locking mechanism prevents unintended disconnection due to vibrations or movements, ensuring a stable and reliable connection.

    -Material and Durability: DIN plugs are typically made from robust materials such as metal (e.g., nickel-plated brass) or high-temperature plastics. This construction ensures durability and resistance to mechanical stress and environmental factors, making them suitable for use in various industrial and commercial applications.

    -Polarity: DIN plugs may include polarity indicators (center-positive or center-negative) to ensure correct alignment with the corresponding socket. This prevents potential damage to devices from reversed polarity and ensures proper electrical connectivity.


    Applications

    1.Industrial Automation

    2.Automotive Electronics

    3.Medical Devices

    4.Instrumentation and Measurement


    Specifications

    in Plug Connector:

    How to order Example:

    RHTAYB95-M-7-B

    M-MALE  F-FEMALE

    7=7 PIN Or 3PIN 4PIN 5PIN 6PIN 8PIN

    B=BLACK

    MATERIAL:

    COVER : PE 2L

    SHELL : ABS

    METAL SHIELD : BRASS NICKEL PLATED

    HOUSING : NYLON66 GF

    CONTACT: BRASS SILVER PLATED

    SPECIFICATIONS:

    RATING : 100V AC 1A MAX OR 12V DC 2A MAX.

    INSULATION RESISTANCE : 50M OHM MIN AT 500V DC.

    DIELECTRIC STRENGTH : 500V AC / 1 MINUTE.


    Technical Documents

    Please contact us for more information.Features
