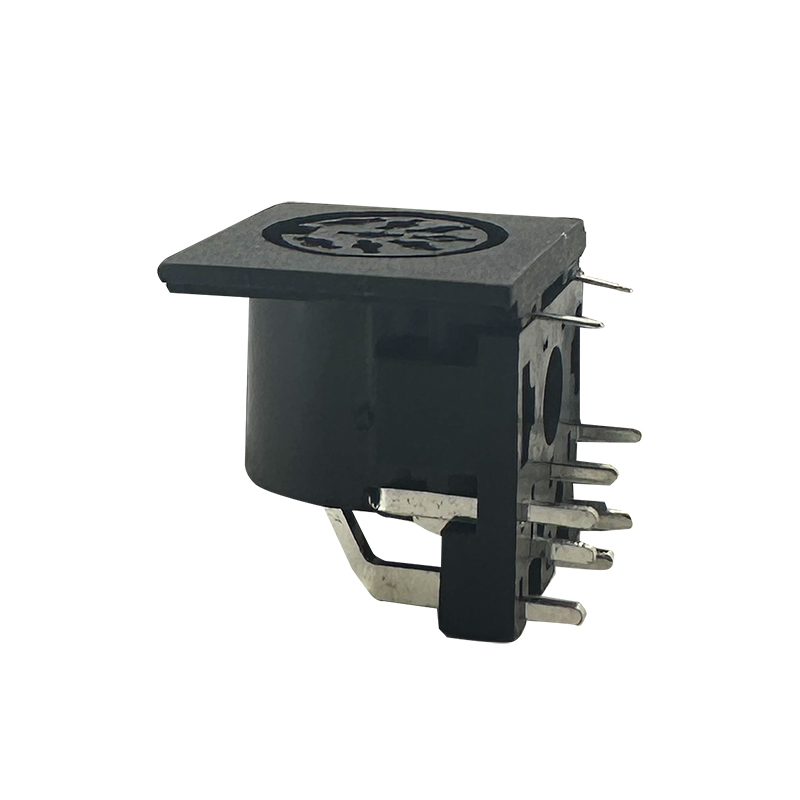

    Din Socket :RHTAY93A-5.0/RHTAY93L-5.0

    Din Socket :RHTAY93A-5.0/RHTAY93L-5.0

    Series P/N:RHTAY93A-5.0/RHTAY93L-5.0

    Mini din connectors*Din connectors is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of Mini din connectors*Din connectors. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Compatibility: DIN sockets are widely compatible with various devices, making them suitable for diverse applications and ensuring that they can be used with different equipment and connectors.

    -Female Receptacle: A DIN socket typically serves as the female counterpart in a connection, providing a receptacle for the male DIN plug. This allows secure connections between the two components.

    -Contact Points: The socket contains multiple internal contact points that make a stable electrical connection with the corresponding pins of the male plug, ensuring reliable signal or power transfer.

    -Vibration and Shock Resistance: Many DIN sockets are engineered to resist vibrations and mechanical shocks, which makes them ideal for use in industrial environments or in mobile equipment.


    Applications

    1.TAudio Equipment

    2.Industrial Control Systems

    3.Industrial Control Systems

    4.Computers and Peripherals


    Specifications

    Din Socket

    How to order Example:

    RHTAY93L-5.0-3-B

    93A=Without Phosphor Bronze Cover   93L=With steel Phosphor Bronze Cover

    Pitch:5.0mm

    3-3PIN  Or-4 Pin,5 Pin,6 Pin,7 Pin,8 Pin

    B=Black

    MATERAL

    Insulator:PBT UL 94V-0 or PPS

    Shell:Brass,Nickel / Tin Plated or Tin Plated

    Contact:Phosphor Bronze,Gold /Tin plated

    ENVIRONMENTAL

    Operating Temperature:-55 C ~ + 105 C

    ELECTRICAL

    Contact current Rating:1 A 100V AC

    Dielectric Withstanding:250V AC 1 min.

    Insulation Resistance:5000M OHM min AT 500V DC

    CONTACT RESISTANCE:30m ohm Max


    Technical Documents

    Please contact us for more information.Features
