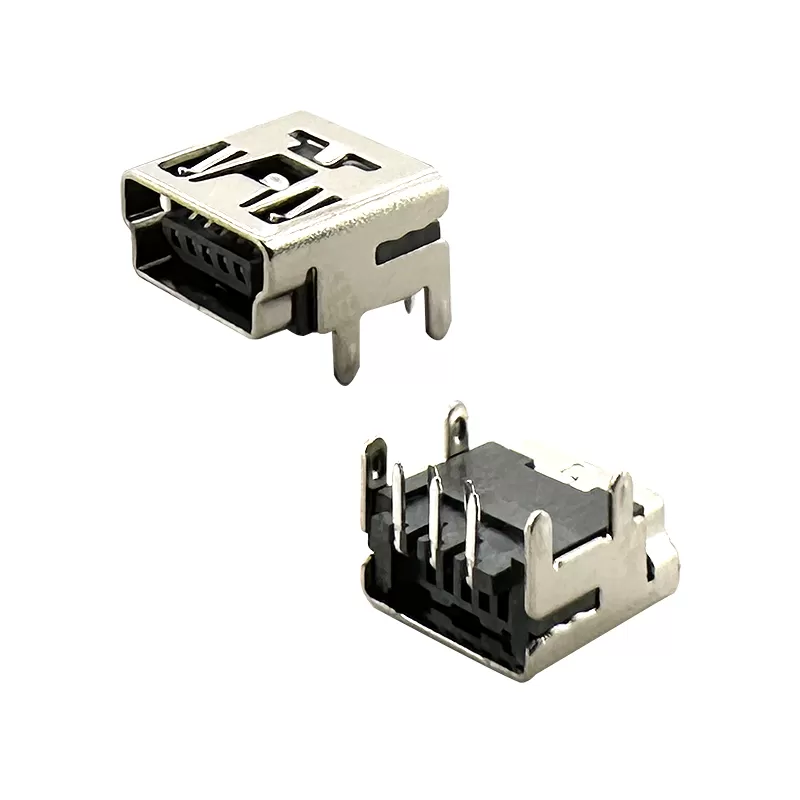

5P B type R/A dip 90 Mini USB connector socket:RHTAY29-5FA

Features

-DIP (Dual In-line Package): This indicates that the connector has through-hole mounting pins, which are inserted into holes on a PCB and soldered to create a stable electrical and mechanical connection. DIP connectors are typically used in applications where a more secure mounting method is required.

-90 Degrees: The "90" in "dip 90" refers to the angle of the connector's pins relative to the body of the connector. In this case, it indicates that the pins are angled at 90 degrees, allowing for right-angle mounting on the PCB.

-Number of Pins (5P): This specifies that the connector has 5 pins. Mini USB connectors typically have 5 pins arranged in a specific configuration: one for VCC (power), one for ground, and three for data (D+, D-, and sometimes ID pin for OTG functionality).

-Durability: These connectors are designed for repeated insertion and removal cycles, ensuring durability and reliability over time. They are built to withstand the mechanical stresses associated with regular use in portable electronic devices.

Applications

1.Consumer Electronics

2.DIY Electronics Projects

3.Prototype and Development

4.Specialized Equipment

Specifications

Material

Housing:Hing Temperature Thermoplastic,

UL94V-0 LCP,Black.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680.

Finish:

Contact:Piated Gold In Mating Area;Tin On Solder Tolls.

Shell:Nickel Plating.

Electrical:

Current Rating:1.0A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:50mΩ Max.

Dielectric Withstanding Voltage:300 V AC AT Sea Level.

Insulation Resistance:100MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.0kgf Max.

Unmated Force:0.7kgf Min.

Terminal Retenion:0.5kgf Min.

Technical Documents

Please contact us for more information.
