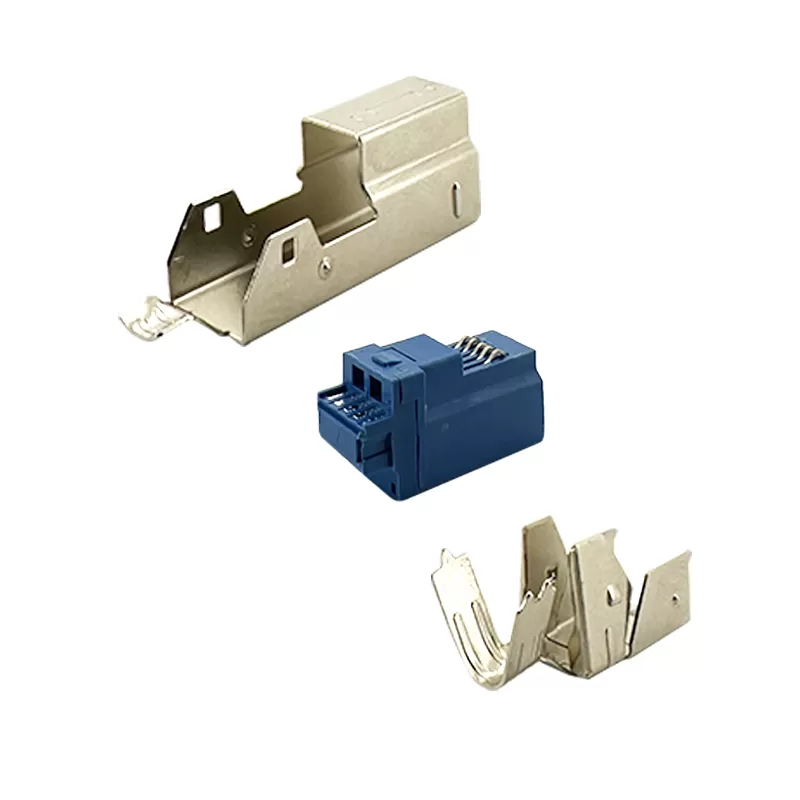

B Male Solder USB 3.0 connector:RHTAYA48

Series P/N: RHTAYA48

USB 3.0 connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of USB 3.0 connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-The B Male USB 3.0 connector supports the USB 3.0 standard, offering data transfer speeds of up to 5 Gbps, which is much faster than the 480 Mbps provided by USB 2.0.

-This feature makes it ideal for permanent installations in devices like external hard drives, printers, scanners, and other USB peripherals.

-These connectors are typically gold-plated or nickel-plated for better conductivity and resistance to corrosion, ensuring long-term performance, especially in industrial or high-use environments.

-In addition to the two data pairs (Data+ and Data-), the extra pins are used for power (5V), ground, and additional super-speed signals.

Applications

1.External Storage Devices

2.Printers and Scanners

3.Networking Equipment

4.Industrial Equipment and Automation

Specifications

Material

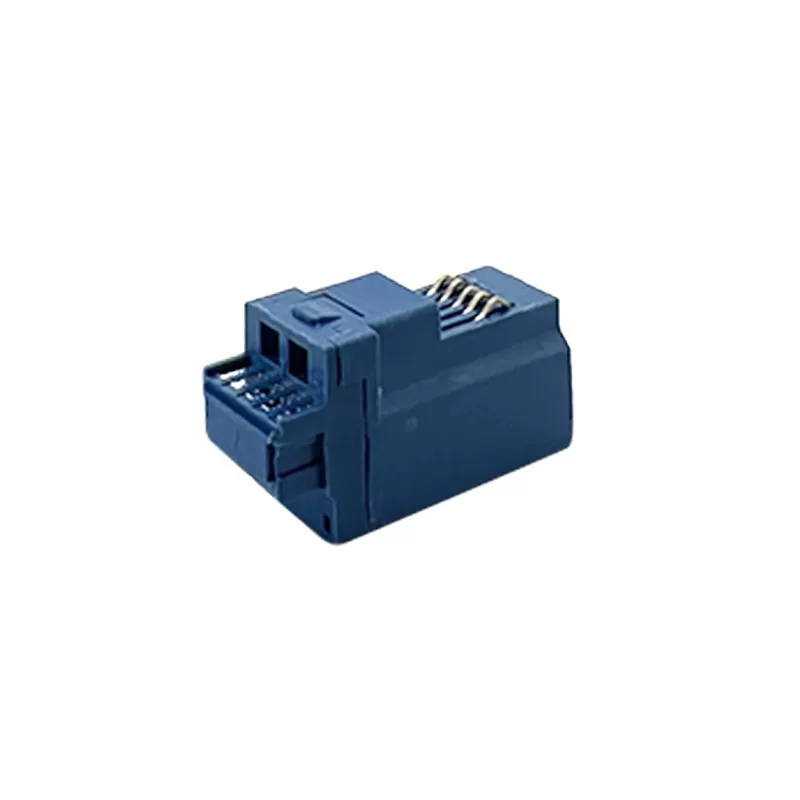

Housing: 30% Glass filled PBT UL94V-0

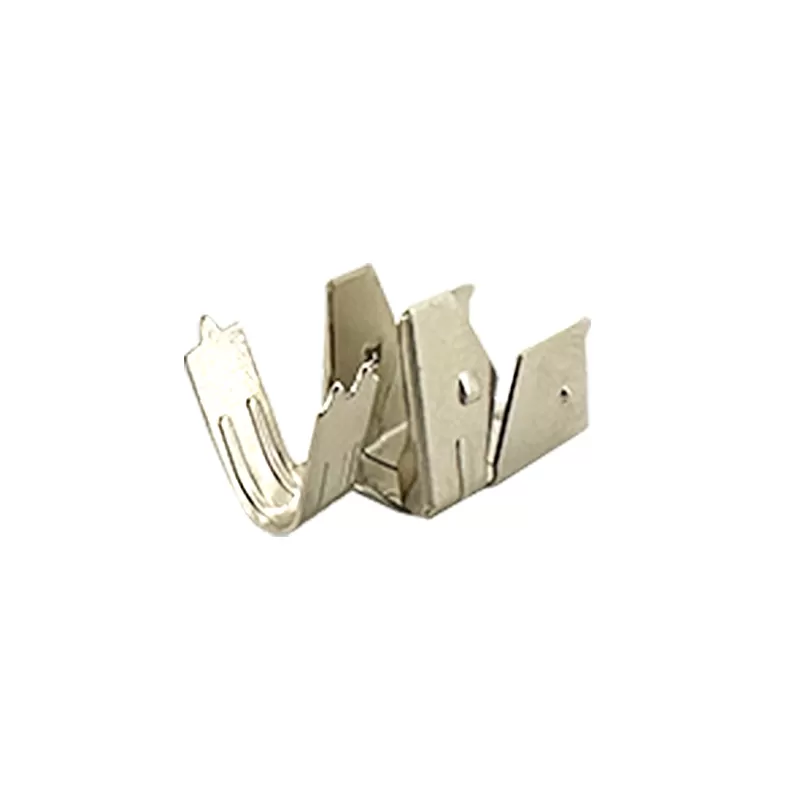

Contacts: copper

Pin Plated: Gold 3u" over 50u" nickel

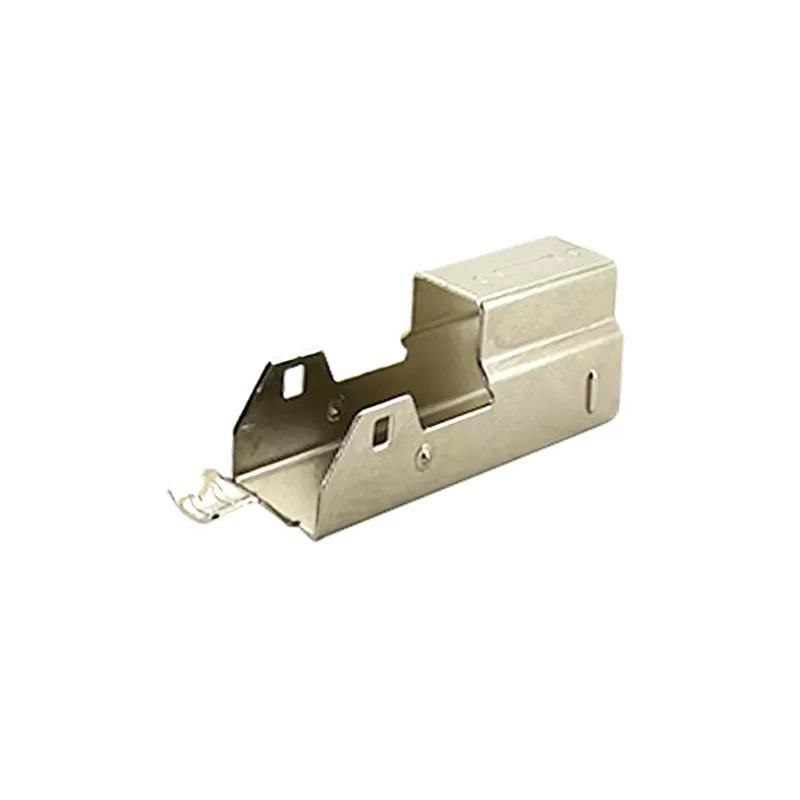

Shell: Spcc,Nickel plated
