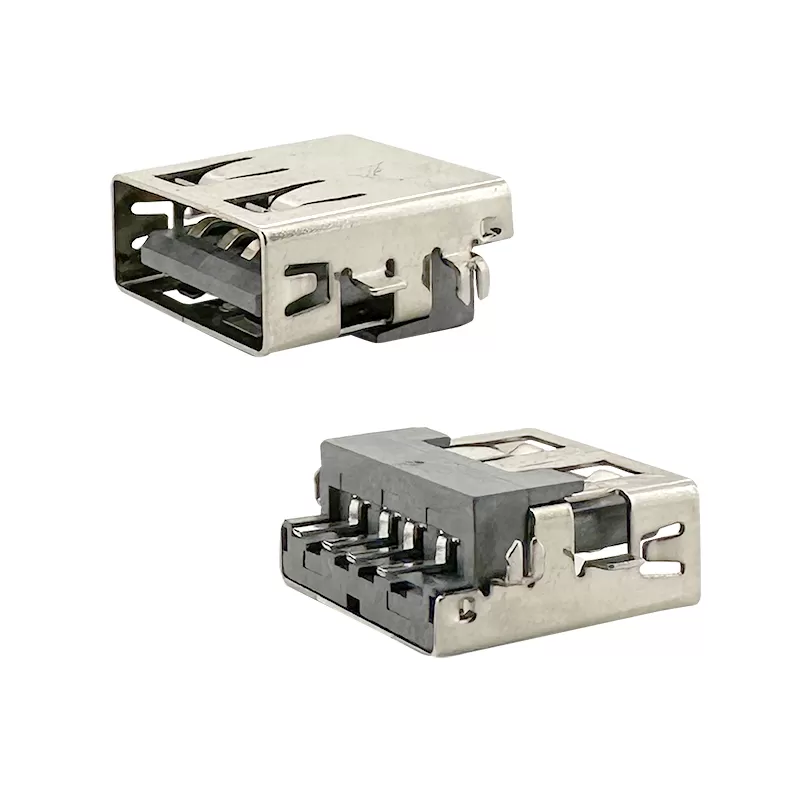

MID MOUNT 3.4mm A Female SMD USB Connector :RHTAY816

Features

-3.4mm Height: Indicates the profile or height of the connector above the PCB surface once mounted. This measurement is crucial for determining the space requirements and clearance in the device design.

-Compact Size: The 3.4mm height suggests a compact design suitable for applications where space is limited or where a low-profile connector is preferred.

-Robust Design: USB connectors are designed to withstand repeated insertions and removals, ensuring durability and reliability in various operating conditions.

-Versatile Application: Used in a wide range of electronic devices where USB connectivity is required, including computers, laptops, tablets, smartphones, gaming consoles, peripherals (such as keyboards, mice, printers), and consumer electronics.

Applications

1.Laptops and Desktop Computers

2.Tablets and Smartphones

3.Consumer Electronics

4.Gaming Consoles

Specifications

Material

Housing:Hing Temperature Thermoplastic,

            UL94V-0 LCP,Black/White.

Contact:Copper Alloy C2680.

Shell:Copper Alloy C2680/SPCC.

Finish:

Contact:Plated Gold In Mating Area;Tin On Solder Tails.

Shell:Nickel Plating.

Electrical:

Current Rating:1.5A/Contact Terminal.

Voltage Rating:30V DC

Contact Resistance:30mΩ Max.

Dielectric Withstanding Voltage:500 V AC AT Sea Level.

Insulation Resistance:1000MΩ Min.

Connector Mate and Unmated Force

Mate Force:3.75kgf Max.

Unmated Force:1.02kgf Min.

Terminal Retenion:1.2kgf Min.

Technical Documents

Please contact us for more information.
