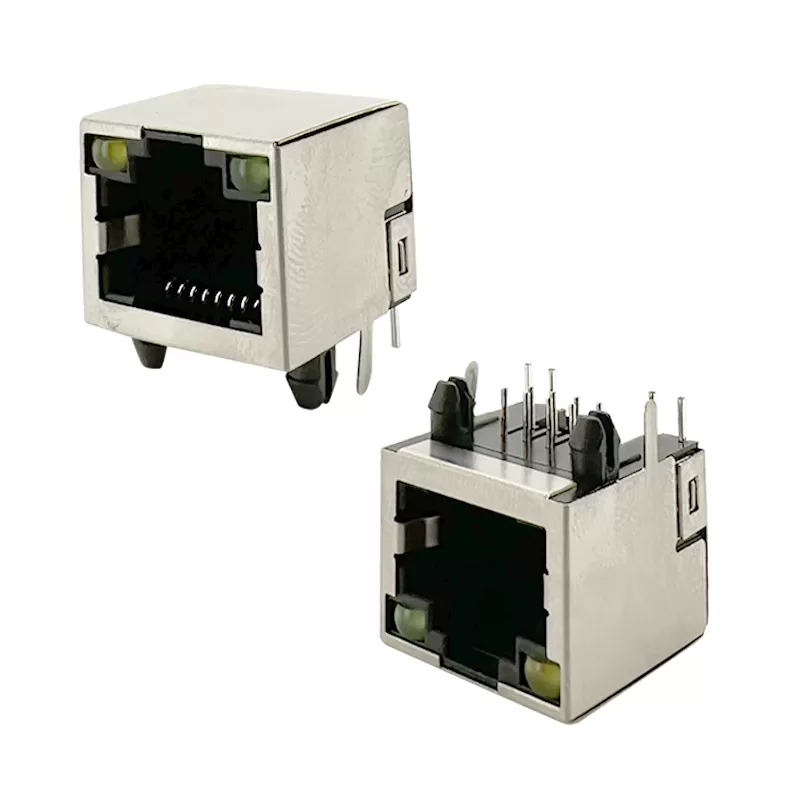

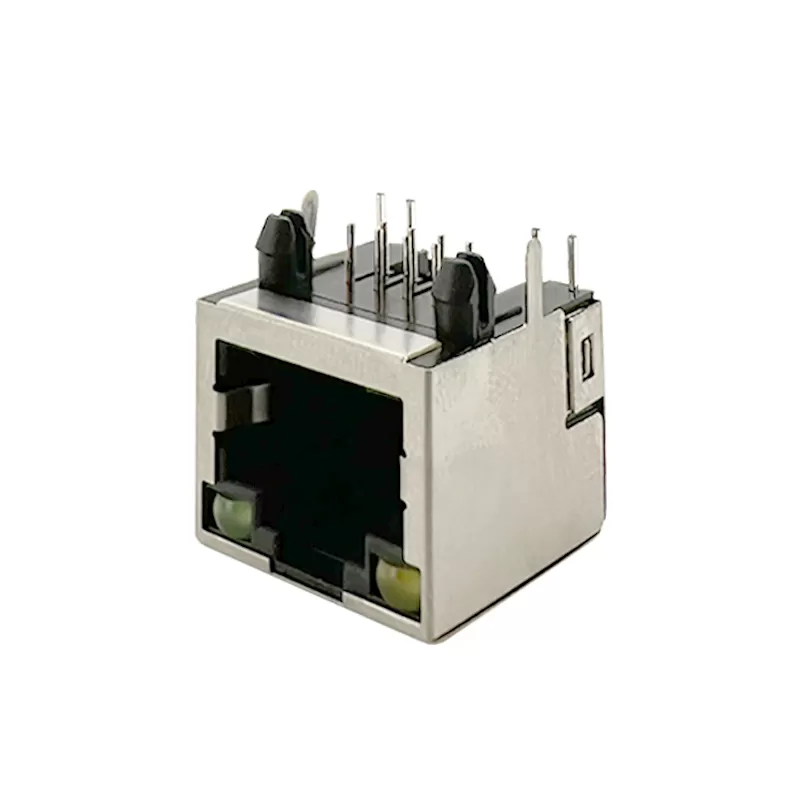

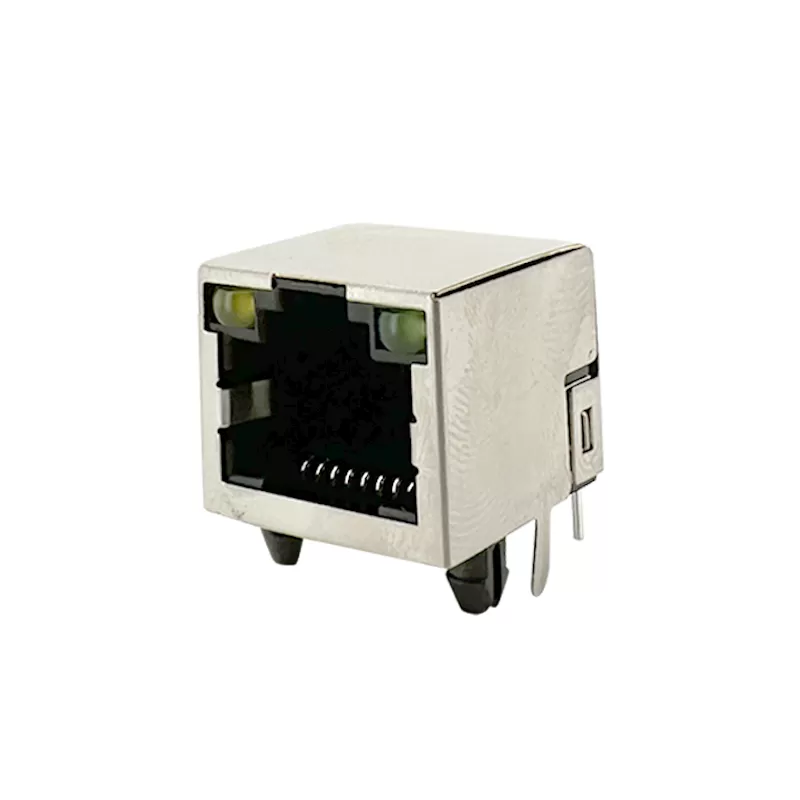

RJ45 Modular Jack with LED/Transformer (Right PCB Mount):RHTLYL004

Features

-Integrated Transformer: The jack includes an integrated transformer (also known as a magnetics module). The transformer is crucial for isolating and balancing the signal between Ethernet devices, ensuring reliable data transmission while protecting against electromagnetic interference (EMI) and cross-talk.

-PCB Mounting: Designed for surface-mounting on printed circuit boards (PCBs), the jack features solder terminals or pads that facilitate secure attachment to the PCB. This mounting method ensures mechanical stability and electrical connection, suitable for high-density PCB layouts in networking equipment.

-Compatibility: The RJ45 modular jack with LED and transformer supports various Ethernet standards, including 10/100 Mbps (Fast Ethernet) and 1000 Mbps (Gigabit Ethernet). It complies with industry standards and specifications to ensure interoperability with Ethernet devices and networks.

-Durability and Reliability: Constructed from durable materials, such as high-temperature plastics and metal contacts, the jack is designed to withstand repeated insertions and removals of Ethernet cables. This durability ensures long-term reliability in networking equipment and infrastructure.

Applications

1.Ethernet hubs and repeaters

2.IP cameras and surveillance systems

3.VoIP phones and communication devices

4.Industrial automation and control systems

Specifications

RJ45 Modular Jack with LED/Transformer (Right PCB Mount)

Technical Documents

Please contact us for more information.Features
