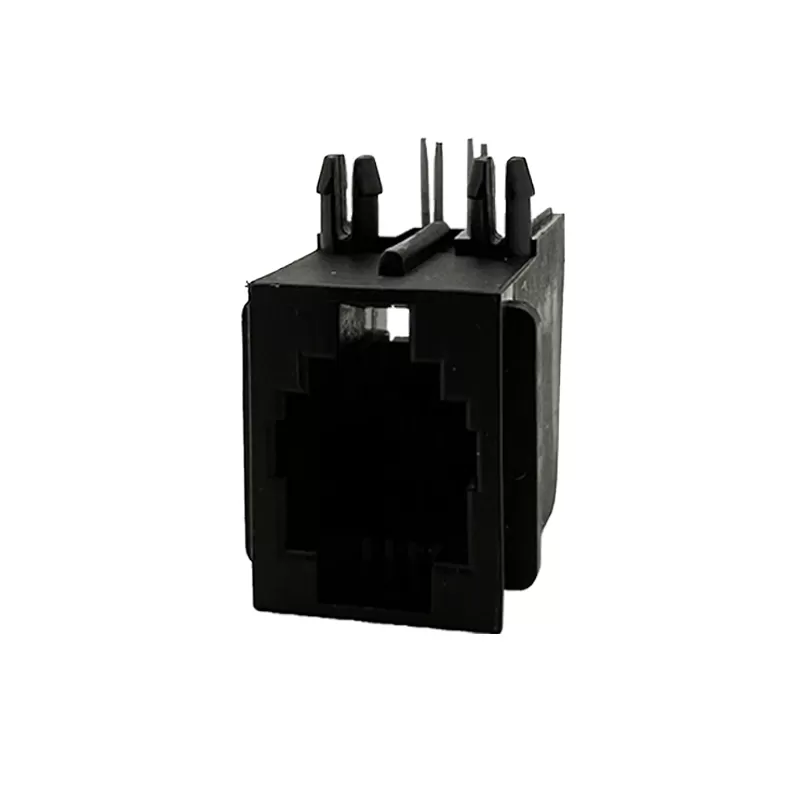

RJ11-4P4C Jack:RHTLY43-4P4C

Series P/N:RHTLY43-4P4C

Modular jacks is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Modular jacks. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Configuration: 4P4C (4 Position 4 Conductor), meaning it has 4 positions and 4 conductors (pins). This configuration is typical for single-line telephone connections.

-Compatibility: Designed to accept standard RJ11 modular plugs, ensuring compatibility with various telephone devices, including analog phones, fax machines, and modems.

-Size: Compact and standardized size suitable for integration into telephone equipment, wall plates, patch panels, and other devices requiring telephone connectivity.

-Termination: Allows for easy termination of telephone cables using IDC (Insulation Displacement Connection) terminals or soldering, depending on the installation method.

Applications

1.Residential Telephony

2.Office Telephony

3.Retail and Hospitality

4.Industrial Applications

Specifications

Material:

Housing: PBT+Glass Filled Polyester

Flammability Rating : UL94V-0

Contacts: Phosphor Bronze

Plating: Gold Plating

Electrical:
