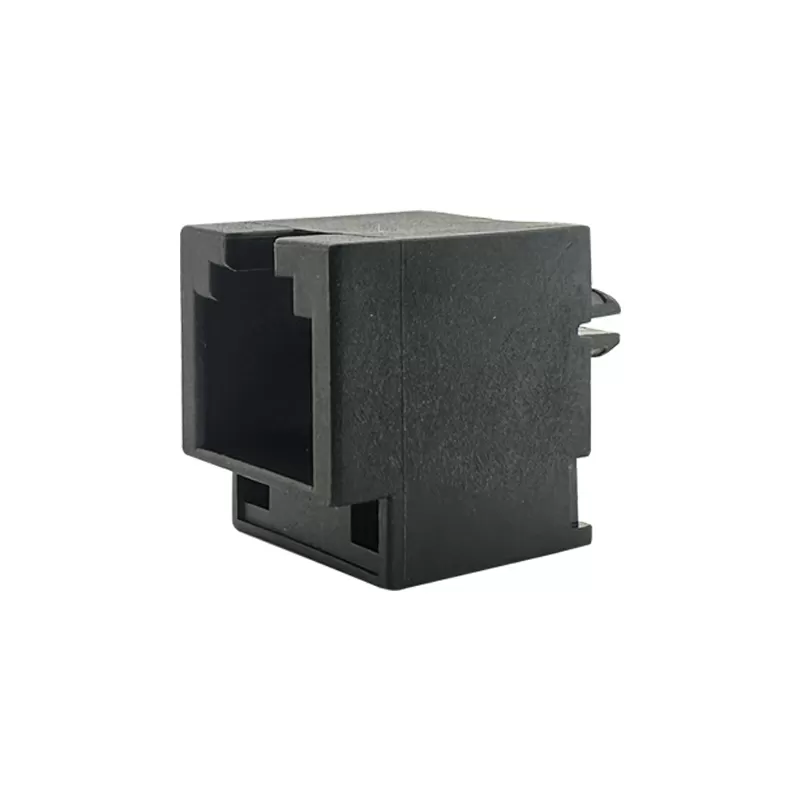

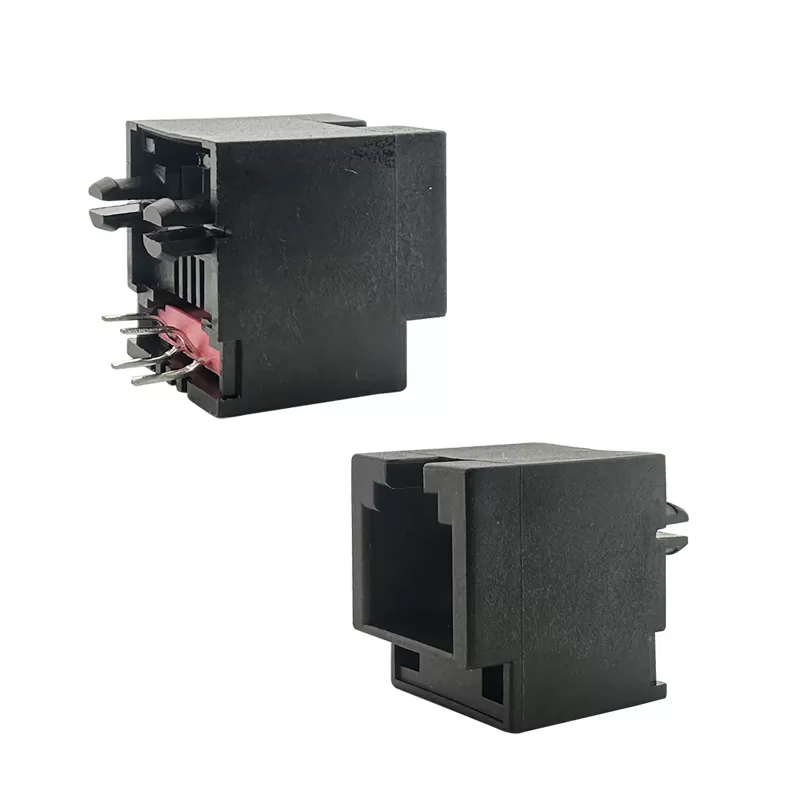

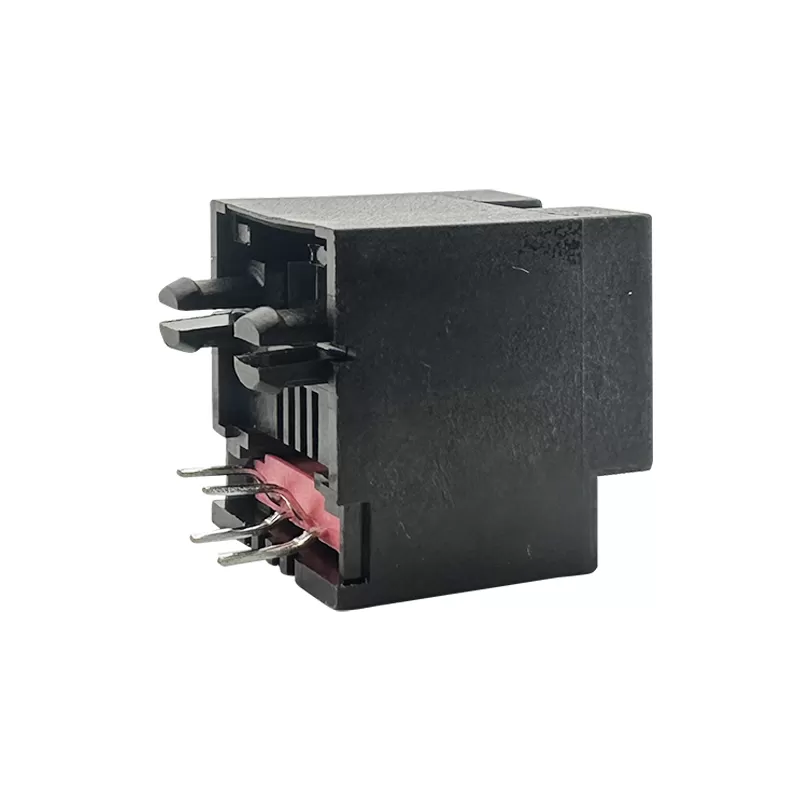

RJ11 4P4C Jack Vertical :RHTLY52-4P4C

Features

-The vertical mounting allows the jack to be mounted upright on the PCB, making it ideal for compact applications where space efficiency is important. This design also ensures that the connector is easily accessible from the top of the board.

-Vertical mounting is ideal for use in situations where the cables will be coming from the top or side, offering a clean and organized installation.

-The materials used help reduce wear and tear from repeated insertions of the corresponding RJ11 plugs, contributing to a long service life.

-It is often used in landline telephones, fax machines, modems, and other devices that require basic telephone signal transmission.

Applications

1.Telephones

2.Telephone Jacks in Home and Office

3.Alarm Systems

4.Home Automation & IoT Devices

Specifications

Material:

Housing:    Engineering Thermoplastic

Flammability Rating : UL94V-0

Contacts:  Phosphor Bronze

Plating:     Gold Plating Over Nickel in Contact.

                Tin Plating Over Nickel in Solder Area.

Electrical:

Voltage Rating:           125VAC

Current Rating:           1.5A

Contact Resistance:    40mΩ Max.

Insulation Resistance: 1000MΩ Min. @500VDC

Dielectric Strength:    1000VAC Rms 60Hz,1 Min.

Durability:                  750 cycles Min.

Operation Temperature:-20°C~+75°C

Technical Documents
