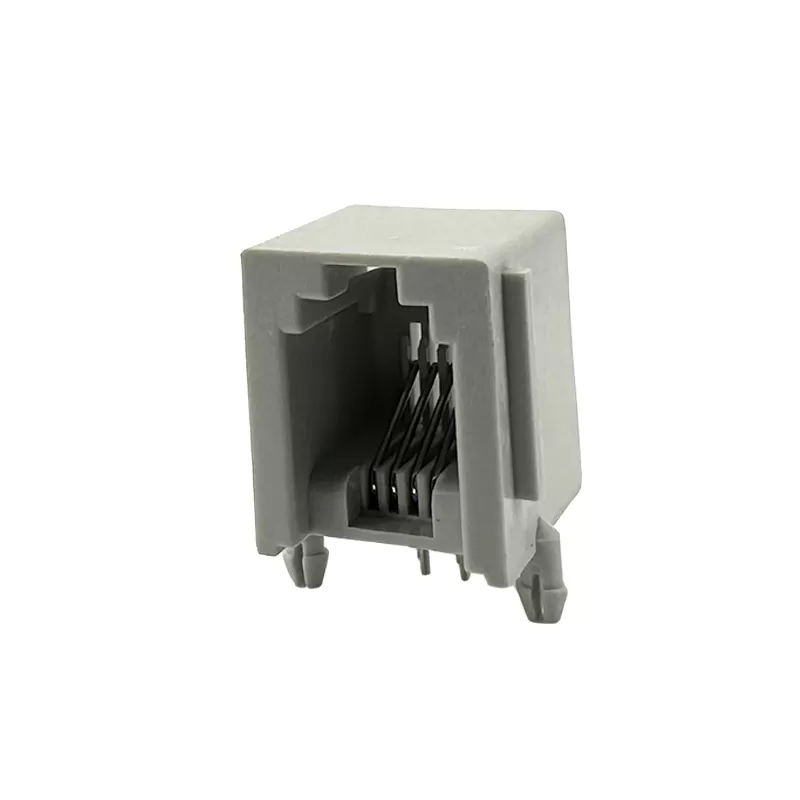

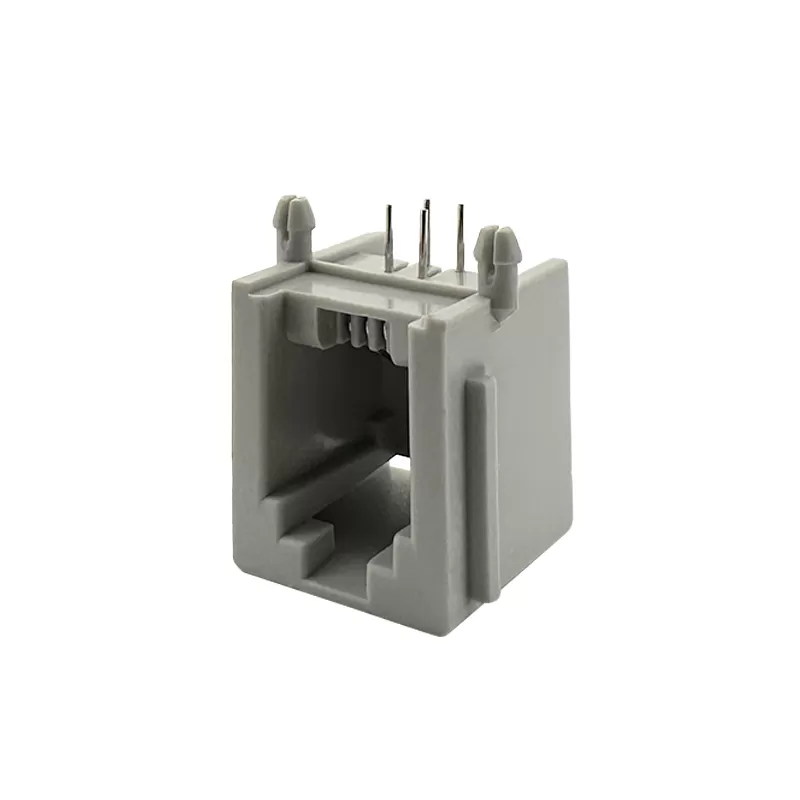

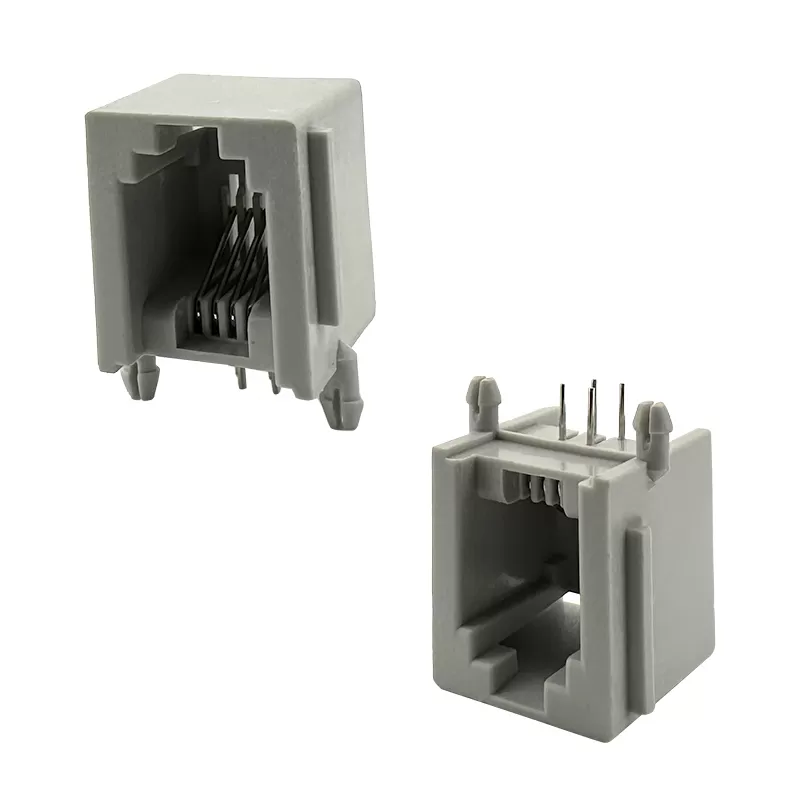

    RJ12-6P6C Jack:RHTLY24-6P6C

    RJ12-6P6C Jack:RHTLY24-6P6C

    Series P/N: RHTLY24-6P6C

    Modular jacks  is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of  Modular jacks. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Termination: Allows for easy termination of telephone cables using IDC (Insulation Displacement Connection) terminals or soldering, depending on the installation method preferred.

    -Design: Durable construction with gold-plated contacts for reliable signal transmission and longevity, ensuring clear audio transmission and signal integrity over standard telephone lines.

    -Versatility: Suitable for various applications where multi-line analog telephone connections or specific data connections using the RJ12 standard are needed, including homes, offices, industrial environments, and telecommunications infrastructure.

    -Signal Integrity: Maintains clear audio transmission and signal integrity over standard telephone lines, ensuring quality voice communication for multi-line telephony applications.


    Applications

    1.Multi-Line Telephony

    2.Analog Modem Connections

    3.Small Business Telephony

    4.Industrial Applications


    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze ∅0.46mm

    Plating:     Gold Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C


    Technical Documents

    Please contact us for more information.Features
