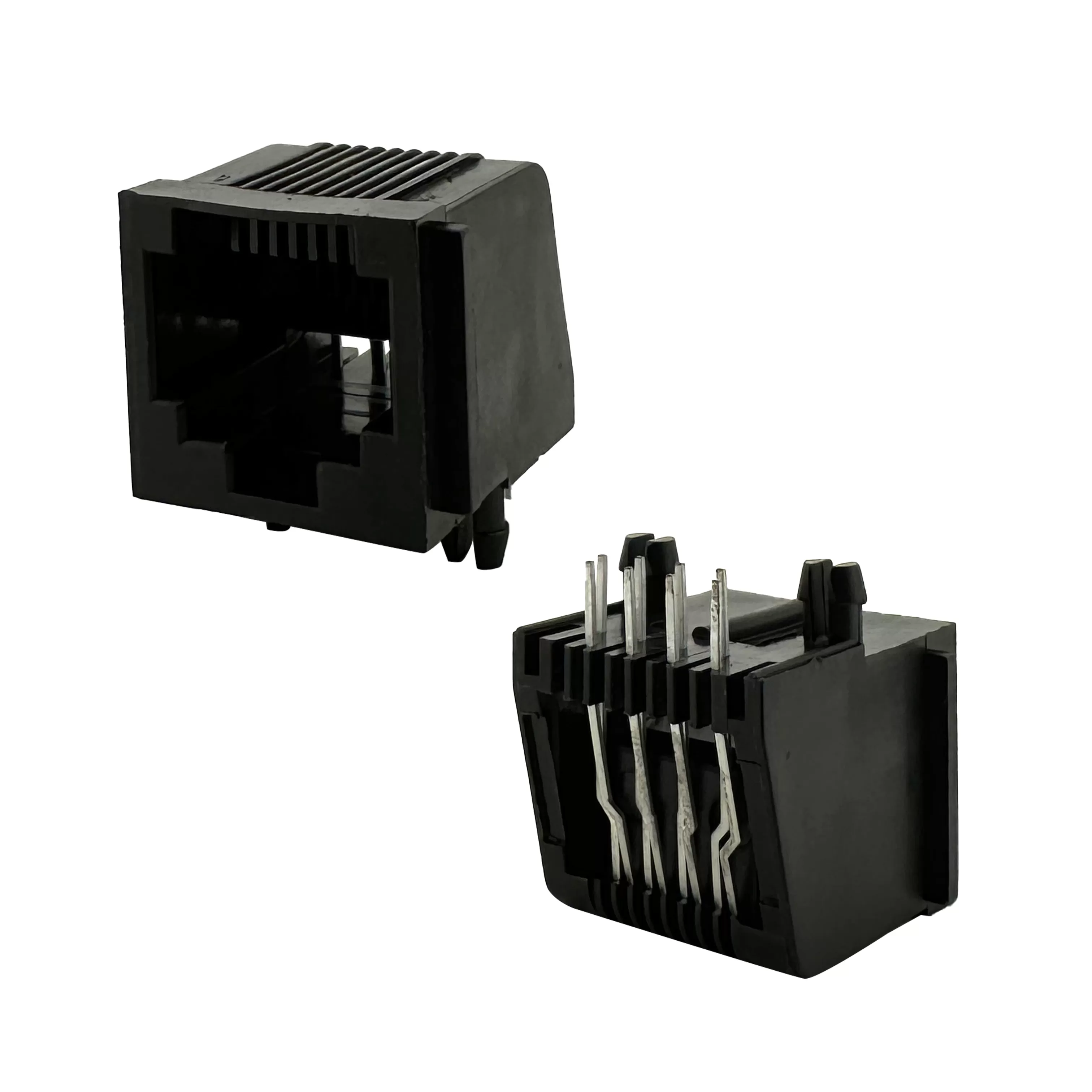

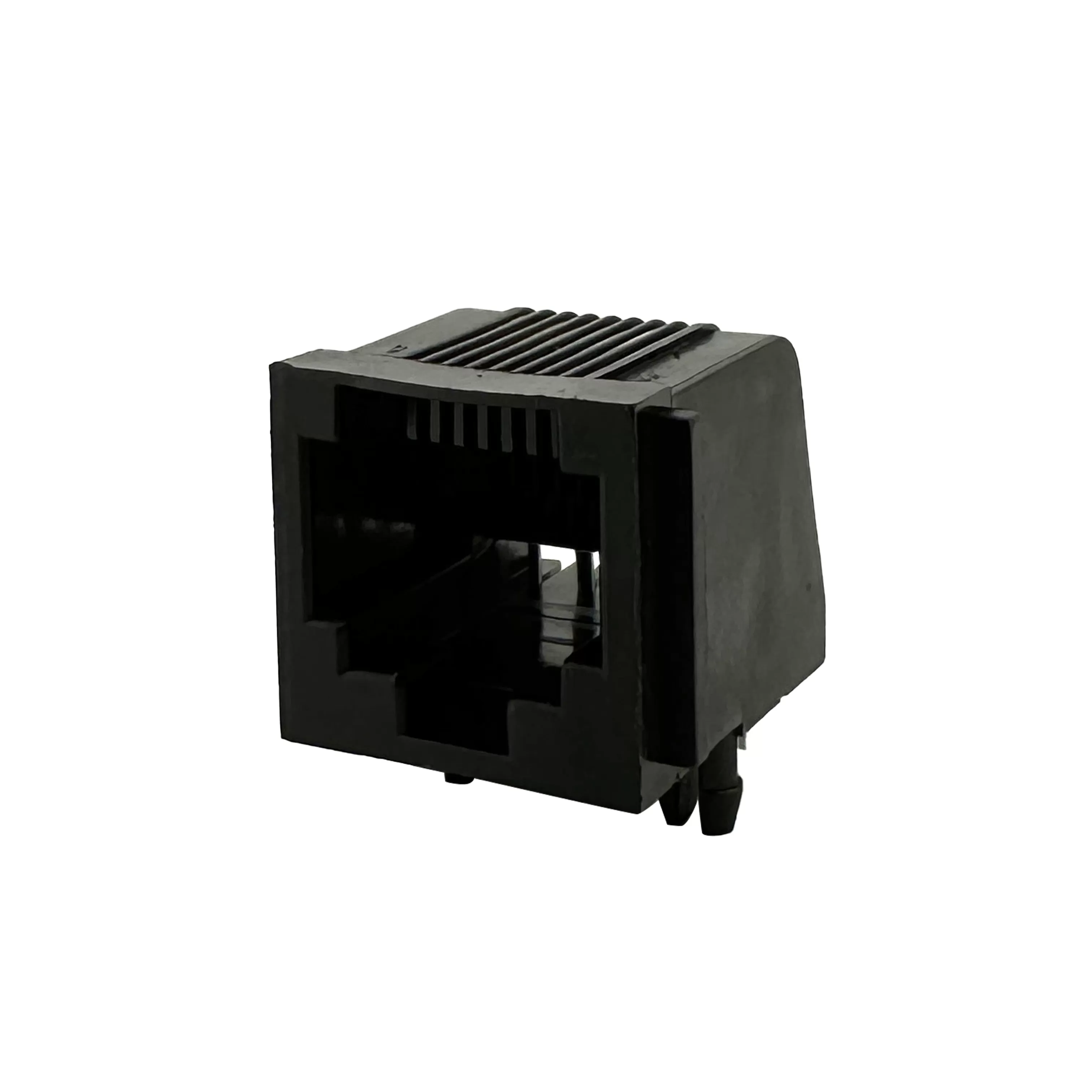

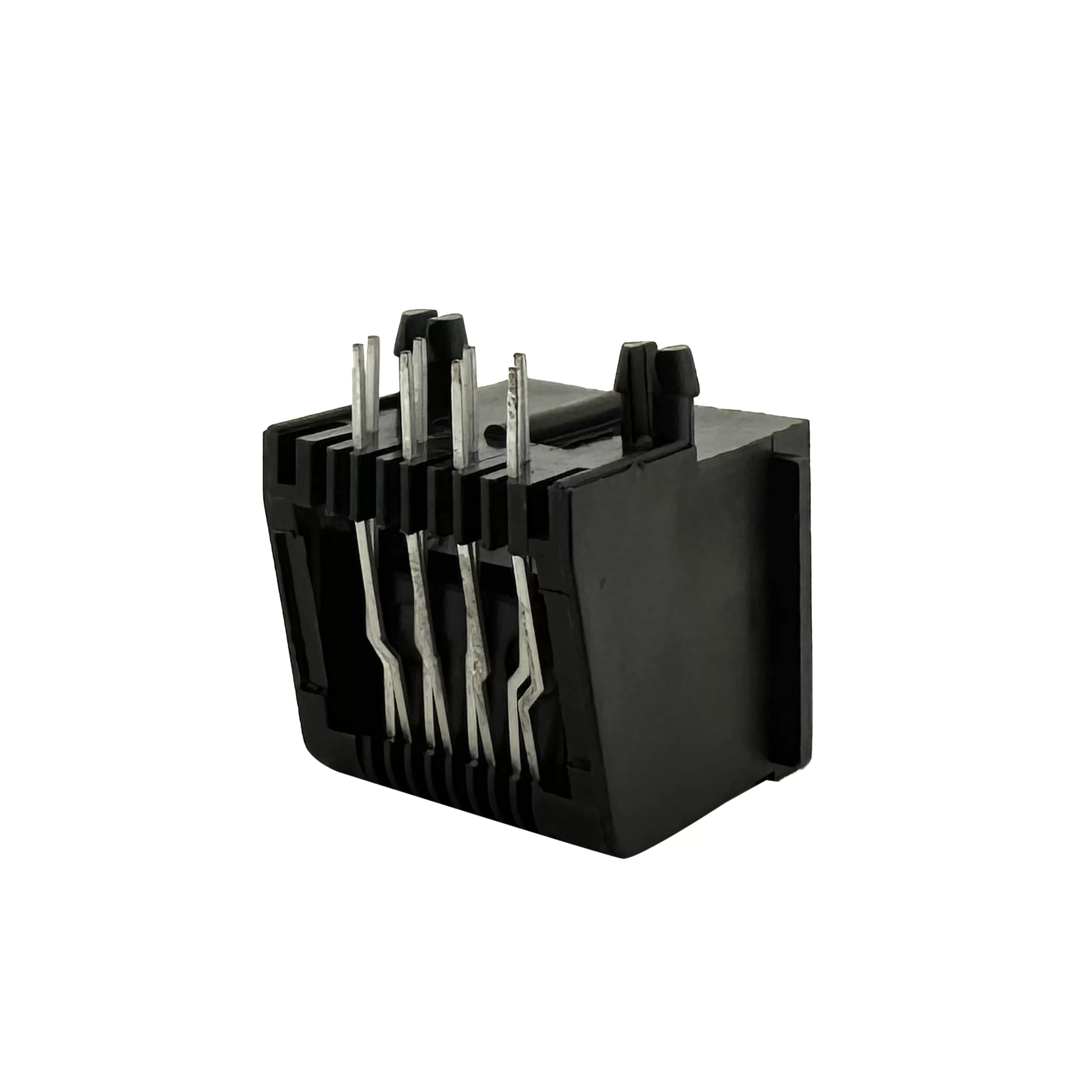

RJ12-6P6C Jack:RHTLY44-6P6C

Series P/N:RHTLY44-6P6C

Modular jacks is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Modular jacks. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Compatibility: Designed to accept standard RJ12 modular plugs, ensuring compatibility with various telecommunications devices, including multi-line telephones, analog modems, and certain networking equipment.

-Versatility: Suitable for various applications where multi-line analog telephone connections or specific data connections using the RJ12 standard are needed, including homes, offices, industrial environments, and telecommunications infrastructure.

-Connector Type: RJ12, which is similar to RJ11 but with a larger configuration to accommodate up to 6 conductors.

-Configuration: 6P6C (6 Position 6 Conductor), meaning it has 6 positions and 6 conductors (pins). This configuration is typically used for multi-line telephone connections and certain data applications that require additional conductors.

Applications

1.Multi-Line Telephony

2.Analog Modem Connections

3.Small Business Telephony

4.Industrial Applications

Specifications

Material:

Housing: PBT+Glass Filled Polyester

Flammability Rating : UL94V-0

Contacts: Phosphor Bronze

Plating: Gold Plating

Electrical:
