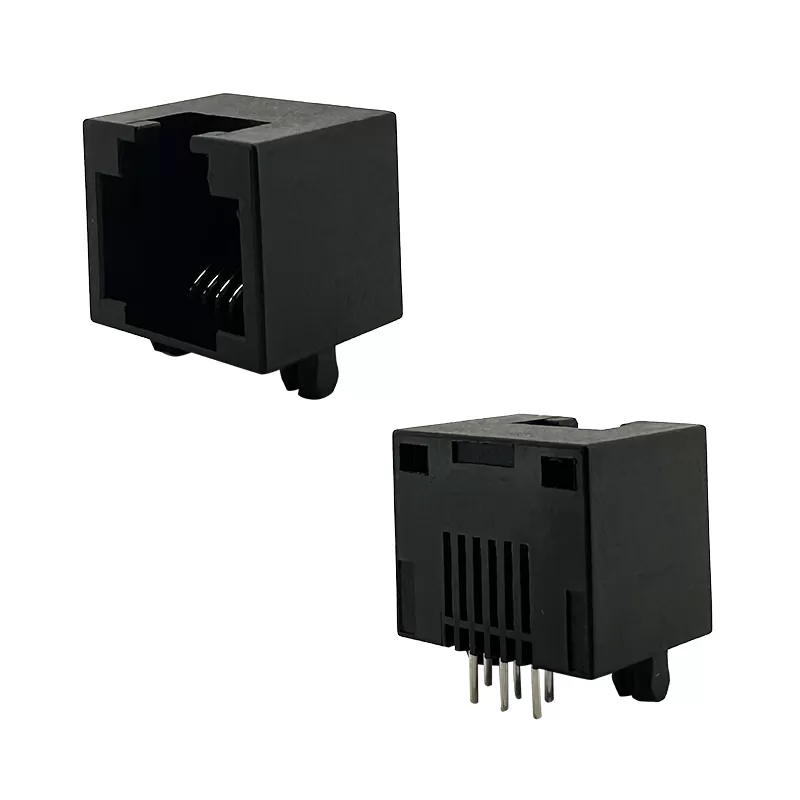

RJ12 6P6C Jack Vertical:RHTLY52-6P6C

Series P/N:RHTLY52-6P6C

Modular jacks is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Modular jacks. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Configuration: 6P6C (6 Position 6 Conductor), meaning it has 6 positions and 6 conductors (pins). This configuration is typically used for multi-line telephone connections or certain data applications.

-Compatibility: Designed to accept standard RJ12 modular plugs, ensuring compatibility with various telecommunications devices, including multi-line telephones, analog modems, and some networking equipment.

-Size and Orientation: Vertical orientation, designed to be mounted vertically on circuit boards (PCBs), telephone jacks, wall plates, and other telecom equipment.

-Termination: Allows for easy termination of telephone cables using IDC (Insulation Displacement Connection) terminals or soldering, depending on the installation method.

Applications

1.Multi-Line Telephony

2.Analog Modem Connections

3.Small Business Telephony

4.Data Networking

Specifications

Material:

Housing: Engineering Thermoplastic

Flammability Rating : UL94V-0

Contacts: Phosphor Bronze

Plating: Gold Plating Over Nickel in Contact.

Tin Plating Over Nickel in Solder Area.
