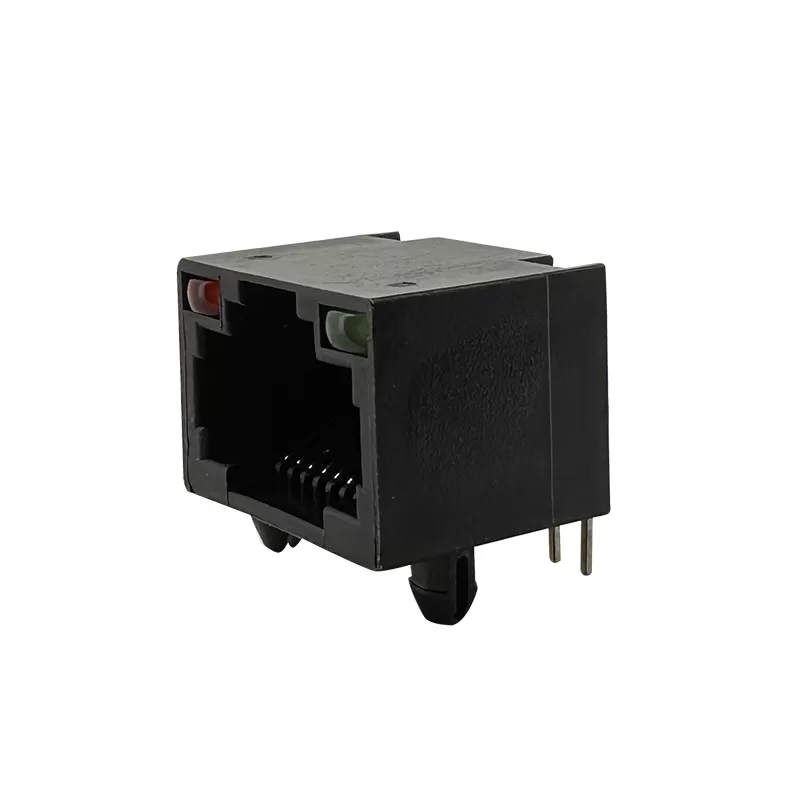

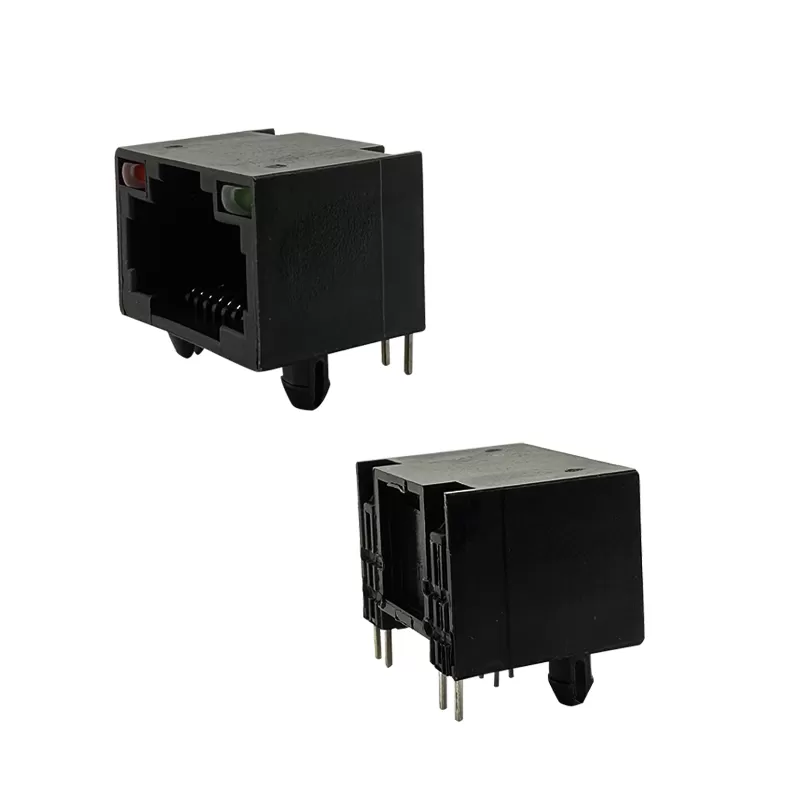

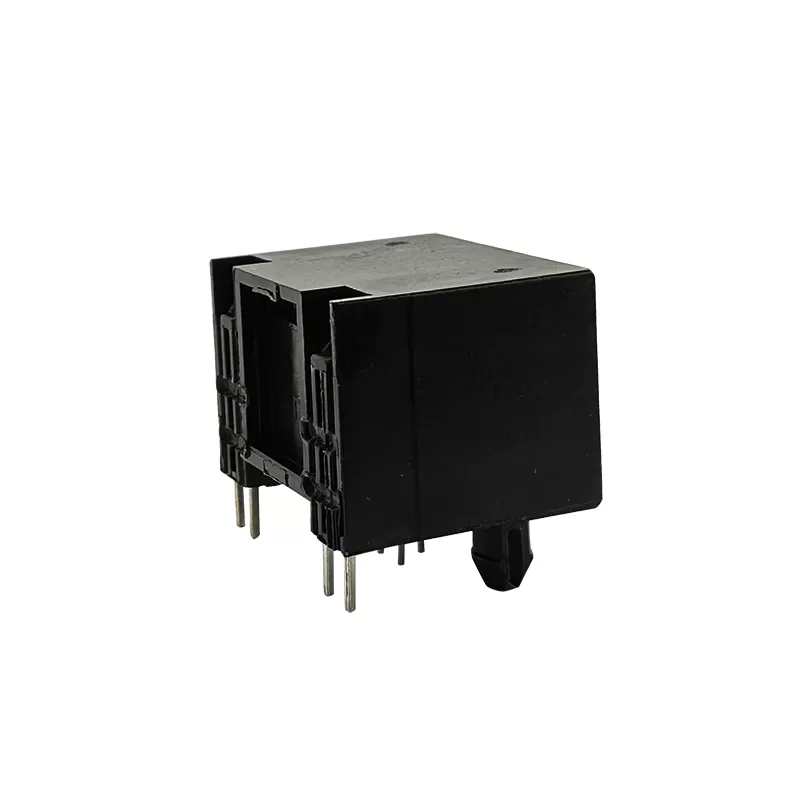

    RJ45-8P8C 1x1 Jack with LED:RHTLY15-8P8C1X1

    RJ45-8P8C 1x1 Jack with LED:RHTLY15-8P8C1X1

    Series P/N: RHTLY15-8P8C1X1

    Modular jacks  is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of  Modular jacks. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Connector Type: RJ45-8P8C refers to Registered Jack 45 with 8 positions and 8 contacts, accommodating Ethernet cables with eight conductors (8P8C) arranged in four pairs.

    -Enhanced Visibility: LED indicators enhance network visibility and troubleshooting by providing instant visual feedback on connection status, helping network administrators quickly identify network issues or performance problems.

    -Compatibility: Compatible with standard RJ45 plugs and Ethernet cables, ensuring interoperability with Cat5, Cat6, and Cat6a cables and supporting various network speeds and protocols.

    -Construction: Made from durable materials such as plastic and metal components, designed to withstand mechanical stress, frequent plugging and unplugging, and environmental factors.


    Applications

    1.Telecommunications and VoIP Systems

    2.Security and Surveillance Systems

    3.Residential Networking

    4.Educational and Training Environments


    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze ∅0.46mm

    Plating:     Gold Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C


    Technical Documents

    Please contact us for more information.Features
